pipapo_set删除elem过程浅析

前言

本篇文章仍然是服务于分析CVE-2023-4004.

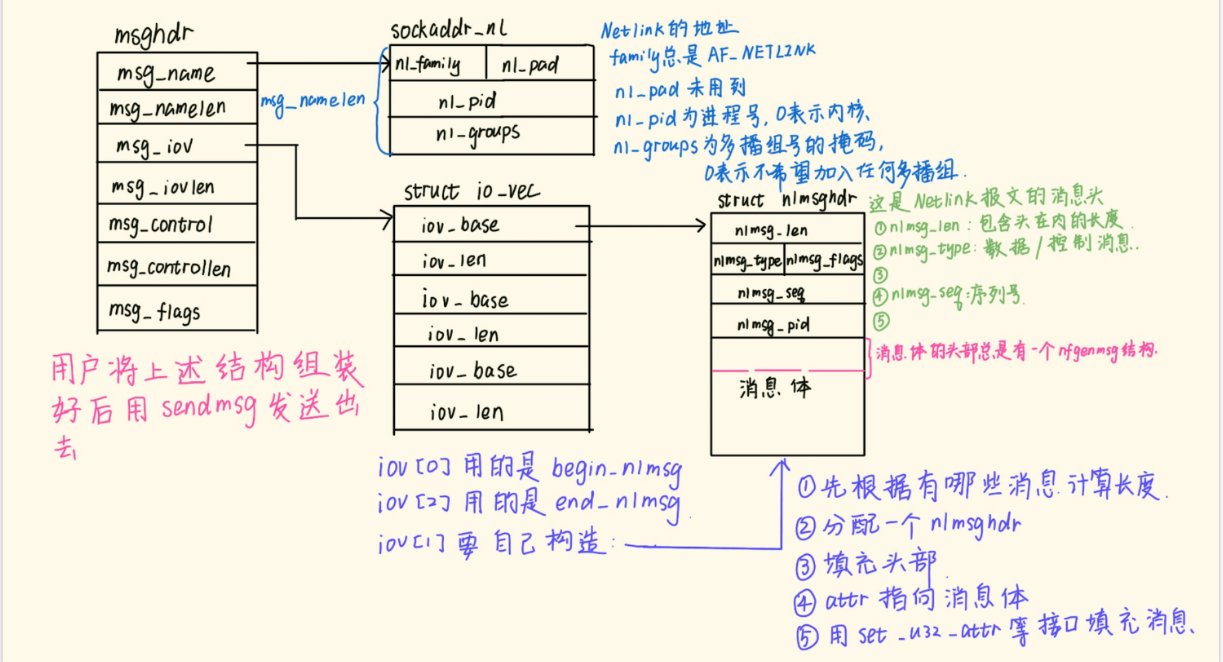

netlink处理消息过程

重点函数是nfnetlink_rcv_batch: https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nfnetlink.c#L365

static void nfnetlink_rcv_batch(struct sk_buff *skb, struct nlmsghdr *nlh,
				u16 subsys_id, u32 genid)
{
	struct sk_buff *oskb = skb;
	struct net *net = sock_net(skb->sk);
	const struct nfnetlink_subsystem *ss;
	const struct nfnl_callback *nc;
	struct netlink_ext_ack extack;
	LIST_HEAD(err_list);
	u32 status;
	int err;

    	if (subsys_id >= NFNL_SUBSYS_COUNT)
		return netlink_ack(skb, nlh, -EINVAL, NULL);
replay:
	status = 0;
replay_abort:
	skb = netlink_skb_clone(oskb, GFP_KERNEL);
	if (!skb)
		return netlink_ack(oskb, nlh, -ENOMEM, NULL);

	nfnl_lock(subsys_id);
	ss = nfnl_dereference_protected(subsys_id);
	if (!ss) {

	// 跳过一些看不懂的部分

	while (skb->len >= nlmsg_total_size(0)) {
		int msglen, type;

		if (fatal_signal_pending(current)) {
			nfnl_err_reset(&err_list);
			err = -EINTR;
			status = NFNL_BATCH_FAILURE;
			goto done;
		}

		memset(&extack, 0, sizeof(extack));
		nlh = nlmsg_hdr(skb);
		err = 0;

		if (nlh->nlmsg_len < NLMSG_HDRLEN ||
		    skb->len < nlh->nlmsg_len ||
		    nlmsg_len(nlh) < sizeof(struct nfgenmsg)) {
			nfnl_err_reset(&err_list);
			status |= NFNL_BATCH_FAILURE;
			goto done;
		}

		/* Only requests are handled by the kernel */
		if (!(nlh->nlmsg_flags & NLM_F_REQUEST)) {
			err = -EINVAL;
			goto ack;
		}

		type = nlh->nlmsg_type;
		if (type == NFNL_MSG_BATCH_BEGIN) {  //第一个iov是begin类型
			/* Malformed: Batch begin twice */
			nfnl_err_reset(&err_list);
			status |= NFNL_BATCH_FAILURE;
			goto done;
		} else if (type == NFNL_MSG_BATCH_END) { //最后一个iov是end类型
			status |= NFNL_BATCH_DONE;
			goto done;
		} else if (type < NLMSG_MIN_TYPE) {
			err = -EINVAL;
			goto ack;
		}

		/* We only accept a batch with messages for the same
		 * subsystem.
		 */
		if (NFNL_SUBSYS_ID(type) != subsys_id) {
			err = -EINVAL;
			goto ack;
		}

		nc = nfnetlink_find_client(type, ss); //中间的iov会走这个地方
		if (!nc) {
			err = -EINVAL;
			goto ack;
		}

		if (nc->type != NFNL_CB_BATCH) {
			err = -EINVAL;
			goto ack;
		}

		{
			int min_len = nlmsg_total_size(sizeof(struct nfgenmsg));
			struct nfnl_net *nfnlnet = nfnl_pernet(net);
			struct nlattr *cda[NFNL_MAX_ATTR_COUNT + 1];
			struct nlattr *attr = (void *)nlh + min_len;
			u8 cb_id = NFNL_MSG_TYPE(nlh->nlmsg_type);
			int attrlen = nlh->nlmsg_len - min_len;
			struct nfnl_info info = {
				.net	= net,
				.sk	= nfnlnet->nfnl,
				.nlh	= nlh,
				.nfmsg	= nlmsg_data(nlh),
				.extack	= &extack,
			};

			/* Sanity-check NFTA_MAX_ATTR */
			if (ss->cb[cb_id].attr_count > NFNL_MAX_ATTR_COUNT) {
				err = -ENOMEM;
				goto ack;
			}

			err = nla_parse_deprecated(cda,
						   ss->cb[cb_id].attr_count,
						   attr, attrlen,
						   ss->cb[cb_id].policy, NULL);
			if (err < 0)
				goto ack;

            //在这里会调用回调函数，比如nf_tables_newtable等
			err = nc->call(skb, &info, (const struct nlattr **)cda);

			/* The lock was released to autoload some module, we
			 * have to abort and start from scratch using the
			 * original skb.
			 */
			if (err == -EAGAIN) { //如果出错会带着err跳转到done，然后指向ss->abort
				status |= NFNL_BATCH_REPLAY;
				goto done;
			}
		}
ack:
		if (nlh->nlmsg_flags & NLM_F_ACK || err) {
			/* Errors are delivered once the full batch has been
			 * processed, this avoids that the same error is
			 * reported several times when replaying the batch.
			 */
			if (nfnl_err_add(&err_list, nlh, err, &extack) < 0) {
				/* We failed to enqueue an error, reset the
				 * list of errors and send OOM to userspace
				 * pointing to the batch header.
				 */
				nfnl_err_reset(&err_list);
				netlink_ack(oskb, nlmsg_hdr(oskb), -ENOMEM,
					    NULL);
				status |= NFNL_BATCH_FAILURE;
				goto done;
			}
			/* We don't stop processing the batch on errors, thus,
			 * userspace gets all the errors that the batch
			 * triggers.
			 */
			if (err)
				status |= NFNL_BATCH_FAILURE;
		}

		msglen = NLMSG_ALIGN(nlh->nlmsg_len);
		if (msglen > skb->len)
			msglen = skb->len;
		skb_pull(skb, msglen);
	}
done:
	if (status & NFNL_BATCH_REPLAY) {
		ss->abort(net, oskb, NFNL_ABORT_AUTOLOAD); //err
		nfnl_err_reset(&err_list);
		kfree_skb(skb);
		module_put(ss->owner);
		goto replay;
	} else if (status == NFNL_BATCH_DONE) {
		err = ss->commit(net, oskb);  //
		if (err == -EAGAIN) {
			status |= NFNL_BATCH_REPLAY;
			goto done;
		} else if (err) {
			ss->abort(net, oskb, NFNL_ABORT_NONE);
			netlink_ack(oskb, nlmsg_hdr(oskb), err, NULL);
		}
	} else {
		enum nfnl_abort_action abort_action;

		if (status & NFNL_BATCH_FAILURE)
			abort_action = NFNL_ABORT_NONE;
		else
			abort_action = NFNL_ABORT_VALIDATE;

		err = ss->abort(net, oskb, abort_action);
		if (err == -EAGAIN) {
			nfnl_err_reset(&err_list);
			kfree_skb(skb);
			module_put(ss->owner);
			status |= NFNL_BATCH_FAILURE;
			goto replay_abort;
		}
	}
	if (ss->cleanup)
		ss->cleanup(net);

	nfnl_err_deliver(&err_list, oskb);
	kfree_skb(skb);
	module_put(ss->owner);
}

总结：

正常处理中间的iov的过程中，会通过其type寻找对应的nc，然后调用其中的回调函数；

回调函数执行完之后，如果发生err了就会跳到done，然后调用ss->abort，然后还会继续执行下一个批处理；

如果全都正常执行完了，就会执行ss->commit;

删除一个setelem

首先会调用到nf_tables_delsetelem：

https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nf_tables_api.c#L6270

static int nf_tables_delsetelem(struct sk_buff *skb,
				const struct nfnl_info *info,
				const struct nlattr * const nla[])
{
	struct netlink_ext_ack *extack = info->extack;
	u8 genmask = nft_genmask_next(info->net);
	u8 family = info->nfmsg->nfgen_family;
	struct net *net = info->net;
	const struct nlattr *attr;
	struct nft_table *table;
	struct nft_set *set;
	struct nft_ctx ctx;
	int rem, err = 0;

	table = nft_table_lookup(net, nla[NFTA_SET_ELEM_LIST_TABLE], family,
				 genmask, NETLINK_CB(skb).portid);
	if (IS_ERR(table)) {
		NL_SET_BAD_ATTR(extack, nla[NFTA_SET_ELEM_LIST_TABLE]);
		return PTR_ERR(table);
	}

	set = nft_set_lookup(table, nla[NFTA_SET_ELEM_LIST_SET], genmask);
	if (IS_ERR(set))
		return PTR_ERR(set);
	if (!list_empty(&set->bindings) && set->flags & NFT_SET_CONSTANT)
		return -EBUSY;

	nft_ctx_init(&ctx, net, skb, info->nlh, family, table, NULL, nla);

	if (!nla[NFTA_SET_ELEM_LIST_ELEMENTS])
		return nft_set_flush(&ctx, set, genmask);

	nla_for_each_nested(attr, nla[NFTA_SET_ELEM_LIST_ELEMENTS], rem) {
		err = nft_del_setelem(&ctx, set, attr);
		if (err < 0)
			break;
	}
	return err;
}

然后调用到nft_del_setelem: https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nf_tables_api.c#L6103

static int nft_del_setelem(struct nft_ctx *ctx, struct nft_set *set,
			   const struct nlattr *attr)
{
	struct nlattr *nla[NFTA_SET_ELEM_MAX + 1];
	struct nft_set_ext_tmpl tmpl;
	struct nft_set_elem elem;
	struct nft_set_ext *ext;
	struct nft_trans *trans;
	u32 flags = 0;
	int err;

	err = nla_parse_nested_deprecated(nla, NFTA_SET_ELEM_MAX, attr,
					  nft_set_elem_policy, NULL);
	if (err < 0)
		return err;

	err = nft_setelem_parse_flags(set, nla[NFTA_SET_ELEM_FLAGS], &flags);
	if (err < 0)
		return err;

	if (!nla[NFTA_SET_ELEM_KEY] && !(flags & NFT_SET_ELEM_CATCHALL))
		return -EINVAL;

	nft_set_ext_prepare(&tmpl);

	if (flags != 0)
		nft_set_ext_add(&tmpl, NFT_SET_EXT_FLAGS);

	if (nla[NFTA_SET_ELEM_KEY]) {
		err = nft_setelem_parse_key(ctx, set, &elem.key.val,
					    nla[NFTA_SET_ELEM_KEY]);
		if (err < 0)
			return err;

		nft_set_ext_add_length(&tmpl, NFT_SET_EXT_KEY, set->klen);
	}

	if (nla[NFTA_SET_ELEM_KEY_END]) {
		err = nft_setelem_parse_key(ctx, set, &elem.key_end.val,
					    nla[NFTA_SET_ELEM_KEY_END]);
		if (err < 0)
			return err;

		nft_set_ext_add_length(&tmpl, NFT_SET_EXT_KEY_END, set->klen);
	}

	err = -ENOMEM;
    //分配一个elem
	elem.priv = nft_set_elem_init(set, &tmpl, elem.key.val.data,
				      elem.key_end.val.data, NULL, 0, 0,
				      GFP_KERNEL);
	if (elem.priv == NULL)
		goto fail_elem;

	ext = nft_set_elem_ext(set, elem.priv);
	if (flags)
		*nft_set_ext_flags(ext) = flags;

    //创建一个trans
	trans = nft_trans_elem_alloc(ctx, NFT_MSG_DELSETELEM, set);
	if (trans == NULL)
		goto fail_trans;

    /*
    	调用__nfts_setelem_deactivate(net, set, elem);
    		priv = set->ops->deactivate(net, set, elem);
    			pipapo_deactivate的作用是调用pipapo_get得到一个elem并返回
    		kfree(elem->priv);
    		elem->priv = priv;
    		set->ndeact++;
    	作用就是将elem->priv给释放掉并从链表中取下来，用pipapo_get得到的elem代替之；
    */
	err = nft_setelem_deactivate(ctx->net, set, &elem, flags);
	if (err < 0)
		goto fail_ops;

	//仅当set中有data或者objref的时候才有用
	nft_setelem_data_deactivate(ctx->net, set, &elem);

    //trans引用elem，并放到commit_list上
	nft_trans_elem(trans) = elem;
	nft_trans_commit_list_add_tail(ctx->net, trans);
	return 0;

fail_ops:
	kfree(trans);
fail_trans:
	kfree(elem.priv);
fail_elem:
	nft_data_release(&elem.key.val, NFT_DATA_VALUE);
	return err;
}

进入到ss->commit，也就是nf_tables_commit函数：

https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nf_tables_api.c#L8529

case NFT_MSG_DELSETELEM:
		te = (struct nft_trans_elem *)trans->data;

		nf_tables_setelem_notify(&trans->ctx, te->set,
					 &te->elem,
					 NFT_MSG_DELSETELEM);
		//最终会调用到set->ops->remove, 然后就是pipapo_remove了
		nft_setelem_remove(net, te->set, &te->elem);
		if (!nft_setelem_is_catchall(te->set, &te->elem)) {
			atomic_dec(&te->set->nelems);
			te->set->ndeact--;
		}
		break;
//......
nft_commit_notify(net, NETLINK_CB(skb).portid);
nf_tables_gen_notify(net, skb, NFT_MSG_NEWGEN);
nf_tables_commit_audit_log(&adl, nft_net->base_seq);
nf_tables_commit_release(net);

nf_tables_commit_release：其主要任务是通过schedule_work将trans_destroy_work提交上去：

static void nf_tables_commit_release(struct net *net)
{
	struct nftables_pernet *nft_net = nft_pernet(net);
	struct nft_trans *trans;

	/* all side effects have to be made visible.
	 * For example, if a chain named 'foo' has been deleted, a
	 * new transaction must not find it anymore.
	 *
	 * Memory reclaim happens asynchronously from work queue
	 * to prevent expensive synchronize_rcu() in commit phase.
	 */
	if (list_empty(&nft_net->commit_list)) {
		nf_tables_module_autoload_cleanup(net);
		mutex_unlock(&nft_net->commit_mutex);
		return;
	}

	trans = list_last_entry(&nft_net->commit_list,
				struct nft_trans, list);
	get_net(trans->ctx.net);
	WARN_ON_ONCE(trans->put_net);

	trans->put_net = true;
	spin_lock(&nf_tables_destroy_list_lock);
	list_splice_tail_init(&nft_net->commit_list, &nf_tables_destroy_list);
	spin_unlock(&nf_tables_destroy_list_lock);

	nf_tables_module_autoload_cleanup(net);
	schedule_work(&trans_destroy_work);

	mutex_unlock(&nft_net->commit_mutex);
}

关于schedule_work：https://zhuanlan.zhihu.com/p/363279693

之后会在什么时机调用trans_destroy_work呢？

static void nf_tables_trans_destroy_work(struct work_struct *w)
{
	struct nft_trans *trans, *next;
	LIST_HEAD(head);

	spin_lock(&nf_tables_destroy_list_lock);
	list_splice_init(&nf_tables_destroy_list, &head);
	spin_unlock(&nf_tables_destroy_list_lock);

	if (list_empty(&head))
		return;

	synchronize_rcu();

	list_for_each_entry_safe(trans, next, &head, list) {
		list_del(&trans->list);
		nft_commit_release(trans);
	}
}

case NFT_MSG_DELSETELEM:
	nf_tables_set_elem_destroy(&trans->ctx,
				   nft_trans_elem_set(trans),
				   nft_trans_elem(trans).priv);
	break;

最后在nf_tables_set_elem_destroy函数中释放掉elem：

static void nf_tables_set_elem_destroy(const struct nft_ctx *ctx,
				       const struct nft_set *set, void *elem)
{
	struct nft_set_ext *ext = nft_set_elem_ext(set, elem);

	if (nft_set_ext_exists(ext, NFT_SET_EXT_EXPRESSIONS))
		nft_set_elem_expr_destroy(ctx, nft_set_ext_expr(ext));

	kfree(elem);
}

总结

nfnetlink_rcv_batch：
	begin...
	nc->call ==> nf_tables_delsetelem
		nft_del_setelem
			//根据传入的参数先构造一个elem
			//然后通过pipapo_get找到真的elem，并释放掉原来构造的elem
			//set->ndeact++
	end...
	ss->commit ==> nf_tables_commit
		//......
		case NFT_MSG_DELSETELEM:
			nft_setelem_remove
				pipapo_remove //修改pipapo_match的各field的lt和mt，作用是将elem从set中清除
			atomic_dec(&te->set->nelems);
			te->set->ndeact--；
			nf_tables_commit_release(net);
				schedule_work(&trans_destroy_work);
		//......

//......
	trans_destroy_work
		list_for_each_entry_safe(trans, next, &head, list) {
			list_del(&trans->list);
			nft_commit_release(trans);
				case NFT_MSG_DELSETELEM:
					nf_tables_set_elem_destroy
						kfree(elem)

		}


参考

https://196082.github.io/2024/09/03/nftables-CVEs1/

https://zhuanlan.zhihu.com/p/363279693
